NSP90L-CHFRKW (2008)

Toyota Yaris (Frp)

Production Nov 2008 - Jul 2011
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 7(0811- )FRP

ENGINE ROOM

diagram 28610 28850 82620A 82621A 85928B 85959A 89428 9009140602 90119W0059 90119W0115 9167180610
Part # Description Qty Price
28850 - SENSOR ASSY, BATTERY CURRENT
28850-40020

1KRFE,1N#..KSP90,NLP90,NSP90..FRP

 1
82620A - BLOCK ASSY, FUSIBLE LINK
82620-52050

KSP90,NSP90..FRP..(5F,6F)

 1
82621A - COVER, FUSIBLE LINK
82621-52120

KSP90,NSP90..FRP

 1
85928B - RESISTOR, COOLING FAN
85928-52040

KSP90,NLP90,NSP90..FRP..TRSTD

FRONT AIR CONDITIONER-MANUAL

 1
85928-52040

KSP90,NLP90,NSP90..FRP..TRSTD

FRONT AIR CONDITIONER-DEALER KIT

 1
Common parts
90091-40602 None epc.PartDetail.None
90119-W0059 None epc.PartDetail.None
90119-W0115 None epc.PartDetail.None
91671-80610 None epc.PartDetail.None

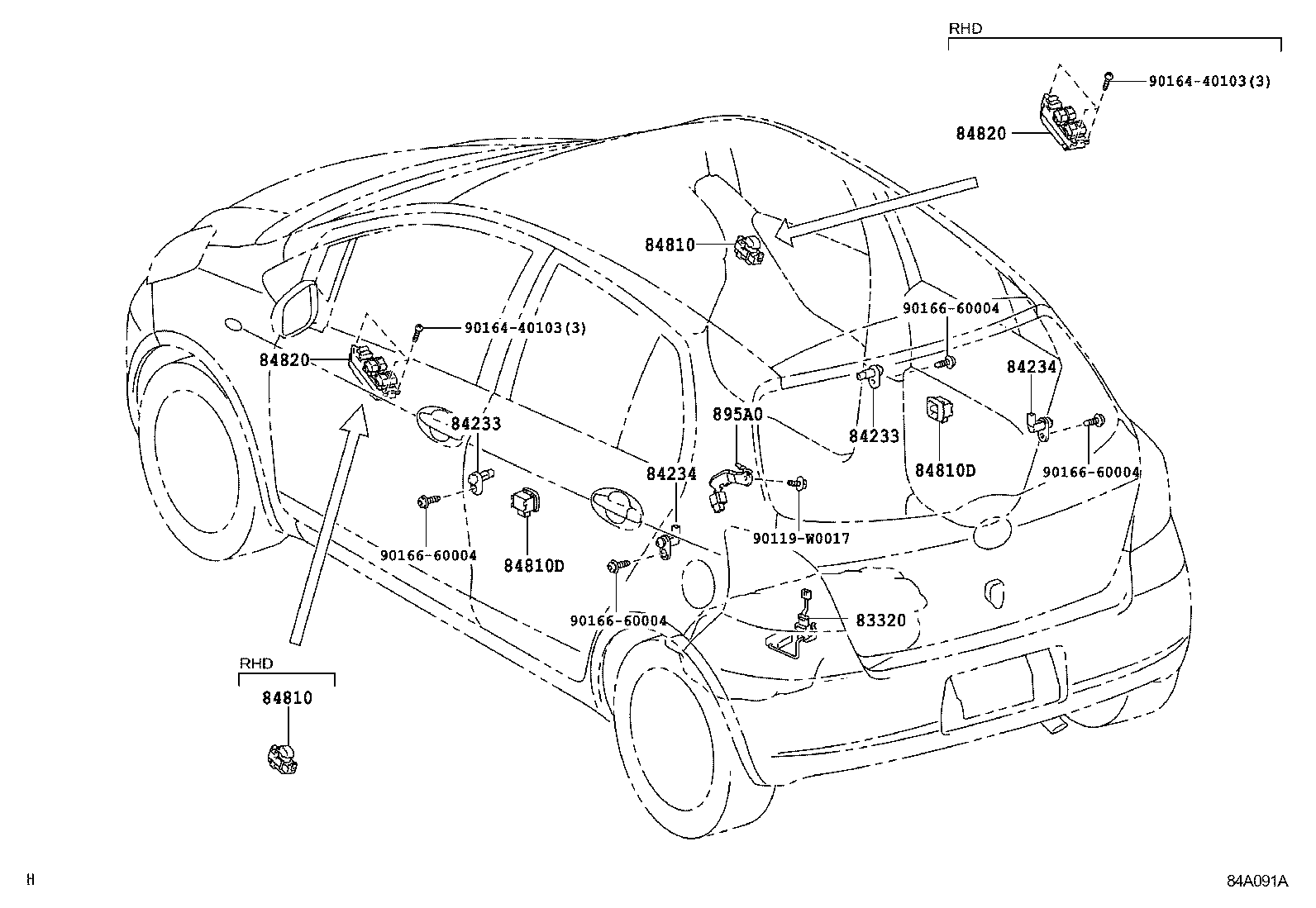

ILLUST NO. 7 OF 7(0811- )FRP

DOOR,ROOF,FLOOR & LAGGAGE

diagram 83320 84233 84233 84234 84234 84810 84810 84810D 84810D 84820 84820 895A0 90119W0017 9016440103 9016440103 9016660004 9016660004 9016660004 9016660004
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-0D051

KSP90,NLP90,NSP90..FRP

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-0D030

KSP90,NLP90,NSP90..FRP

 2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-0D030

KSP90,NLP90,NSP90..FRP

 2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-0D040

KSP90,NLP90,NSP90..FRP..5D

 2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-0D040

KSP90,NLP90,NSP90..FRP..5D

 2
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-0D030

KSP90,NLP90,NSP90..FRP

 1
84810-0D030

KSP90,NLP90,NSP90..FRP..TRSTD

POWER WINDOW-W/O

 1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-0D030

KSP90,NLP90,NSP90..FRP

 1
84810-0D030

KSP90,NLP90,NSP90..FRP..TRSTD

POWER WINDOW-W/O

 1
895A0 - RELAY ASSY, STOP LAMP CONTROL
895A0-52011

KSP90,NLP90,NSP90..FRP

 1
Common parts
90119-W0017 None epc.PartDetail.None
90164-40103 None epc.PartDetail.None
90166-60004 None epc.PartDetail.None

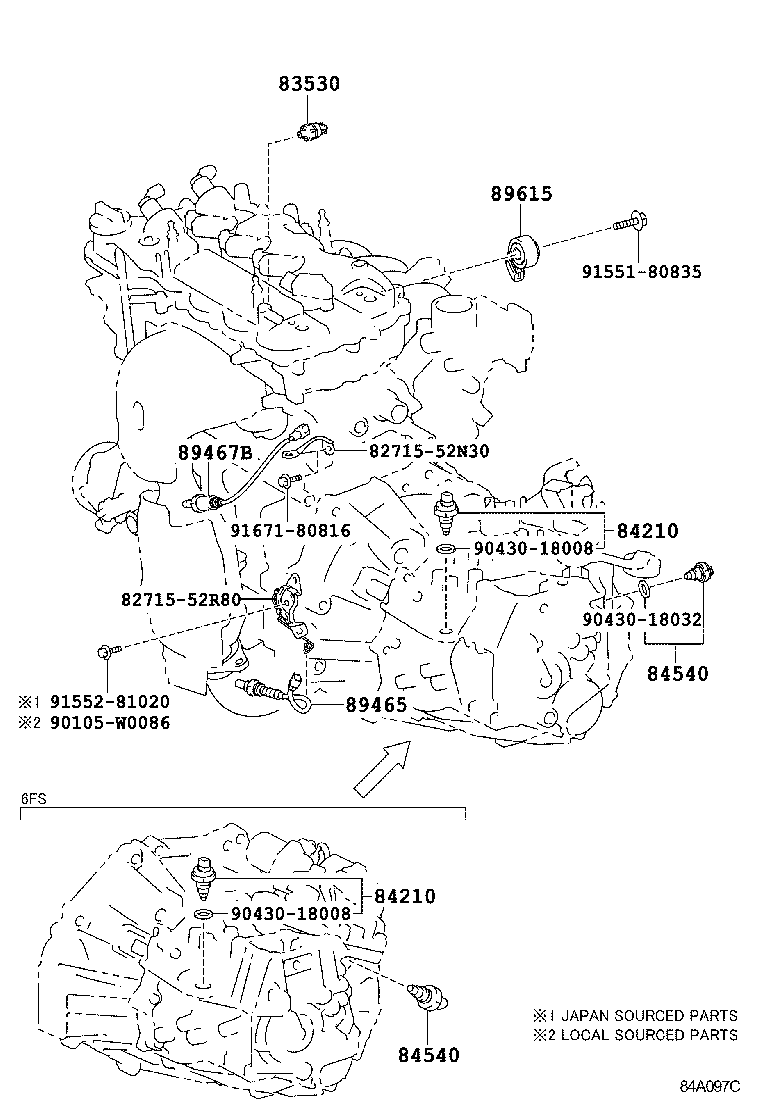

ILLUST NO. 1 OF 7(0811- )NSP90..FRP

ENGINE & TRANSMISSION

diagram 8271552N30 8271552R80 83530 84210 84210 84540 84540 89465 89467B 89615 90105W0086 9043018008 9043018008 9043018032 9155180835 9155281020 9167180816
Part # Description Qty Price
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-05010

KSP90,NSP90..FRP

(L)

 1
83530-60020

KSP90,NSP90..FRP

(J),YAZAKI

 1
83530-28020

KSP90,NSP90..FRP

(J),DENSO

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040

NLP90,NSP90..FRP

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040

NLP90,NSP90..FRP

 1
84540 - SWITCH ASSY, NEUTRAL START
84545-20021

NSP90..FRP..6F

 1
84545-20020

NSP90..FRP..6F

 1
84545-20020

NSP90..FRP..6F

ENGINE-WITHOUT(STOP & START SYSTEM)

 1
84545-20021

NSP90..FRP..6F

ENGINE-WITHOUT(STOP & START SYSTEM)

 1
84540 - SWITCH ASSY, NEUTRAL START
84545-20021

NSP90..FRP..6F

 1
84545-20020

NSP90..FRP..6F

 1
84545-20020

NSP90..FRP..6F

ENGINE-WITHOUT(STOP & START SYSTEM)

 1
84545-20021

NSP90..FRP..6F

ENGINE-WITHOUT(STOP & START SYSTEM)

 1
89465 - SENSOR, OXYGEN
89465-52540

NSP90..FRP

 1
89467B - SENSOR, AIR FUEL RATIO
89467-52070

NSP90..FRP

 1
89467-52090

NSP90..FRP

 1
89615 - SENSOR, KNOCK CONTROL
89615-20090

NSP90..FRP

 1
Common parts
82715-52N30 None epc.PartDetail.None
82715-52R80 None epc.PartDetail.None
90105-W0086 None epc.PartDetail.None
90430-18008 None epc.PartDetail.None
90430-18032 None epc.PartDetail.None
91551-80835 None epc.PartDetail.None
91552-81020 None epc.PartDetail.None
91671-80816 None epc.PartDetail.None

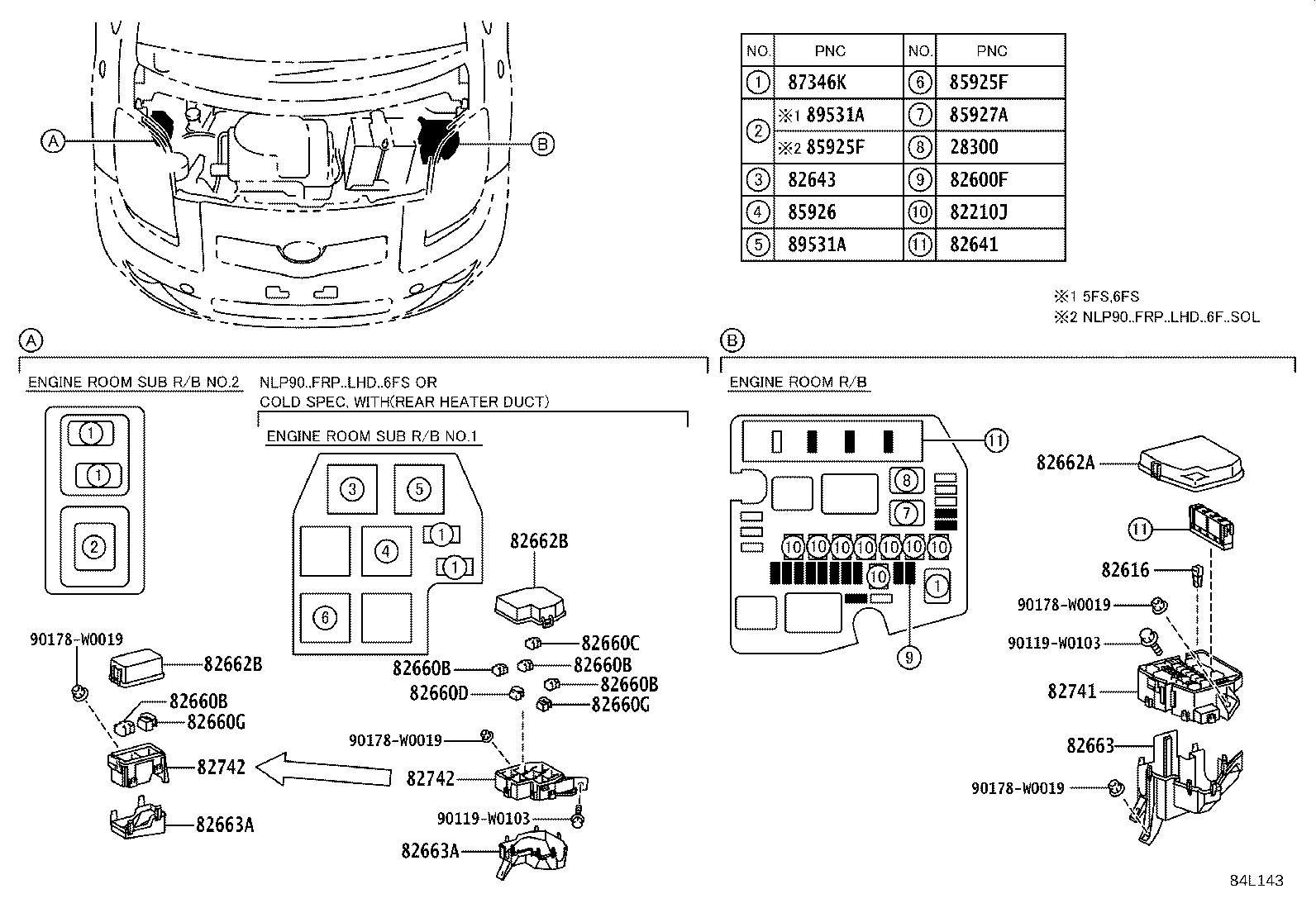

ILLUST NO. 3 OF 7(0811- )FRP

ENGINE ROOM RELAY BLOCK

diagram 28300 82210J 82600F 82616 82641 82643 82660B 82660B 82660B 82660B 82660C 82660D 82660G 82660G 82662A 82662B 82662B 82663 82663A 82663A 82741 82742 82742 85925F 85925F 85926 85927A 87346K 89531A 89531A 90119W0103 90119W0103 90178W0019 90178W0019 90178W0019 90178W0019
Part # Description Qty Price
28300 - RELAY ASSY, STARTER
28300-47020

1NRFE..NSP90..FRP..6F

 1
82210J - FUSIBLE LINK
90982-08295

KSP90,NLP90,NSP90..FRP

30A,TERM.:FEMALE,PNK

 1
90982-08296

KSP90,NLP90,NSP90..FRP

50A,TERM.:FEMALE,RED

 1
90982-08294

KSP90,NLP90,NSP90..FRP

40A,TERM.:FEMALE,GRN

 1
82600F - FUSE, FUSE BLOCK
90080-82050

KSP90,NLP90,NSP90..FRP

7.5A,MINI FUSE,BROWN,ENGINE ROOM R/B

 1
90080-82054

KSP90,NLP90,NSP90..FRP

30A,MINI FUSE,GREEN,ENGINE ROOM R/B

 1
90982-09020

KSP90,NLP90,NSP90..FRP

7.5A,MINI FUSE,BROWN,INSTRUMENT PANEL J/B

 1
90080-82051

KSP90,NLP90,NSP90..FRP

10A,MINI FUSE,RED,ENGINE ROOM R/B

 1
90080-82053

KSP90,NLP90,NSP90..FRP

20A,MINI FUSE,YELLOW,ENGINE ROOM R/B

 1
90982-09022

KSP90,NLP90,NSP90..FRP

15A,MINI FUSE,BLUE,INSTRUMENT PANEL J/B

 1
90982-09021

KSP90,NLP90,NSP90..FRP

10A,MINI FUSE,RED,INSTRUMENT PANEL J/B

 1
90080-82052

KSP90,NLP90,NSP90..FRP

15A,MINI FUSE,BLUE,ENGINE ROOM R/B

 1
90982-09023

KSP90,NLP90,NSP90..FRP

20A,MINI FUSE,YELLOW,INSTRUMENT PANEL J/B

 1
90982-09024

KSP90,NLP90,NSP90..FRP

25A,MINI FUSE,INSTRUMENT PANEL J/B

 1
82616 - PULLER, FUSE
82616-58010

KSP90,NLP90,NSP90..FRP

 1
82641 - RELAY, INTEGRATION NO.1
82641-47020

KSP90,NLP90,NSP90..FRP

 1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-52580

NSP90..FRP..6F

 1
82663 - COVER, RELAY BLOCK, LOWER
82663-0D020

KSP90,NLP90,NSP90..FRP

 1
82741 - BLOCK, ENGINE ROOM RELAY
82741-0D030

KSP90,NLP90,NSP90..FRP

 1
85927A - RELAY, COOLING FAN, NO.2
90987-04004

KSP90,NLP90,NSP90..FRP

FRONT AIR CONDITIONER-DEALER KIT,(J)

 1
90080-87012

KSP90,NLP90,NSP90..FRP

(L)

 1
90080-87020

KSP90,NLP90,NSP90..FRP

(L)

 1
Common parts
90119-W0103 None epc.PartDetail.None
90178-W0019 None epc.PartDetail.None
