NSP90L-CHFRKW (2008)

Toyota Yaris (Frp)

Production Nov 2008 - Jul 2011
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )NSP90..FRP

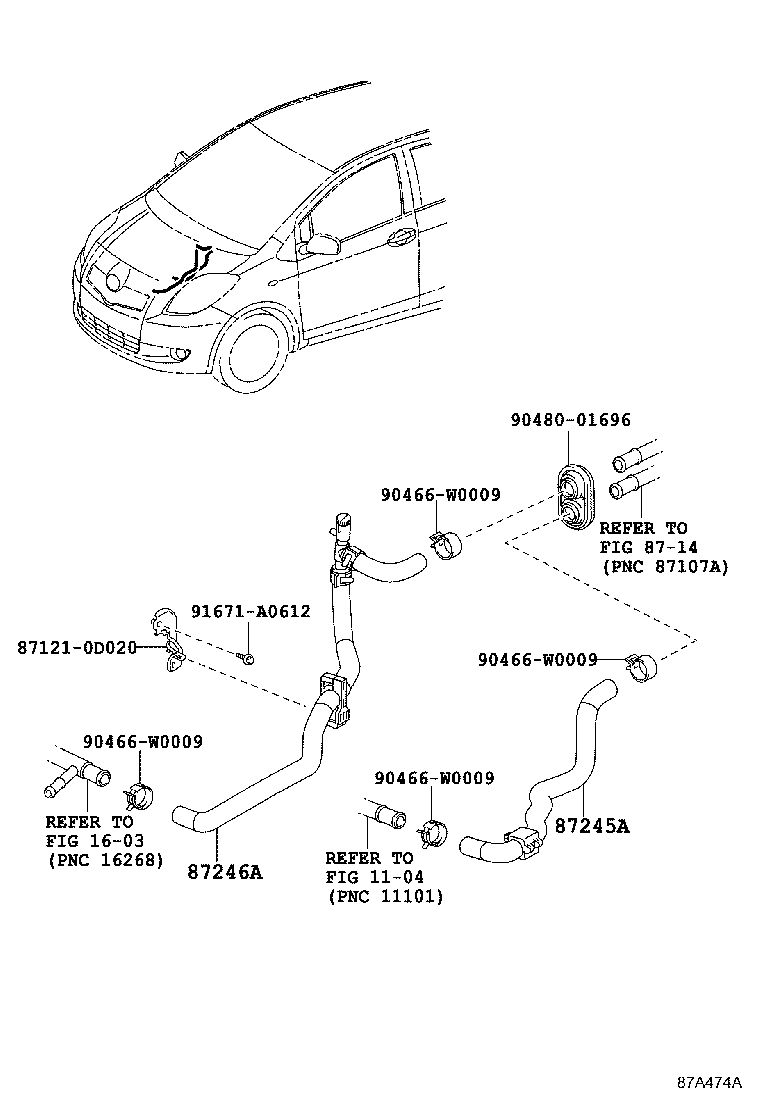

Click highlighted areas on diagram

diagram 1104 1603 871210D020 8714 87245A 87246A 90466W0009 90466W0009 90466W0009 90466W0009 9048001696 91671A0612
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87209-0D140

NSP90..FRP

 1
87209-0D140

NSP90..FRP..LHD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
87209-0D140

NSP90..FRP..LHD

RUSSIA SPEC&COLD SPEC, WITH(REAR HEATER DUCT)

 1
87209-0D141

NSP90..FRP..LHD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
87209-0D141

NSP90..FRP..LHD

RUSSIA SPEC&COLD SPEC, WITH(REAR HEATER DUCT)

 1
87209-0D141

NSP90..FRP

 1
87246A - HOSE, HEATER WATER, OUTLET A
87209-0D150

NSP90..FRP..LHD

RUSSIA SPEC&COLD SPEC, WITH(REAR HEATER DUCT)

 1
87209-0D150

NSP90..FRP

 1
87209-0D160

NSP90..FRP..LHD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
Common parts
87121-0D020
90466-W0009
90480-01696
91671-A0612
Linked diagrams
1104
1603
8714

(0811- )NSP90..FRP..LHD

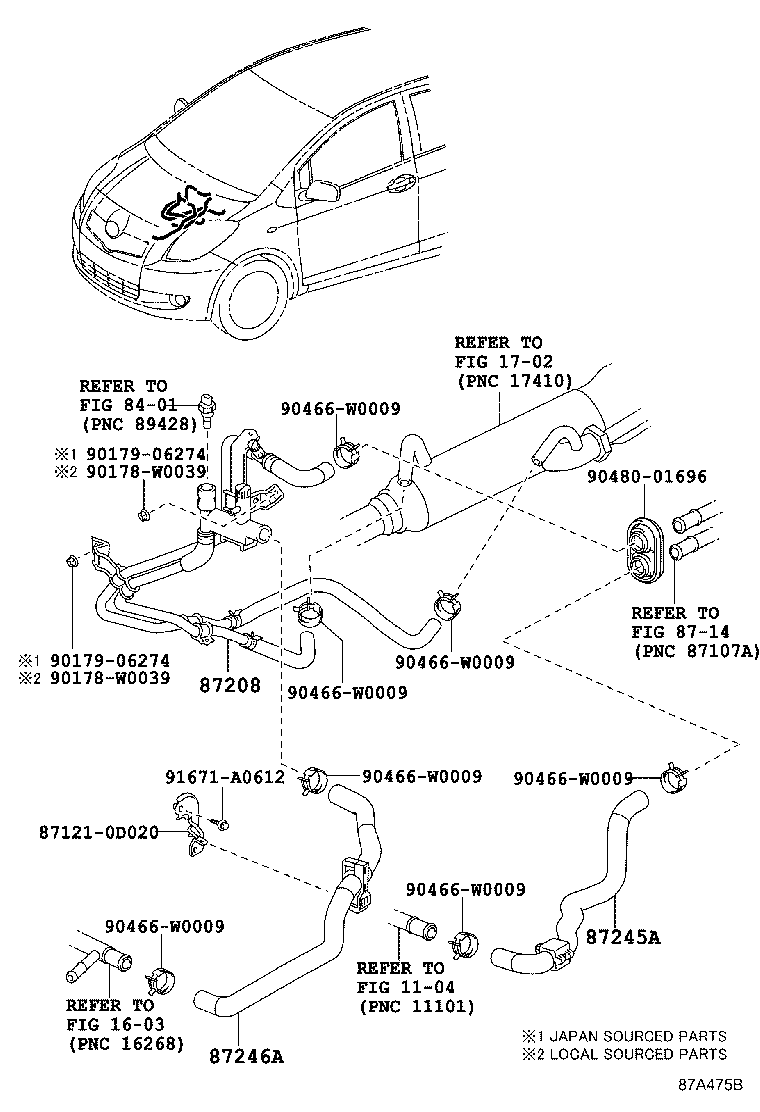

Click highlighted areas on diagram

W(EXHAUST HEATER)

diagram 1104 1603 1702 8401 871210D020 8714 87208 87245A 87246A 90178W0039 90178W0039 9017906274 9017906274 90466W0009 90466W0009 90466W0009 90466W0009 90466W0009 90466W0009 90466W0009 9048001696 91671A0612
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-0D010

NSP90..FRP..LHD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
87245A - HOSE, HEATER WATER, INLET A
87209-0D140

NSP90..FRP

 1
87209-0D140

NSP90..FRP..LHD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
87209-0D140

NSP90..FRP..LHD

RUSSIA SPEC&COLD SPEC, WITH(REAR HEATER DUCT)

 1
87209-0D141

NSP90..FRP..LHD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
87209-0D141

NSP90..FRP..LHD

RUSSIA SPEC&COLD SPEC, WITH(REAR HEATER DUCT)

 1
87209-0D141

NSP90..FRP

 1
87246A - HOSE, HEATER WATER, OUTLET A
87209-0D150

NSP90..FRP..LHD

RUSSIA SPEC&COLD SPEC, WITH(REAR HEATER DUCT)

 1
87209-0D150

NSP90..FRP

 1
87209-0D160

NSP90..FRP..LHD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
Common parts
87121-0D020
90178-W0039
90179-06274
90466-W0009
90480-01696
91671-A0612
Linked diagrams
1104
1603
1702
8401
8714
