NSP90L-CHFRKW (2008)

Toyota Yaris (Frp)

Production Nov 2008 - Jul 2011
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )NSP90..FRP..LHD..6F

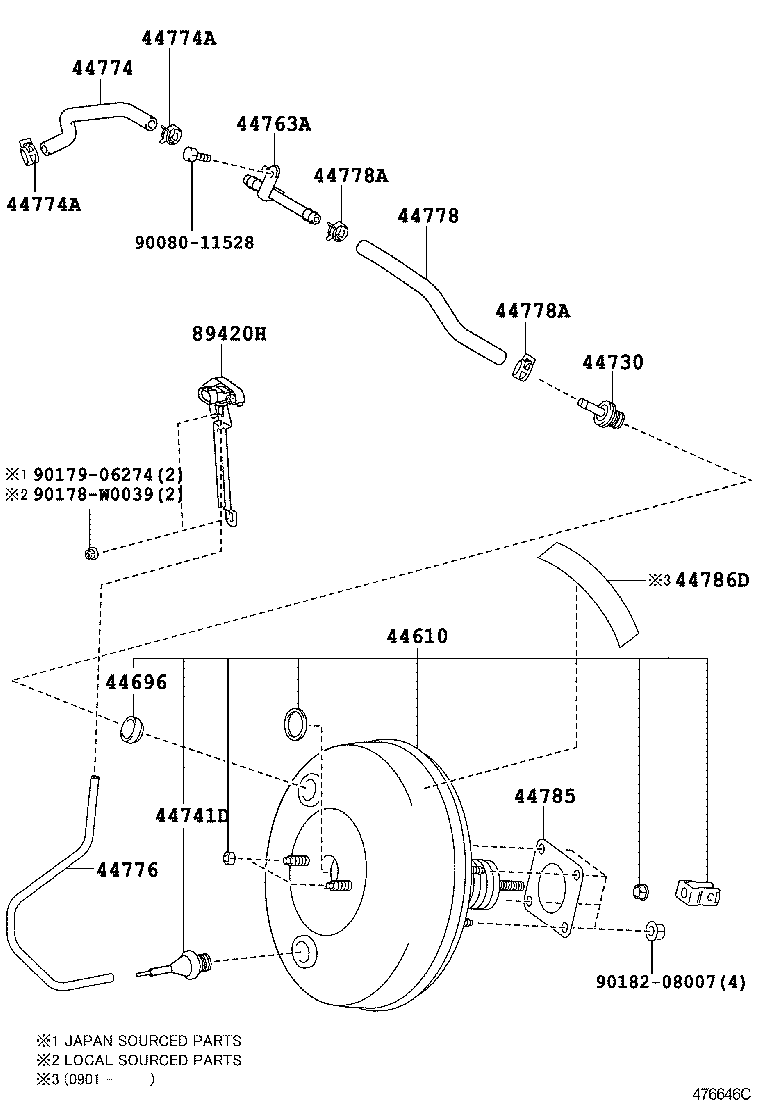

Click highlighted areas on diagram

diagram 44610 44696 44730 44741D 44763A 44774 44774A 44774A 44776 44778 44778A 44778A 44785 44786D 89420H 9008011528 90178W0039 9017906274 9018208007
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-09220

NSP90..FRP..LHD..6F

ENGINE-WITHOUT(STOP & START SYSTEM)

 1
44610-09230

NSP90..FRP..LHD..6F

ENGINE-WITHOUT(STOP & START SYSTEM)&VSC-WITH

 1
44610-09550

NSP90..FRP..LHD..6F

VSC-WITH

 1
44610-09540

NSP90..FRP..LHD..6F

 1
44696 - GROMMET, CHECK VALVE
44692-0D020

KSP90,NLP90,NSP90..FRP

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-0D010

KSP90,NLP90,NSP90..FRP

 1
44741D - BODY, VACUUM CHECK VALVE
44741-0D030

NSP90..FRP..6F

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-52100

NSP90..FRP..LHD

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-52120

NSP90..FRP..LHD

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

NLP90,NSP90..FRP

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

NLP90,NSP90..FRP

 2
44776 - HOSE, BRAKE BOOSTER
44776-52120

NSP90..FRP..LHD..6F

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-52090

NSP90..FRP..LHD

 1
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16014

NLP90,NSP90..FRP

 2
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16014

NLP90,NSP90..FRP

 2
44785 - GASKET, BRAKE BOOSTER
44785-16020

KSP90,NLP90,NSP90..FRP

 1
44786D - PROTECTOR, BRAKE BOOSTER
44786-0D010

KSP90,NLP90,NSP90..FRP..LHD

 1
89420H - SENSOR ASSY, VACUUM
89420-52060

NSP90..FRP..LHD..6F

 1
89420-52060

NSP90..FRP..LHD..6F

ENGINE-WITHOUT(STOP & START SYSTEM)

 1
Common parts
90080-11528
90178-W0039
90179-06274
90182-08007
