NLP90R-CHGGXW (2005)
Toyota Yaris (Frp)

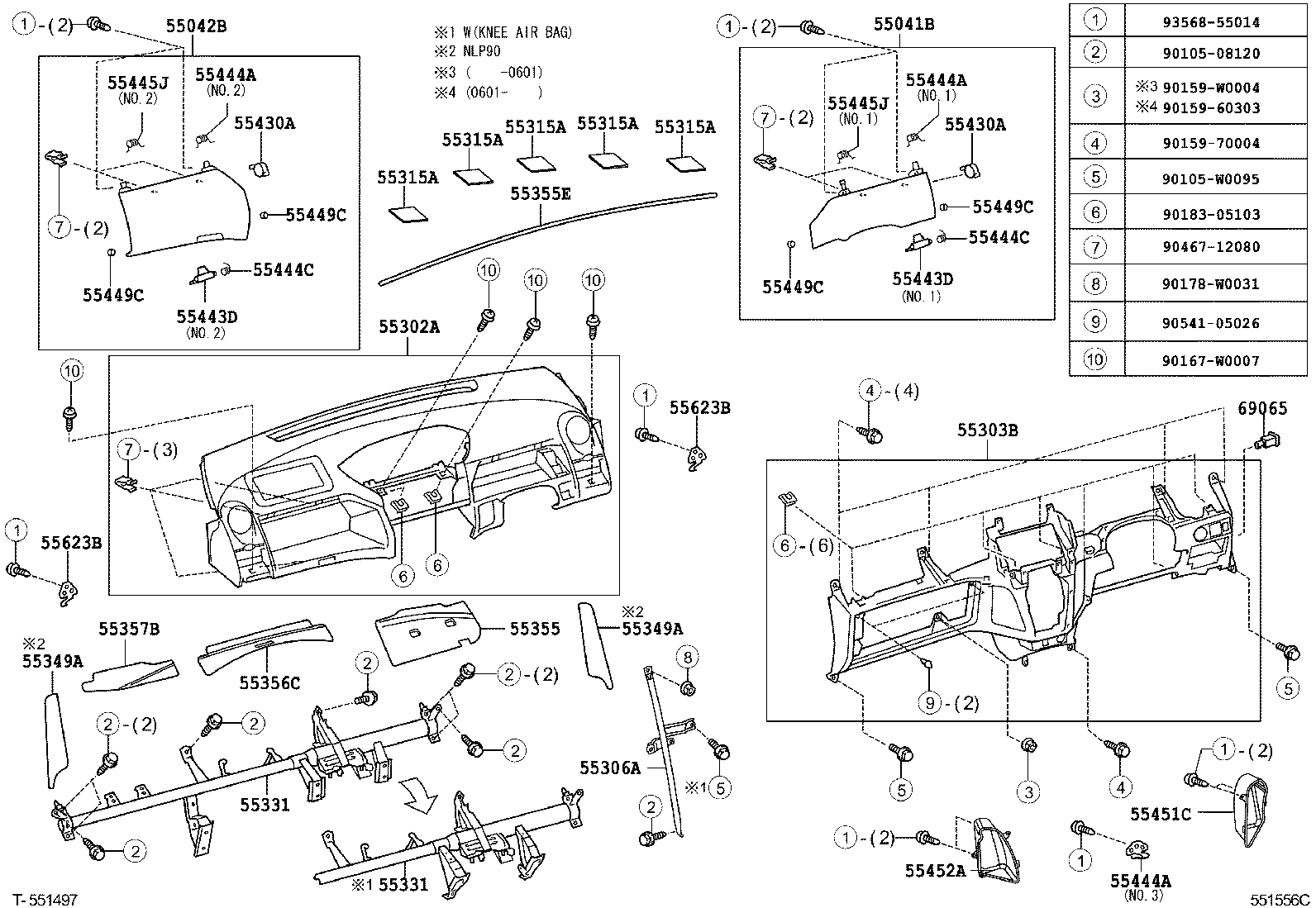

ILLUST NO. 1 OF 2(0511-0811)FRP..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 | ||||
| 55041-0D020B0 |
KSP90,NLP90,SCP90..FRP..RHD DK.GRAY,TRIM1# |
1 | ||
| 55042B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2 | ||||
| 55042-0D020B0 |
KSP90,NLP90,SCP90..FRP..RHD DK.GRAY,TRIM1# |
1 | ||
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-0D030B0 |
KSP90,NLP90,SCP90..FRP..RHD DK.GRAY,TRIM1# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-0D070B0 |
KSP90,NLP90,SCP90..FRP..RHD DK.GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-0D100 |
KSP90,NLP90,SCP90..FRP..RHD..SOL |
1 | ||
| 55306-0D090 |
KSP90,NLP90,SCP90..FRP..RHD..SOL SRS AIR BAG-*DRP & SIDE(WITHOUT/CURTAIN & KNEE) |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-05050 |
KSP90,NLP90,SCP90..FRP |
5 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-05050 |
KSP90,NLP90,SCP90..FRP |
5 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-05050 |
KSP90,NLP90,SCP90..FRP |
5 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-05050 |
KSP90,NLP90,SCP90..FRP |
5 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-05050 |
KSP90,NLP90,SCP90..FRP |
5 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-0D220 |
KSP90,NLP90,SCP90..FRP..RHD..SOL |
1 | ||
| 55330-0D190 |
KSP90,NLP90,SCP90..FRP..RHD..SOL SRS AIR BAG-*DRP & SIDE(WITHOUT/CURTAIN & KNEE) |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-0D220 |
KSP90,NLP90,SCP90..FRP..RHD..SOL |
1 | ||
| 55330-0D190 |
KSP90,NLP90,SCP90..FRP..RHD..SOL SRS AIR BAG-*DRP & SIDE(WITHOUT/CURTAIN & KNEE) |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-0D080 |
NLP90..FRP |
2 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-0D080 |
NLP90..FRP |
2 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-0D060 |
NLP90..FRP |
1 | ||
| 55355E - CUSHION, INSTRUMENT PANEL | ||||
| 55355-0D030 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-0D070 |
NLP90..FRP |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-0D090 |
NLP90..FRP |
2 | ||
| 55430A - DAMPER ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55430-52020 |
KSP90,NLP90,SCP90..FRP |
2 | ||
| 55430A - DAMPER ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55430-52020 |
KSP90,NLP90,SCP90..FRP |
2 | ||
| 55443D - KNOB, INSTRUMENT PANEL BOX DOOR | ||||
| 55443-0D040B0 |
KSP90,NLP90,SCP90..FRP..RHD DK.GRAY,TRIM1#,NO.1 |
1 | ||
| 55443-0D060B0 |
KSP90,NLP90,SCP90..FRP..RHD DK.GRAY,TRIM1#,NO.2 |
1 | ||
| 55443D - KNOB, INSTRUMENT PANEL BOX DOOR | ||||
| 55443-0D040B0 |
KSP90,NLP90,SCP90..FRP..RHD DK.GRAY,TRIM1#,NO.1 |
1 | ||
| 55443-0D060B0 |
KSP90,NLP90,SCP90..FRP..RHD DK.GRAY,TRIM1#,NO.2 |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-0D130 |
KSP90,NLP90,SCP90..FRP NO.2 |
1 | ||
| 55444-0D120 |
KSP90,NLP90,SCP90..FRP NO.1 |
1 | ||
| 55444-0D170 |
KSP90,NLP90,SCP90..FRP NO.3 |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-0D130 |
KSP90,NLP90,SCP90..FRP NO.2 |
1 | ||
| 55444-0D120 |
KSP90,NLP90,SCP90..FRP NO.1 |
1 | ||
| 55444-0D170 |
KSP90,NLP90,SCP90..FRP NO.3 |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-0D130 |
KSP90,NLP90,SCP90..FRP NO.2 |
1 | ||
| 55444-0D120 |
KSP90,NLP90,SCP90..FRP NO.1 |
1 | ||
| 55444-0D170 |
KSP90,NLP90,SCP90..FRP NO.3 |
1 | ||
| 55444C - SPRING, INSTRUMENT PANEL BOX | ||||
| 55478-0D010 |
KSP90,NLP90,SCP90..FRP..RHD |
1 | ||
| 55444C - SPRING, INSTRUMENT PANEL BOX | ||||
| 55478-0D010 |
KSP90,NLP90,SCP90..FRP..RHD |
1 | ||
| 55445J - SPRING, INSTRUMENT PANEL BOX | ||||
| 55445-0D070 |
KSP90,NLP90,SCP90..FRP NO.1 |
1 | ||
| 55445-0D080 |
KSP90,NLP90,SCP90..FRP NO.2 |
1 | ||
| 55445J - SPRING, INSTRUMENT PANEL BOX | ||||
| 55445-0D070 |
KSP90,NLP90,SCP90..FRP NO.1 |
1 | ||
| 55445-0D080 |
KSP90,NLP90,SCP90..FRP NO.2 |
1 | ||
| 55449C - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2 | ||||
| 55449-28020 |
KSP90,NLP90,SCP90..FRP |
4 | ||
| 55449C - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2 | ||||
| 55449-28020 |
KSP90,NLP90,SCP90..FRP |
4 | ||
| 55449C - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2 | ||||
| 55449-28020 |
KSP90,NLP90,SCP90..FRP |
4 | ||
| 55449C - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2 | ||||
| 55449-28020 |
KSP90,NLP90,SCP90..FRP |
4 | ||
| 55451C - BOX, INSTRUMENT PANEL, NO.1 | ||||
| 55451-0D040B0 |
KSP90,NLP90,SCP90..FRP..RHD DK.GRAY,TRIM1# |
1 | ||
| 55452A - BOX, INSTRUMENT PANEL, NO.2 | ||||
| 55452-0D040B0 |
KSP90,NLP90,SCP90..FRP..RHD DK.GRAY,TRIM1# |
1 | ||
| 55623B - SPRING, INSTRUMENT PANEL CUP HOLDER | ||||
| 55623-0D010 |
KSP90,NLP90,SCP90..FRP |
2 | ||
| 55623B - SPRING, INSTRUMENT PANEL CUP HOLDER | ||||
| 55623-0D010 |
KSP90,NLP90,SCP90..FRP |
2 | ||
| 69065 - CYLINDER SUB-ASSY, AIR BAG CUT OFF SW | ||||
| 69065-52030 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 69065-0D010 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90105-W0095 | ||||
| 90159-60303 | ||||
| 90159-70004 | ||||
| 90159-W0004 | ||||
| 90167-W0007 | ||||
| 90178-W0031 | ||||
| 90183-05103 | ||||
| 90467-12080 | ||||
| 90541-05026 | ||||
| 93568-55014 | ||||
ILLUST NO. 2 OF 2(0511- )FRP..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55249A - SEAL, FRONT PANEL | ||||
| 55249-52010 |
KSP90,NLP90,SCP90..FRP..RHD..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-0D050 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-0D050 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-0D260B0 |
NLP90,SCP90..FRP AUDIO-RADIOLESS 4SPEAKER,LT.SILVER,TRIM1# |
1 | ||
| 55405-0D260B0 |
NLP90,SCP90..FRP AUDIO-RADIOLESS 6SPEAKER,LT.SILVER,TRIM1# |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-0D190B0 |
KSP90,NLP90,SCP90..FRP LT.SILVER,TRIM1# |
1 | ||
| 55406-0D190B0 |
KSP90,NLP90,SCP90..FRP..SOL FRONT AIR CONDITIONER-AUTO,LT.SILVER,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-0D090B0 |
KSP90,NLP90,SCP90..FRP DK.GRAY,TRIM1# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-0D010B0 |
NLP90,SCP90..FRP AUDIO-RADIOLESS 4SPEAKER,DK.GRAY,TRIM1# |
1 | ||
| 55435-0D010B0 |
NLP90,SCP90..FRP AUDIO-RADIOLESS 6SPEAKER,DK.GRAY,TRIM1# |
1 | ||
| 55435-0D020B0 |
KSP90,NLP90,SCP90..FRP DK.GRAY,TRIM1# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-0D010B0 |
NLP90,SCP90..FRP AUDIO-RADIOLESS 4SPEAKER,DK.GRAY,TRIM1# |
1 | ||
| 55435-0D010B0 |
NLP90,SCP90..FRP AUDIO-RADIOLESS 6SPEAKER,DK.GRAY,TRIM1# |
1 | ||
| 55435-0D020B0 |
KSP90,NLP90,SCP90..FRP DK.GRAY,TRIM1# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-0D020B0 |
KSP90,NLP90,SCP90..FRP DK.GRAY,TRIM1# |
1 | ||
| 55436-0D010B0 |
NLP90,SCP90..FRP AUDIO-RADIOLESS 6SPEAKER,DK.GRAY,TRIM1# |
1 | ||
| 55436-0D010B0 |
NLP90,SCP90..FRP AUDIO-RADIOLESS 4SPEAKER,DK.GRAY,TRIM1# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-0D020B0 |
KSP90,NLP90,SCP90..FRP DK.GRAY,TRIM1# |
1 | ||
| 55436-0D010B0 |
NLP90,SCP90..FRP AUDIO-RADIOLESS 6SPEAKER,DK.GRAY,TRIM1# |
1 | ||
| 55436-0D010B0 |
NLP90,SCP90..FRP AUDIO-RADIOLESS 4SPEAKER,DK.GRAY,TRIM1# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-0D080B0 |
KSP90,NLP90,SCP90..FRP..RHD DK.GRAY,TRIM1# |
1 | ||
| 55453D - PAD, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55453-52060 |
KSP90,NLP90,SCP90..FRP..RHD..SOL SRS AIR BAG-*DRP & SIDE(WITHOUT/CURTAIN & KNEE) |
1 | ||
| 55454B - PAD, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55454-52050 |
KSP90,NLP90,SCP90..FRP..RHD..SOL SRS AIR BAG-*DRP & SIDE(WITHOUT/CURTAIN & KNEE) |
1 | ||
| 55468C - SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55468-52010 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-05030 |
NLP90,SCP90..FRP AUDIO-RADIOLESS 6SPEAKER |
2 | ||
| 55521-05030 |
NLP90,SCP90..FRP AUDIO-RADIOLESS 4SPEAKER |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-05030 |
NLP90,SCP90..FRP AUDIO-RADIOLESS 6SPEAKER |
2 | ||
| 55521-05030 |
NLP90,SCP90..FRP AUDIO-RADIOLESS 4SPEAKER |
2 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52040B0 |
KSP90,NLP90,SCP90..FRP..RHD..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),DK.GRAY,TRIM1# |
1 | ||
| 55539-52040B0 |
KSP90,NLP90,SCP90..FRP..RHD DK.GRAY,TRIM1# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-0D070B0 |
KSP90,NLP90,SCP90..FRP..RHD DK.GRAY,TRIM1# |
1 | ||
| 55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55618-52040B0 |
KSP90,NLP90,SCP90..FRP DK.GRAY,TRIM1#,(J) |
1 | ||
| 55618-0D011B0 |
KSP90,NLP90,SCP90..FRP DK.GRAY,TRIM1#,(L) |
1 | ||
| 55604B - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55619-0D011B0 |
KSP90,NLP90,SCP90..FRP DK.GRAY,TRIM1#,(L) |
1 | ||
| 55619-52020B0 |
KSP90,NLP90,SCP90..FRP DK.GRAY,TRIM1#,(J) |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-0D020 |
KSP90,NLP90,SCP90..FRP..RHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-0D020 |
KSP90,NLP90,SCP90..FRP..RHD..SOL |
1 | ||
| 55611 - TRAY, INSTRUMENT PANEL UNDER | ||||
| 55611-0D100B0 |
KSP90,NLP90,SCP90..FRP..RHD..SOL SRS AIR BAG-*DRP & SIDE(WITHOUT/CURTAIN & KNEE),DK.GRAY,TRIM1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0D070B0 |
KSP90,NLP90,SCP90..FRP DK.GRAY,TRIM1# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0D070B0 |
KSP90,NLP90,SCP90..FRP DK.GRAY,TRIM1# |
2 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-0D010B0 |
KSP90,NLP90,SCP90..FRP GRAY,TRIM1# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-0D020B0 |
KSP90,NLP90,SCP90..FRP..RHD..SOL DK.GRAY,TRIM1# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-0D010 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-0D010 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90119-W0127 | ||||
| 90167-W0007 | ||||
| 90467-12080 | ||||
| 90468-05135 | ||||
| 93568-55014 | ||||
