NLP90R-CHFGXW (2008)
Toyota Yaris (Frp)

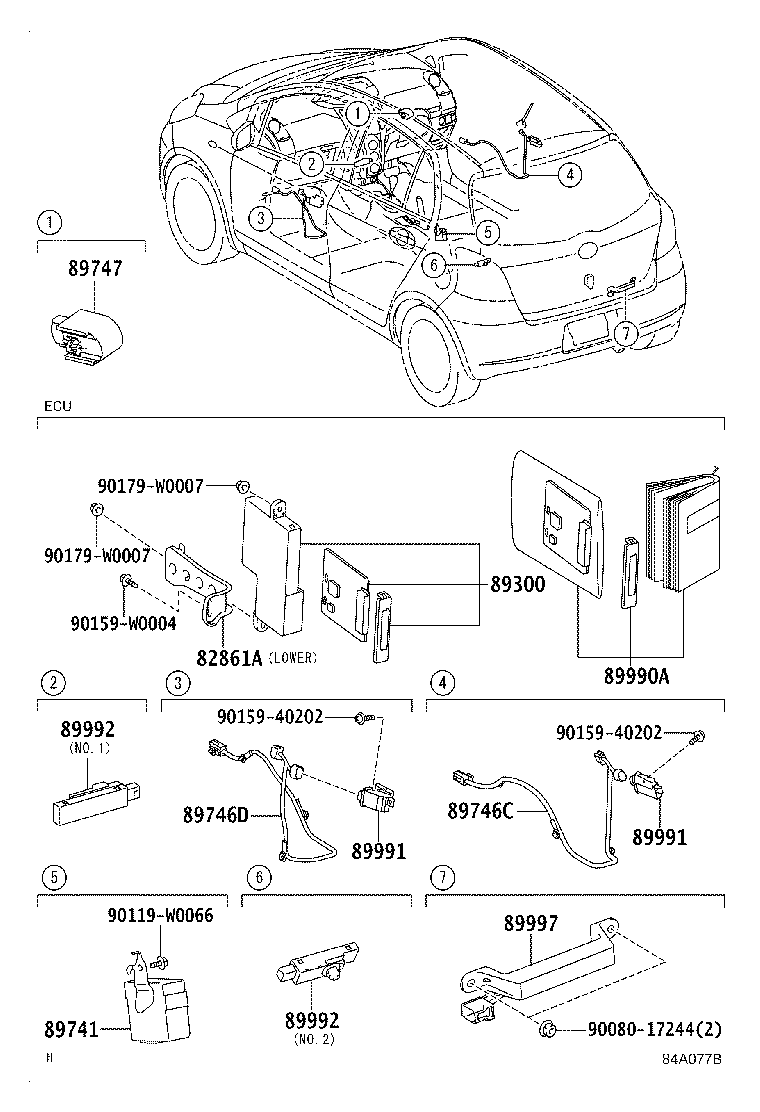

(0811- )KSP90,NLP90..FRP..RHD..SOL
W(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82861A - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-0D010 |
KSP90,NLP90,SCP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(W/PUSH START),UPPER |
1 | ||
| 82861-0D020 |
KSP90,NLP90,SCP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(W/PUSH START),LOWER |
1 | ||
| 82861-0D020 |
KSP90,NLP90,SCP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH,LOWER |
1 | ||
| 82861-0D010 |
KSP90,NLP90,SCP90..FRP..RHD..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),UPPER |
1 | ||
| 82861-0D010 |
KSP90,NLP90,SCP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH,UPPER |
1 | ||
| 82861-0D020 |
KSP90,NLP90,SCP90..FRP..RHD..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),LOWER |
1 | ||
| 82861-0D020 |
KSP90,NLP90,NSP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH,LOWER |
1 | ||
| 82861-0D020 |
KSP90,NLP90,NSP90..FRP..RHD..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),LOWER |
1 | ||
| 82861-0D020 |
KSP90,NLP90,NSP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(WITH/PUSH START),LOWER |
1 | ||
| 89300 - BOX ASSY, ECU AGGREGATION | ||||
| 89300-52030 |
KSP90,NLP90,SCP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH |
1 | ||
| 89300-52021 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 89300-52014 |
KSP90,NLP90,NSP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 89300-52030 |
KSP90,NLP90,NSP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH |
1 | ||
| 89300-52011 |
KSP90,NLP90,SCP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 89300-52013 |
KSP90,NLP90,NSP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 89300-52052 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 89300-52053 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-0D030 |
KSP90,NLP90,SCP90..FRP..SOL |
1 | ||
| 89741-0D030 |
KSP90,NLP90,SCP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 89741-0D040 |
KSP90,NLP90,SCP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH |
1 | ||
| 89740-0D010 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 89740-0D011 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 89741-0D041 |
KSP90,NLP90,NSP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH |
1 | ||
| 89741-0D031 |
KSP90,NLP90,NSP90..FRP..SOL |
1 | ||
| 89741-0D030 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 89741-0D031 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 89741-0D031 |
KSP90,NLP90,NSP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 89746C - HARNESS, ELECTRICAL KEY WIRE, NO.1 | ||||
| 89746-52030 |
KSP90,NLP90,NSP90..FRP..5D..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM) |
1 | ||
| 89746-52030 |
KSP90,NLP90,NSP90..FRP..5D..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 89746-52030 |
KSP90,NLP90,NSP90..FRP..5D..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MAT SILVER(GRIP TYPE & SMART KEY SYSTEM) |
1 | ||
| 89746-52030 |
KSP90,NLP90,SCP90..FRP..5D..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 89746D - HARNESS, ELECTRICAL KEY WIRE, NO.2 | ||||
| 89746-52040 |
KSP90,NLP90,SCP90..FRP..5D..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 89746-52040 |
KSP90,NLP90,NSP90..FRP..5D..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 89746-52040 |
KSP90,NLP90,NSP90..FRP..5D..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MAT SILVER(GRIP TYPE & SMART KEY SYSTEM) |
1 | ||
| 89746-52040 |
KSP90,NLP90,NSP90..FRP..5D..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM) |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-0D010 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 89747-0D010 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-52112 |
KSP90,NLP90,NSP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 89990-52081 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 89990-52112 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 89990-52081 |
KSP90,NLP90,SCP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 89991 - OSCILLATOR, DOOR ELECTRICAL KEY | ||||
| 89991-30040 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),RH |
1 | ||
| 89991-30040 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),RH |
1 | ||
| 89991-30050 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),LH |
1 | ||
| 89991-30050 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),LH |
1 | ||
| 89991-30040 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),RH |
1 | ||
| 89991-30050 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MAT SILVER(GRIP TYPE & SMART KEY SYSTEM),LH |
1 | ||
| 89991-30050 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),LH |
1 | ||
| 89991-30040 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MAT SILVER(GRIP TYPE & SMART KEY SYSTEM),RH |
1 | ||
| 89991 - OSCILLATOR, DOOR ELECTRICAL KEY | ||||
| 89991-30040 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),RH |
1 | ||
| 89991-30040 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),RH |
1 | ||
| 89991-30050 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),LH |
1 | ||
| 89991-30050 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),LH |
1 | ||
| 89991-30040 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),RH |
1 | ||
| 89991-30050 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MAT SILVER(GRIP TYPE & SMART KEY SYSTEM),LH |
1 | ||
| 89991-30050 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),LH |
1 | ||
| 89991-30040 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MAT SILVER(GRIP TYPE & SMART KEY SYSTEM),RH |
1 | ||
| 89992 - OSCILLATOR, INDOOR ELECTRICAL KEY | ||||
| 89992-0D010 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),NO.1 |
1 | ||
| 89992-0D010 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),NO.1 |
1 | ||
| 89992-0D010 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MAT SILVER(GRIP TYPE & SMART KEY SYSTEM),NO.1 |
1 | ||
| 89992-0D020 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),NO.2 |
1 | ||
| 89992-0D020 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MAT SILVER(GRIP TYPE & SMART KEY SYSTEM),NO.2 |
1 | ||
| 89992-0D020 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),NO.2 |
1 | ||
| 89992-0D010 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),NO.1 |
1 | ||
| 89992-0D020 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),NO.2 |
1 | ||
| 89992 - OSCILLATOR, INDOOR ELECTRICAL KEY | ||||
| 89992-0D010 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),NO.1 |
1 | ||
| 89992-0D010 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),NO.1 |
1 | ||
| 89992-0D010 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MAT SILVER(GRIP TYPE & SMART KEY SYSTEM),NO.1 |
1 | ||
| 89992-0D020 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),NO.2 |
1 | ||
| 89992-0D020 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MAT SILVER(GRIP TYPE & SMART KEY SYSTEM),NO.2 |
1 | ||
| 89992-0D020 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),NO.2 |
1 | ||
| 89992-0D010 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),NO.1 |
1 | ||
| 89992-0D020 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),NO.2 |
1 | ||
| 89997 - ANTENNA, ELECTRICAL KEY | ||||
| 89997-52010 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 89997-52010 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM) |
1 | ||
| 89997-52010 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 89997-52010 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MAT SILVER(GRIP TYPE & SMART KEY SYSTEM) |
1 | ||
| Common parts | ||||
| 90080-17244 | ||||
| 90119-W0066 | ||||
| 90159-40202 | ||||
| 90159-W0004 | ||||
| 90179-W0007 | ||||

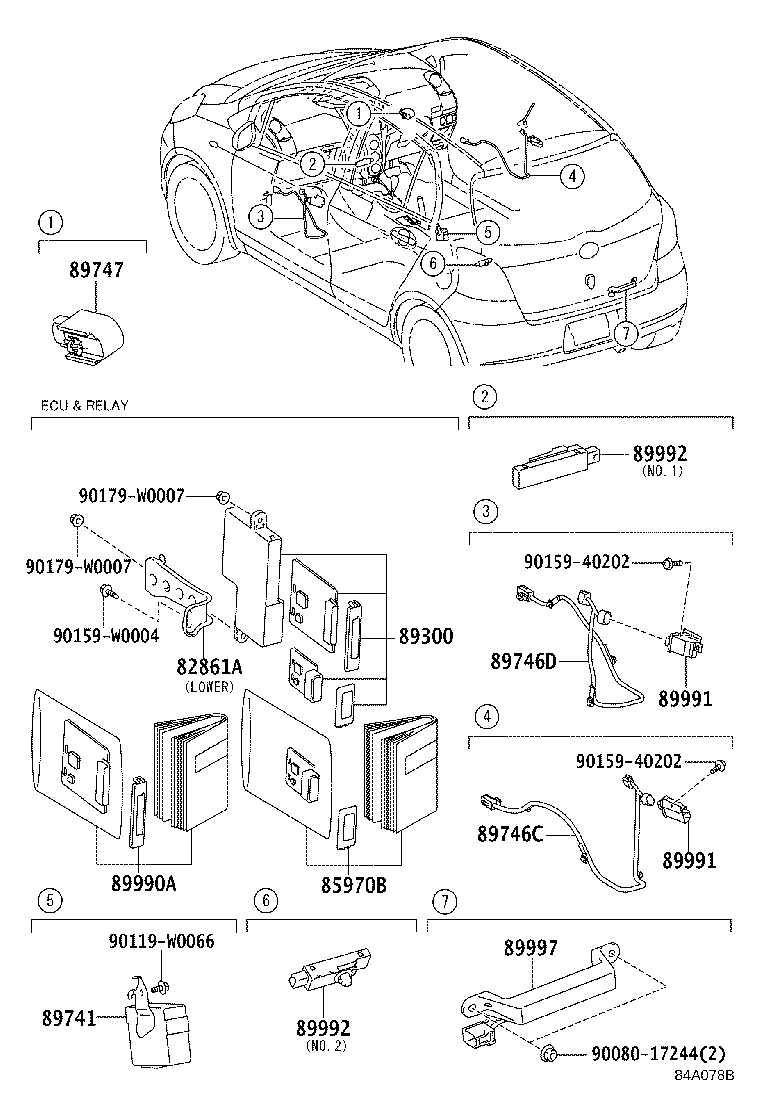

(0811- )KSP90,NLP90..FRP..RHD..SOL
W(DOUBLE LOCKING & SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82861A - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-0D010 |
KSP90,NLP90,SCP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(W/PUSH START),UPPER |
1 | ||
| 82861-0D020 |
KSP90,NLP90,SCP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(W/PUSH START),LOWER |
1 | ||
| 82861-0D020 |
KSP90,NLP90,SCP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH,LOWER |
1 | ||
| 82861-0D010 |
KSP90,NLP90,SCP90..FRP..RHD..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),UPPER |
1 | ||
| 82861-0D010 |
KSP90,NLP90,SCP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH,UPPER |
1 | ||
| 82861-0D020 |
KSP90,NLP90,SCP90..FRP..RHD..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),LOWER |
1 | ||
| 82861-0D020 |
KSP90,NLP90,NSP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH,LOWER |
1 | ||
| 82861-0D020 |
KSP90,NLP90,NSP90..FRP..RHD..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),LOWER |
1 | ||
| 82861-0D020 |
KSP90,NLP90,NSP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(WITH/PUSH START),LOWER |
1 | ||
| 85970B - RELAY ASSY, DOUBLE LOCK DOOR CONTROL | ||||
| 85970-52020 |
KSP90,NLP90,NSP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH |
1 | ||
| 85970-52020 |
KSP90,NLP90,SCP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 85970-52020 |
KSP90,NLP90,SCP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH |
1 | ||
| 85970-52020 |
KSP90,NLP90,NSP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 89300 - BOX ASSY, ECU AGGREGATION | ||||
| 89300-52030 |
KSP90,NLP90,SCP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH |
1 | ||
| 89300-52021 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 89300-52014 |
KSP90,NLP90,NSP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 89300-52030 |
KSP90,NLP90,NSP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH |
1 | ||
| 89300-52011 |
KSP90,NLP90,SCP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 89300-52013 |
KSP90,NLP90,NSP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 89300-52052 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 89300-52053 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-0D030 |
KSP90,NLP90,SCP90..FRP..SOL |
1 | ||
| 89741-0D030 |
KSP90,NLP90,SCP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 89741-0D040 |
KSP90,NLP90,SCP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH |
1 | ||
| 89740-0D010 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 89740-0D011 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 89741-0D041 |
KSP90,NLP90,NSP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH |
1 | ||
| 89741-0D031 |
KSP90,NLP90,NSP90..FRP..SOL |
1 | ||
| 89741-0D030 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 89741-0D031 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 89741-0D031 |
KSP90,NLP90,NSP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 89746C - HARNESS, ELECTRICAL KEY WIRE, NO.1 | ||||
| 89746-52030 |
KSP90,NLP90,NSP90..FRP..5D..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM) |
1 | ||
| 89746-52030 |
KSP90,NLP90,NSP90..FRP..5D..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 89746-52030 |
KSP90,NLP90,NSP90..FRP..5D..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MAT SILVER(GRIP TYPE & SMART KEY SYSTEM) |
1 | ||
| 89746-52030 |
KSP90,NLP90,SCP90..FRP..5D..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 89746D - HARNESS, ELECTRICAL KEY WIRE, NO.2 | ||||
| 89746-52040 |
KSP90,NLP90,SCP90..FRP..5D..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 89746-52040 |
KSP90,NLP90,NSP90..FRP..5D..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 89746-52040 |
KSP90,NLP90,NSP90..FRP..5D..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MAT SILVER(GRIP TYPE & SMART KEY SYSTEM) |
1 | ||
| 89746-52040 |
KSP90,NLP90,NSP90..FRP..5D..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM) |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-0D010 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 89747-0D010 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-52112 |
KSP90,NLP90,NSP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 89990-52081 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 89990-52112 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 89990-52081 |
KSP90,NLP90,SCP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 89991 - OSCILLATOR, DOOR ELECTRICAL KEY | ||||
| 89991-30040 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),RH |
1 | ||
| 89991-30040 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),RH |
1 | ||
| 89991-30050 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),LH |
1 | ||
| 89991-30050 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),LH |
1 | ||
| 89991-30040 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),RH |
1 | ||
| 89991-30050 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MAT SILVER(GRIP TYPE & SMART KEY SYSTEM),LH |
1 | ||
| 89991-30050 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),LH |
1 | ||
| 89991-30040 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MAT SILVER(GRIP TYPE & SMART KEY SYSTEM),RH |
1 | ||
| 89991 - OSCILLATOR, DOOR ELECTRICAL KEY | ||||
| 89991-30040 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),RH |
1 | ||
| 89991-30040 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),RH |
1 | ||
| 89991-30050 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),LH |
1 | ||
| 89991-30050 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),LH |
1 | ||
| 89991-30040 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),RH |
1 | ||
| 89991-30050 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MAT SILVER(GRIP TYPE & SMART KEY SYSTEM),LH |
1 | ||
| 89991-30050 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),LH |
1 | ||
| 89991-30040 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MAT SILVER(GRIP TYPE & SMART KEY SYSTEM),RH |
1 | ||
| 89992 - OSCILLATOR, INDOOR ELECTRICAL KEY | ||||
| 89992-0D010 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),NO.1 |
1 | ||
| 89992-0D010 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),NO.1 |
1 | ||
| 89992-0D010 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MAT SILVER(GRIP TYPE & SMART KEY SYSTEM),NO.1 |
1 | ||
| 89992-0D020 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),NO.2 |
1 | ||
| 89992-0D020 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MAT SILVER(GRIP TYPE & SMART KEY SYSTEM),NO.2 |
1 | ||
| 89992-0D020 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),NO.2 |
1 | ||
| 89992-0D010 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),NO.1 |
1 | ||
| 89992-0D020 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),NO.2 |
1 | ||
| 89992 - OSCILLATOR, INDOOR ELECTRICAL KEY | ||||
| 89992-0D010 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),NO.1 |
1 | ||
| 89992-0D010 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),NO.1 |
1 | ||
| 89992-0D010 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MAT SILVER(GRIP TYPE & SMART KEY SYSTEM),NO.1 |
1 | ||
| 89992-0D020 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),NO.2 |
1 | ||
| 89992-0D020 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MAT SILVER(GRIP TYPE & SMART KEY SYSTEM),NO.2 |
1 | ||
| 89992-0D020 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),NO.2 |
1 | ||
| 89992-0D010 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),NO.1 |
1 | ||
| 89992-0D020 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),NO.2 |
1 | ||
| 89997 - ANTENNA, ELECTRICAL KEY | ||||
| 89997-52010 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 89997-52010 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM) |
1 | ||
| 89997-52010 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 89997-52010 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MAT SILVER(GRIP TYPE & SMART KEY SYSTEM) |
1 | ||
| Common parts | ||||
| 90080-17244 | ||||
| 90119-W0066 | ||||
| 90159-40202 | ||||
| 90159-W0004 | ||||
| 90179-W0007 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
