NLP90R-CHFGXW (2008)

Toyota Yaris (Frp)

Production Nov 2008 - Jul 2011
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )NLP90..FRP

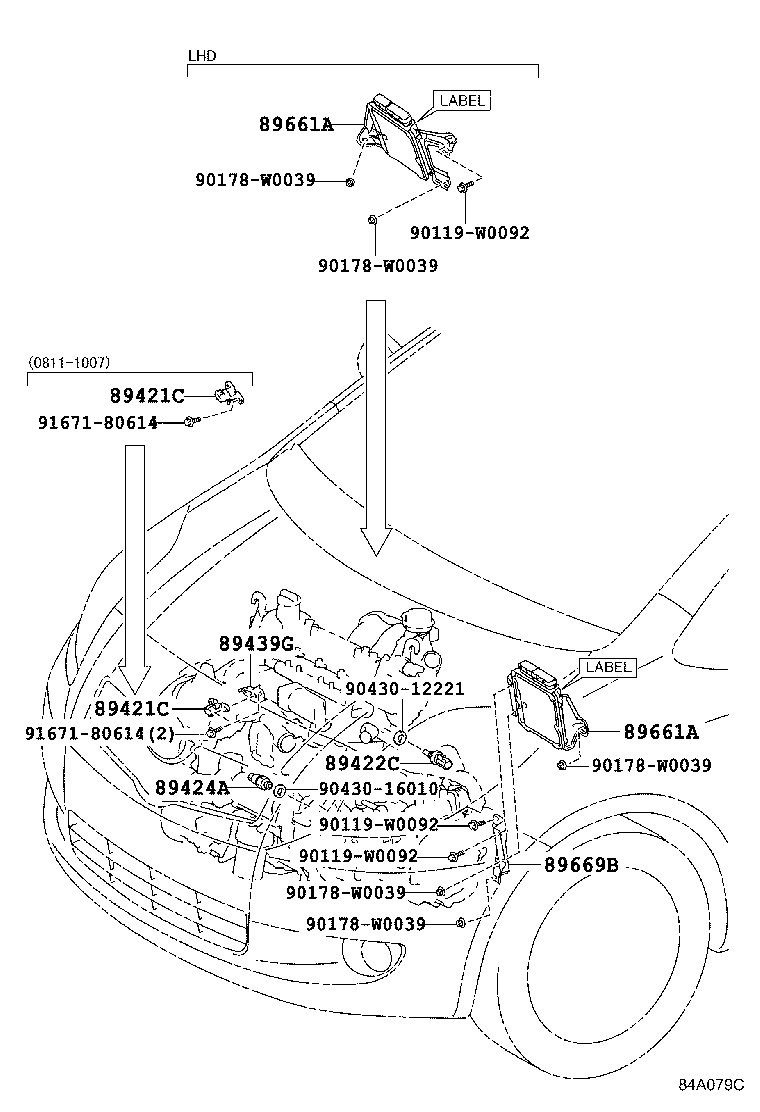

Click highlighted areas on diagram

diagram 89421C 89421C 89422C 89424A 89439G 89661A 89661A 89669B 90119W0092 90119W0092 90119W0092 90178W0039 90178W0039 90178W0039 90178W0039 90178W0039 9043012221 9043016010 9167180614 9167180614
Part # Description Qty Price
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-71020

NLP90..FRP

 1
89421-20200

NLP90..FRP

 1
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-71020

NLP90..FRP

 1
89421-20200

NLP90..FRP

 1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-33030

NLP90..FRP

 1
89424A - SENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89424-60010

NLP90..FRP

 1
89439G - BRACKET, SENSOR
89431-12010

NLP90..FRP

 1
89661A - COMPUTER, ENGINE CONTROL
89601-0D090

NLP90..FRP..RHD..6F..SOL

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

 1
89601-0D070

NLP90..FRP..RHD..6F

 1
89601-0D091

NLP90..FRP..RHD..6F..SOL

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),P/N LABEL=896610D541

 1
89601-0D071

NLP90..FRP..RHD..6F

P/N LABEL=896610DC21

 1
89601-0D170

NLP90..FRP..RHD..6F

P/N LABEL=896610DG50

 1
89601-0D190

NLP90..FRP..RHD..6F..SOL

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),P/N LABEL=896610DG70

 1
89661A - COMPUTER, ENGINE CONTROL
89601-0D090

NLP90..FRP..RHD..6F..SOL

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

 1
89601-0D070

NLP90..FRP..RHD..6F

 1
89601-0D091

NLP90..FRP..RHD..6F..SOL

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),P/N LABEL=896610D541

 1
89601-0D071

NLP90..FRP..RHD..6F

P/N LABEL=896610DC21

 1
89601-0D170

NLP90..FRP..RHD..6F

P/N LABEL=896610DG50

 1
89601-0D190

NLP90..FRP..RHD..6F..SOL

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),P/N LABEL=896610DG70

 1
89669B - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-52140

NLP90..FRP..RHD

 1
89669-52140

NLP90..FRP..RHD

 1
Common parts
90119-W0092
90178-W0039
90430-12221
90430-16010
91671-80614
