NLP90R-CHFGXW (2008)

Toyota Yaris (Frp)

Production Nov 2008 - Jul 2011
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

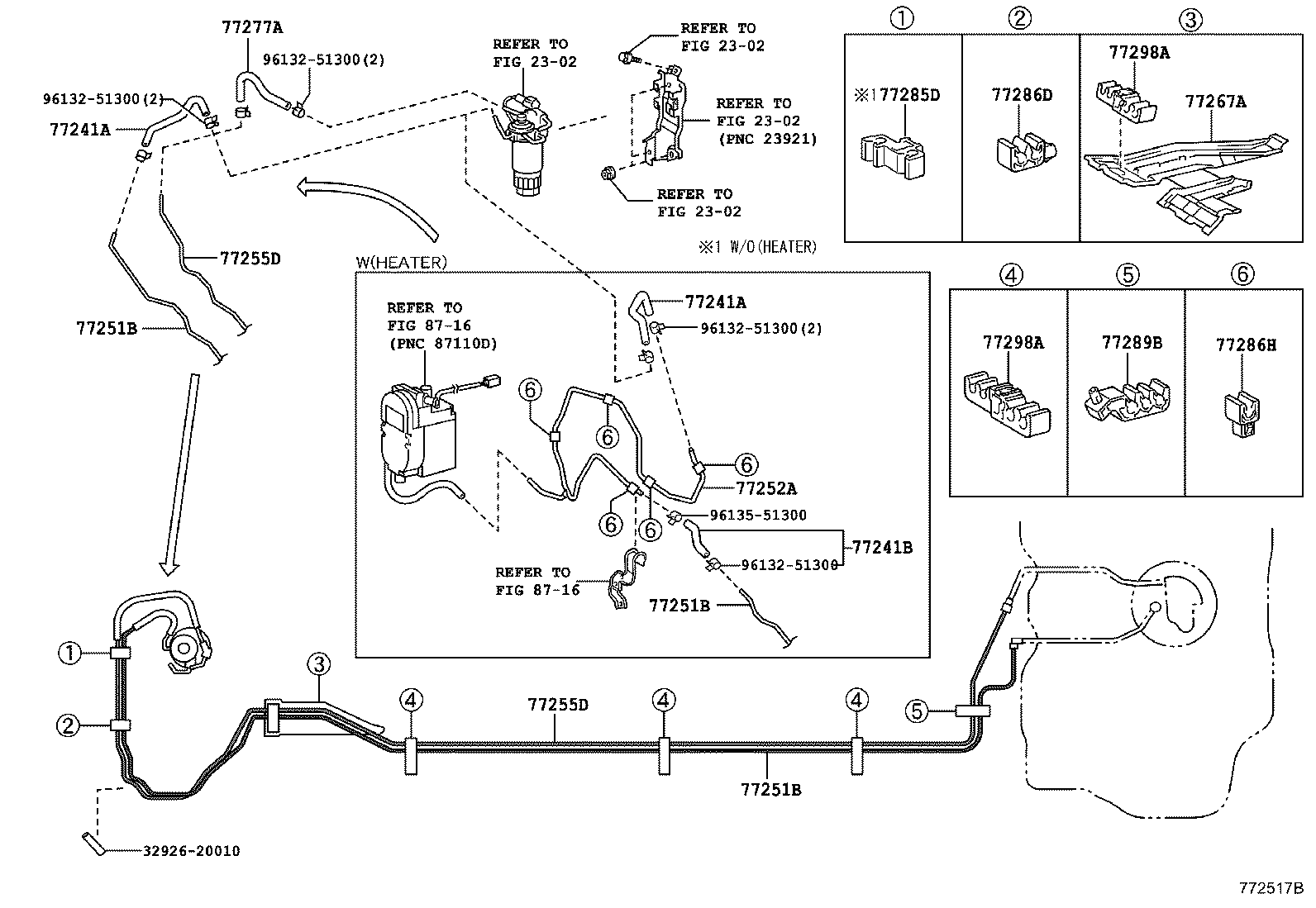

ILLUST NO. 2 OF 2(0811- )NLP90..FRP

Click highlighted areas on diagram

FUEL TUBE

diagram 2302 2302 2302 2302 3292620010 77241A 77241A 77241B 77251B 77251B 77251B 77252A 77255D 77255D 77267A 77277A 77285D 77286D 77286H 77289B 77298A 77298A 8716 8716 9613251300 9613251300 9613251300 9613251300 9613551300
Part # Description Qty Price
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77259-0D060

NLP90..FRP

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77259-0D060

NLP90..FRP

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
77279-52040

NLP90..FRP

 1
77251B - TUBE, FUEL MAIN
77251-0D090

NLP90..FRP

 1
77251-0D200

NLP90..FRP

 1
77251B - TUBE, FUEL MAIN
77251-0D090

NLP90..FRP

 1
77251-0D200

NLP90..FRP

 1
77251B - TUBE, FUEL MAIN
77251-0D090

NLP90..FRP

 1
77251-0D200

NLP90..FRP

 1
77252A - TUBE, FUEL MAIN, NO.2
77252-0D040

NLP90..FRP

 1
77255D - TUBE, FUEL RETURN
77255-0D020

NLP90..FRP

 1
77255-0D030

NLP90..FRP

 1
77255D - TUBE, FUEL RETURN
77255-0D020

NLP90..FRP

 1
77255-0D030

NLP90..FRP

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-52050

KSP90,NLP90,NSP90..FRP

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23274-33030

NLP90..FRP

 1
23274-0N020

NLP90..FRP

 1
77285D - CLAMP, FUEL TUBE, NO.1
77285-52091

NLP90..FRP

 1
77285-52120

NLP90..FRP

 1
77286D - CLAMP, FUEL TUBE, NO.2
77286-52130

NLP90..FRP

 1
77289B - CLAMP, FUEL TUBE, NO.3
77289-52060

KSP90,NLP90,NSP90..FRP

 1
77289-52060

KSP90,NLP90,SCP90..FRP

 1
77298A - CLAMP, FUEL TUBE, NO.4
77298-52070

KSP90,NLP90,SCP90..FRP

 4
77298-52070

KSP90,NLP90,NSP90..FRP

 4
77298A - CLAMP, FUEL TUBE, NO.4
77298-52070

KSP90,NLP90,SCP90..FRP

 4
77298-52070

KSP90,NLP90,NSP90..FRP

 4
Common parts
32926-20010
96132-51300
96135-51300
Linked diagrams
2302
8716
