NLP90R-CHFGXW (2008)

Toyota Yaris (Frp)

Production Nov 2008 - Jul 2011
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )NLP90..FRP

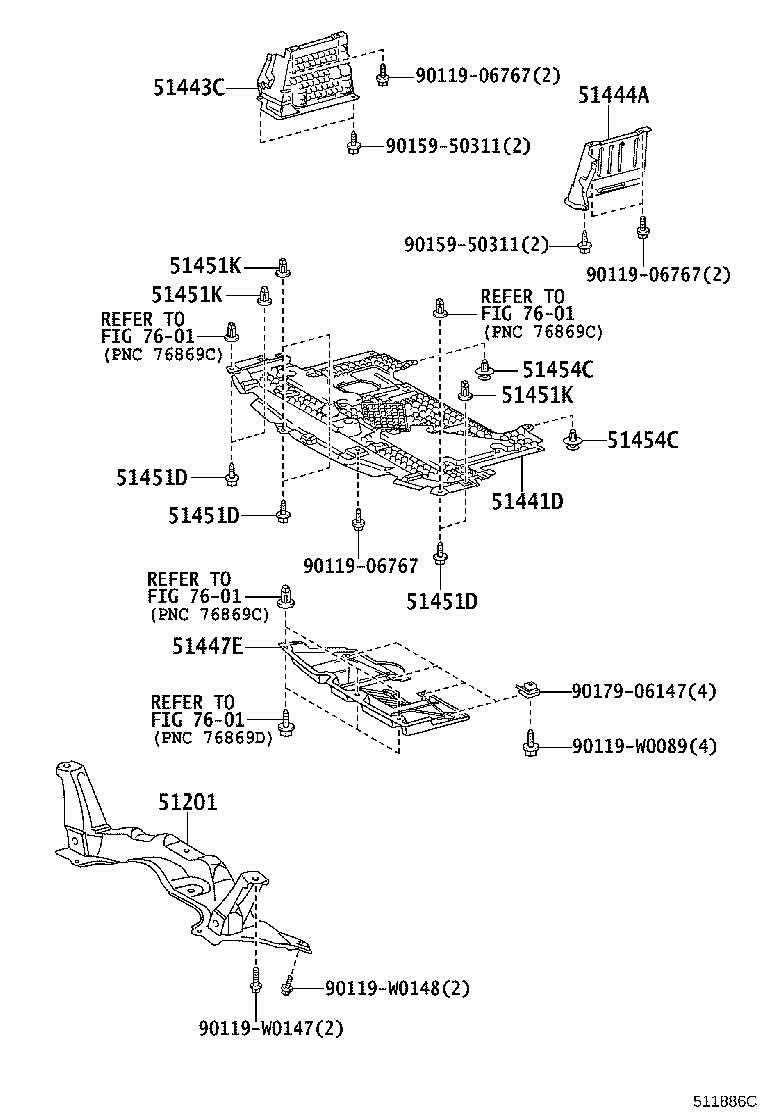

Click highlighted areas on diagram

diagram 51201 51441D 51443C 51444A 51447E 51451D 51451D 51451D 51451K 51451K 51451K 51454C 51454C 7601 7601 7601 7601 9011906767 9011906767 9011906767 90119W0089 90119W0147 90119W0148 9015950311 9015950311 9017906147
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-0D100

NLP90..FRP

 1
51201-0D100

NLP90..FRP

 1
51201-0D103

NLP90..FRP

 1
51441D - COVER, ENGINE UNDER
51441-0D200

NLP90..FRP

 1
51441-0D130

NLP90..FRP

 1
51443C - COVER, ENGINE UNDER, REAR RH
51443-0D010

NLP90..FRP

 1
51443-0D020

NLP90..FRP

 1
51444A - COVER, ENGINE UNDER, REAR LH
51444-0D010

NLP90..FRP

 1
51444-0D020

NLP90..FRP

 1
51447E - REINFORCEMENT, ENGINE UNDER COVER
51447-0D020

NLP90..FRP

 1
51451D - SCREW, NO.1
90159-60383

KSP90,NLP90,NSP90..FRP

 6
90159-60383

KSP90,NLP90,SCP90..FRP

 6
51451D - SCREW, NO.1
90159-60383

KSP90,NLP90,NSP90..FRP

 6
90159-60383

KSP90,NLP90,SCP90..FRP

 6
51451D - SCREW, NO.1
90159-60383

KSP90,NLP90,NSP90..FRP

 6
90159-60383

KSP90,NLP90,SCP90..FRP

 6
51451K - GROMMET, SCREW, NO.1
90189-06076

KSP90,NLP90,SCP90..FRP

 4
90189-06076

KSP90,NLP90,NSP90..FRP

 4
51451K - GROMMET, SCREW, NO.1
90189-06076

KSP90,NLP90,SCP90..FRP

 4
90189-06076

KSP90,NLP90,NSP90..FRP

 4
51451K - GROMMET, SCREW, NO.1
90189-06076

KSP90,NLP90,SCP90..FRP

 4
90189-06076

KSP90,NLP90,NSP90..FRP

 4
51454C - SILENCER, ENGINE UNDER COVER, REAR
51454-48010

NLP90..FRP

 2
51454-48010

NLP90..FRP

 2
51454C - SILENCER, ENGINE UNDER COVER, REAR
51454-48010

NLP90..FRP

 2
51454-48010

NLP90..FRP

 2
Common parts
90119-06767
90119-W0089
90119-W0147
90119-W0148
90159-50311
90179-06147
Linked diagrams
7601
