NLP90R-CHFGXW (2008)

Toyota Yaris (Frp)

Production Nov 2008 - Jul 2011
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )NLP90..FRP..RHD

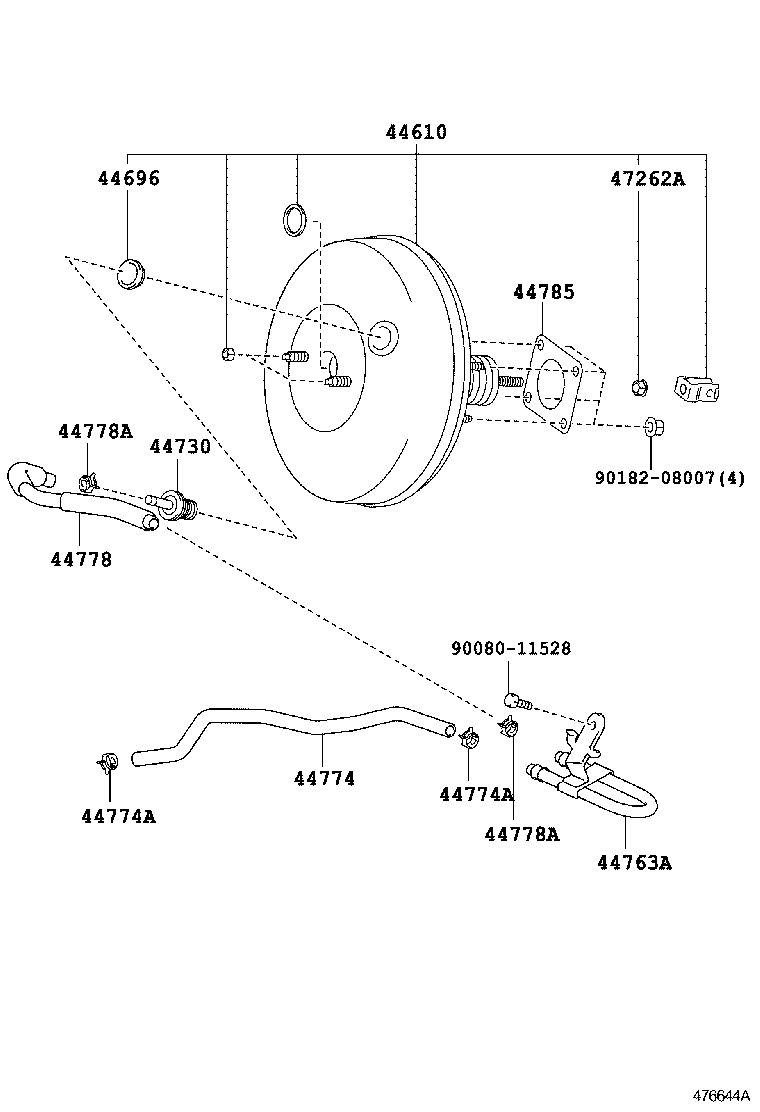

Click highlighted areas on diagram

diagram 44610 44696 44730 44763A 44774 44774A 44774A 44778 44778A 44778A 44785 47262A 9008011528 9018208007
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-09250

KSP90,NLP90,SCP90..FRP..RHD

VEHICLE STABILITY CONT-WITH

 1
44610-09270

NLP90..FRP..RHD

 1
44610-09250

NSP90..FRP..RHD..6FS;KSP90,NLP90..FRP..RHD

VSC-WITH

 1
44610-09270

NLP90..FRP..RHD

 1
44696 - GROMMET, CHECK VALVE
44692-0D020

KSP90,NLP90,NSP90..FRP

 1
44692-0D020

KSP90,NLP90,SCP90..FRP

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-0D010

SCP90..FRP..RHD;KSP90,NLP90..FRP

 1
44730-0D010

KSP90,NLP90,NSP90..FRP

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-52110

NLP90..FRP..RHD

 1
44763-52060

NLP90..FRP..RHD

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-52100

NLP90..FRP..RHD

 1
44774-52130

NLP90..FRP..RHD

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

NLP90,NSP90..FRP

 2
90467-16014

NLP90..FRP

NO.1

 2
96133-41500

NLP90..FRP

NO.2

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

NLP90,NSP90..FRP

 2
90467-16014

NLP90..FRP

NO.1

 2
96133-41500

NLP90..FRP

NO.2

 2
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-52120

NLP90..FRP..RHD

 1
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16014

NLP90,NSP90..FRP

 2
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16014

NLP90,NSP90..FRP

 2
44785 - GASKET, BRAKE BOOSTER
44785-16020

KSP90,NLP90,SCP90..FRP

 1
44785-16020

KSP90,NLP90,NSP90..FRP

 1
47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK
47262-05010

KSP90,NLP90,SCP90..FRP

 1
Common parts
90080-11528
90182-08007
