NLP90R-CHFGXW (2008)

Toyota Yaris (Frp)

Production Nov 2008 - Jul 2011
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )NLP90..FRP..RHD..6F

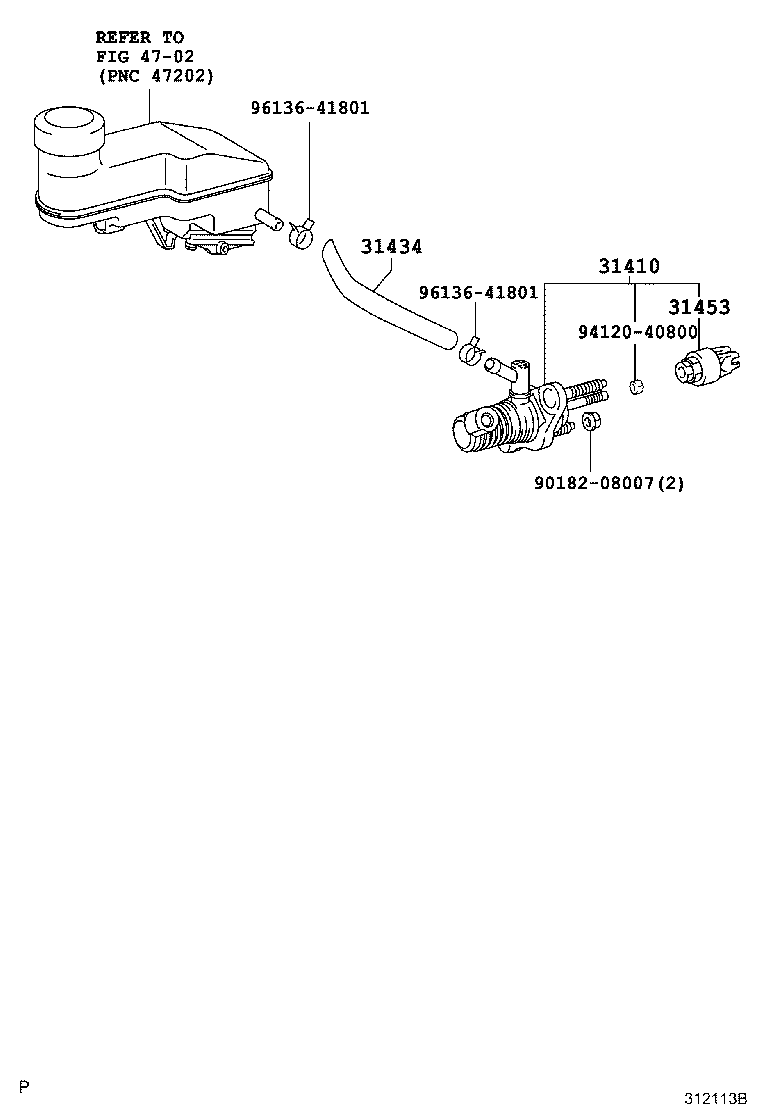

Click highlighted areas on diagram

diagram 31410 31434 31453 4702 9018208007 9412040800 9613641801 9613641801
Part # Description Qty Price
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-52050

NLP90..FRP..RHD..6F

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-52170

KSP90,NLP90,NSP90..FRP..RHD..(5F,6F)

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-52010

NLP90..FRP..RHD..6F

 1
Common parts
90182-08007
94120-40800
96136-41801
Linked diagrams
4702
