NLP90R-CHFGXW (2008)

Toyota Yaris (Frp)

Production Nov 2008 - Jul 2011
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

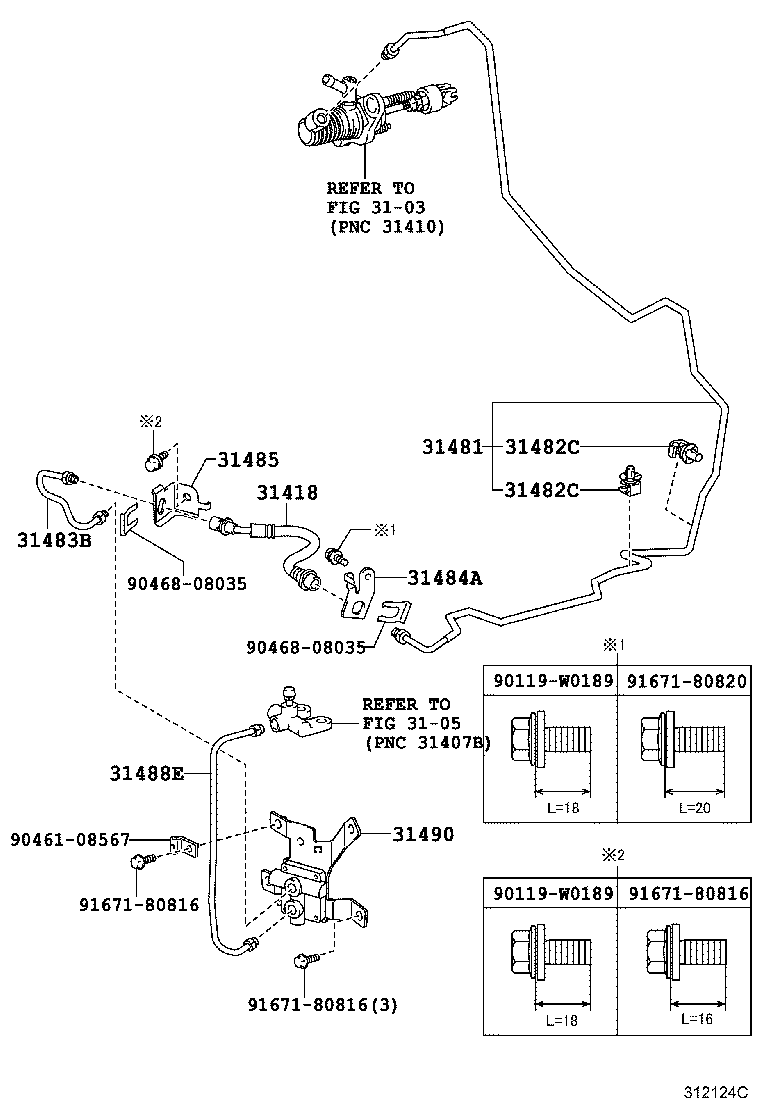

ILLUST NO. 2 OF 2(0811- )NLP90..FRP..RHD..6F

Click highlighted areas on diagram

diagram 3103 3105 31418 31481 31482C 31482C 31483B 31484A 31485 31488E 31490 90119W0189 90119W0189 9046108567 9046808035 9046808035 9167180816 9167180816 9167180816 9167180820
Part # Description Qty Price
31418 - HOSE, CLUTCH
90947-02G12

NLP90..FRP..6F

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-0D190

NLP90..FRP..RHD..6F

 1
31481-0D170

NLP90..FRP..RHD..6F

 1
31482C - CLAMP(FOR CLUTCH TUBE)
90949-01D17

KSP90,NLP90,NSP90..FRP..(5F,6F)

 2
31482C - CLAMP(FOR CLUTCH TUBE)
90949-01D17

KSP90,NLP90,NSP90..FRP..(5F,6F)

 2
31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE
31483-0D030

NLP90..FRP..6F

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-52090

KSP90,NLP90,NSP90..FRP..(5F,6F)

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-0D050

NLP90,NSP90..FRP..6F

 1
31488E - TUBE, BLEEDER TO ACCUMULATOR
31488-0D010

NLP90..FRP..6F

 1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-52040

NLP90..FRP..6F

 1
Common parts
90119-W0189
90461-08567
90468-08035
91671-80816
91671-80820
Linked diagrams
3103
3105
