NLP90R-CHFGXW (2008)

Toyota Yaris (Frp)

Production Nov 2008 - Jul 2011
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )1NDTV..FRP

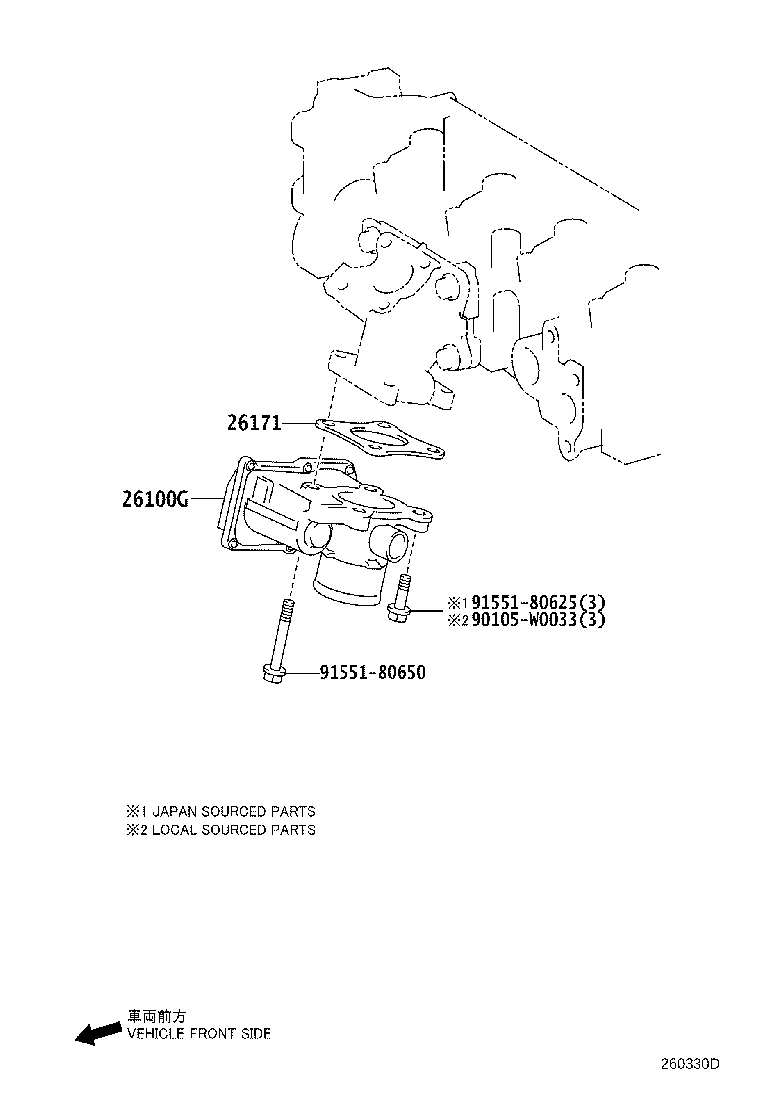

Click highlighted areas on diagram

diagram 26100G 26171 90105W0033 9155180625 9155180650
Part # Description Qty Price
26100G - BODY ASSY, DIESEL THROTTLE
26100-0N030

1NDTV..NLP90..FRP

 1
26100-0N010

1NDTV..NLP90..FRP

(L)

 1
26100-33040

1NDTV..NLP90..FRP

(J)

 1
26171 - GASKET, VENTURI
26171-33030

1NDTV..NLP90..FRP

 1
26171-33040

1NDTV..NLP90..FRP

 1
Common parts
90105-W0033
91551-80625
91551-80650
