NLP90R-CHFGXW (2008)

Toyota Yaris (Frp)

Production Nov 2008 - Jul 2011
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )1NDTV..FRP

Click highlighted areas on diagram

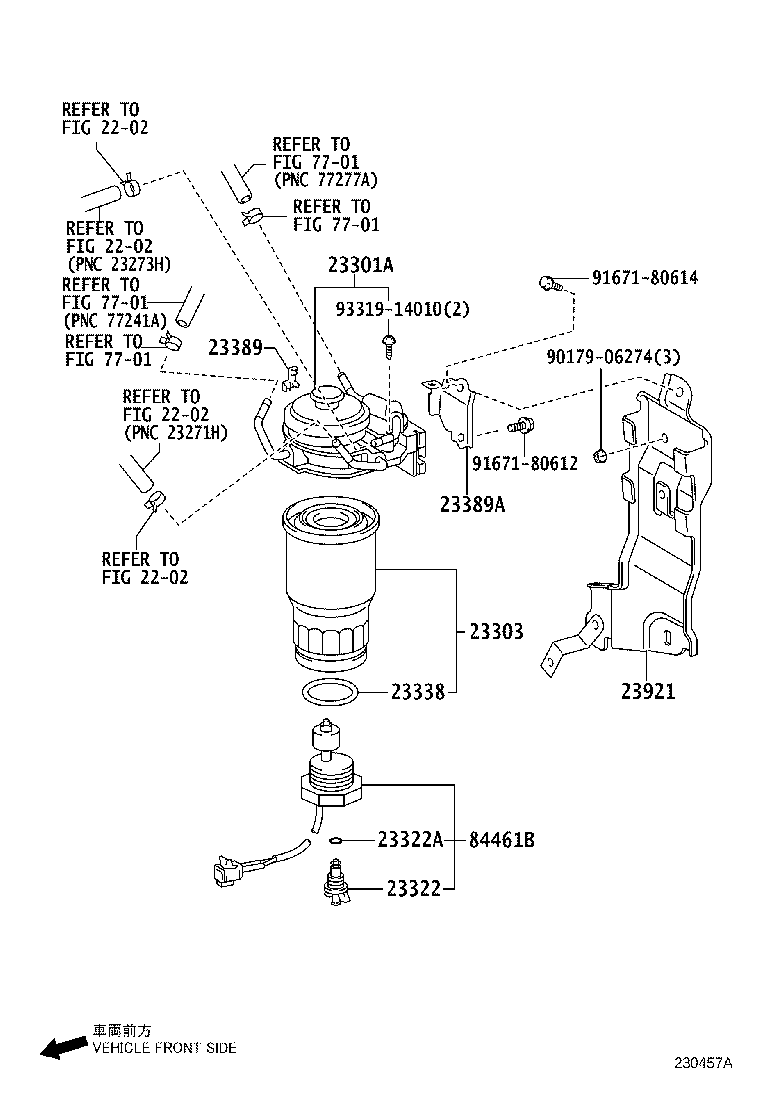

diagram 2202 2202 2202 2202 23301A 23303 23322 23322A 23338 23389 23389A 23921 7701 7701 7701 7701 84461B 9017906274 9167180612 9167180614 9331914010
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23380-0N050

1NDTV..NLP90..FRP

 1
23380-0N060

1NDTV..NLP90..FRP

 1
23380-0N062

1NDTV..NLP90..FRP

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23390-33020

1NDTV..NLP90..FRP

 1
23390-33060

1NDTV..NLP90..FRP

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23388-64470

1NDTV..NLP90..FRP

 1
23388-64470

1NDTV..NLP90..FRP

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

1NDTV..NLP90..FRP

 1
23344-54010

1NDTV..NLP90..FRP

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

1NDTV..NLP90..FRP

 1
23344-64010

1NDTV..NLP90..FRP

 1
23389 - CLAMP, FUEL FILTER
23389-0N010

1NDTV..NLP90..FRP

 1
23389-0N010

1NDTV..NLP90..FRP

 1
23389A - CLAMP, FUEL FILTER
23389-0N060

1NDTV..NLP90..FRP

 1
23921 - SUPPORT, FUEL FILTER
23921-0N010

1NDTV..NLP90..FRP

 1
23921-0N020

1NDTV..NLP90..FRP

 1
84461B - SWITCH, LEVEL WARNING
84461-52010

NLP90..FRP

 1
84461-60080

NLP90..FRP

 1
Common parts
90179-06274
91671-80612
91671-80614
93319-14010
Linked diagrams
2202
7701
