NLP90R-CHFGXW (2008)

Toyota Yaris (Frp)

Production Nov 2008 - Jul 2011
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )1NDTV..FRP

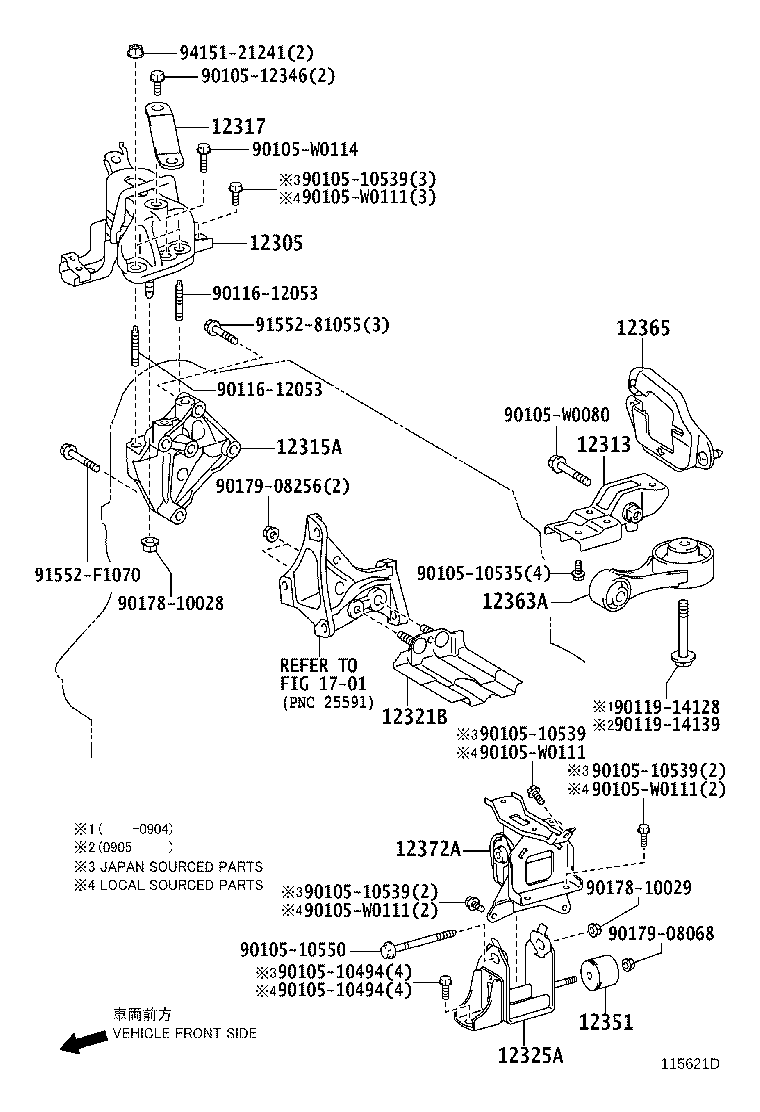

Click highlighted areas on diagram

diagram 12305 12313 12315A 12317 12321B 12325A 12351 12363A 12365 12372A 1701 9010510494 9010510494 9010510535 9010510539 9010510539 9010510539 9010510539 9010510550 9010512346 90105W0080 90105W0111 90105W0111 90105W0111 90105W0111 90105W0114 9011612053 9011612053 9011914128 9011914139 9017810028 9017810029 9017908068 9017908256 9155281055 91552F1070 9415121241
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0N020

1NDTV..NLP90..FRP

 1
12305-0N040

1NDTV..NLP90..FRP

 1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-0N010

1NDTV..NLP90..FRP

 1
12313-0N010

1NDTV..NLP90..FRP

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-33050

1NDTV..NLP90..FRP

 1
12315-33060

1NDTV..NLP90..FRP

 1
12317 - STAY, ENGINE MOUNTING, RH
12317-0N010

1NDTV..NLP90..FRP

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-52040

1NDTV..NLP90..FRP

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-0N020

1NDTV..NLP90..FRP

 1
12325-0N040

1NDTV..NLP90..FRP

 1
12351 - DAMPER, ENGINE MOUNTING
12351-0N040

1NDTV..NLP90..FRP

 1
12351-0Q010

1NDTV..NLP90..FRP

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-0N010

1NDTV..NLP90..FRP

 1
12363-0N011

1NDTV..NLP90..FRP

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0N010

1NDTV..NLP90..FRP

 1
12372-0N030

1NDTV..NLP90..FRP

 1
Common parts
90105-10494
90105-10535
90105-10539
90105-10550
90105-12346
90105-W0080
90105-W0111
90105-W0114
90116-12053
90119-14128
90119-14139
90178-10028
90178-10029
90179-08068
90179-08256
91552-81055
91552-F1070
94151-21241
Linked diagrams
1701
