NLP10R-CGMGXW (2003)

Toyota Yaris (Frp)

Production Feb 2003 - Nov 2005
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0101- )FRP..RHD

Click highlighted areas on diagram

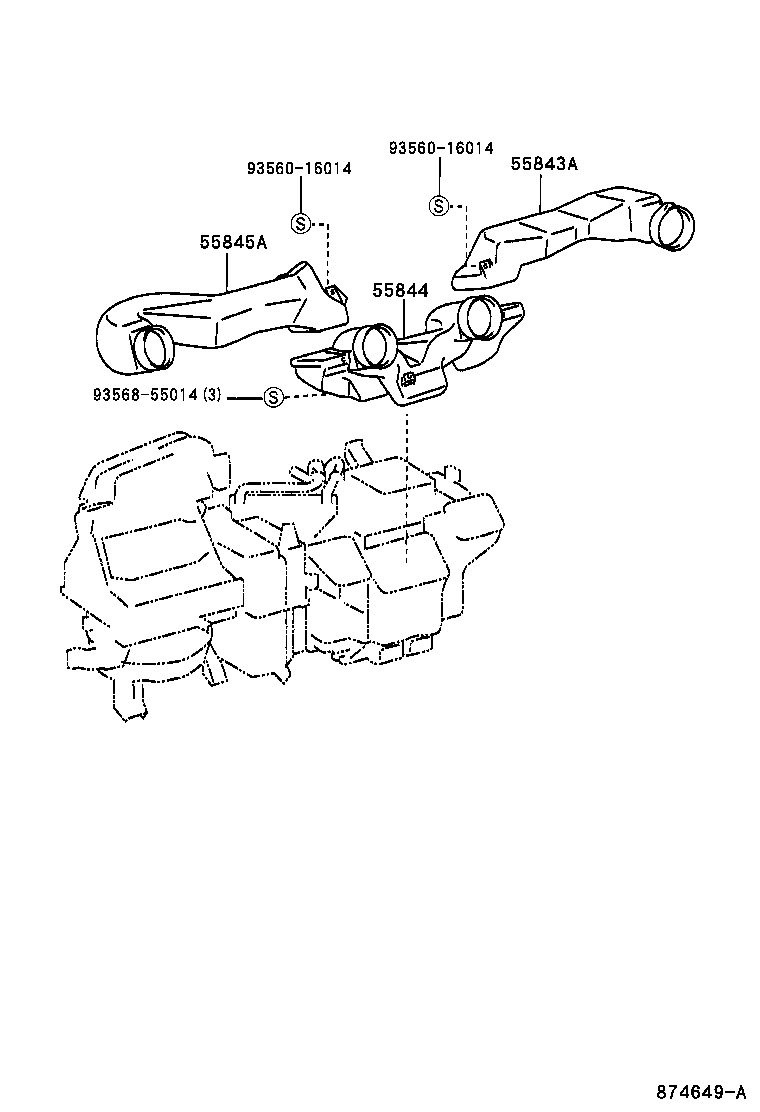

AIR DUCT

diagram 55843A 55844 55845A 9356016014 9356016014 9356855014
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-0D070

NLP10,SCP1#..FRP..RHD

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-0D070

NLP10,SCP1#..FRP..RHD

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-0D070

NLP10,SCP1#..FRP..RHD

 1
Common parts
93560-16014
93568-55014

ILLUST NO. 1 OF 2(0302- )FRP..RHD

Click highlighted areas on diagram

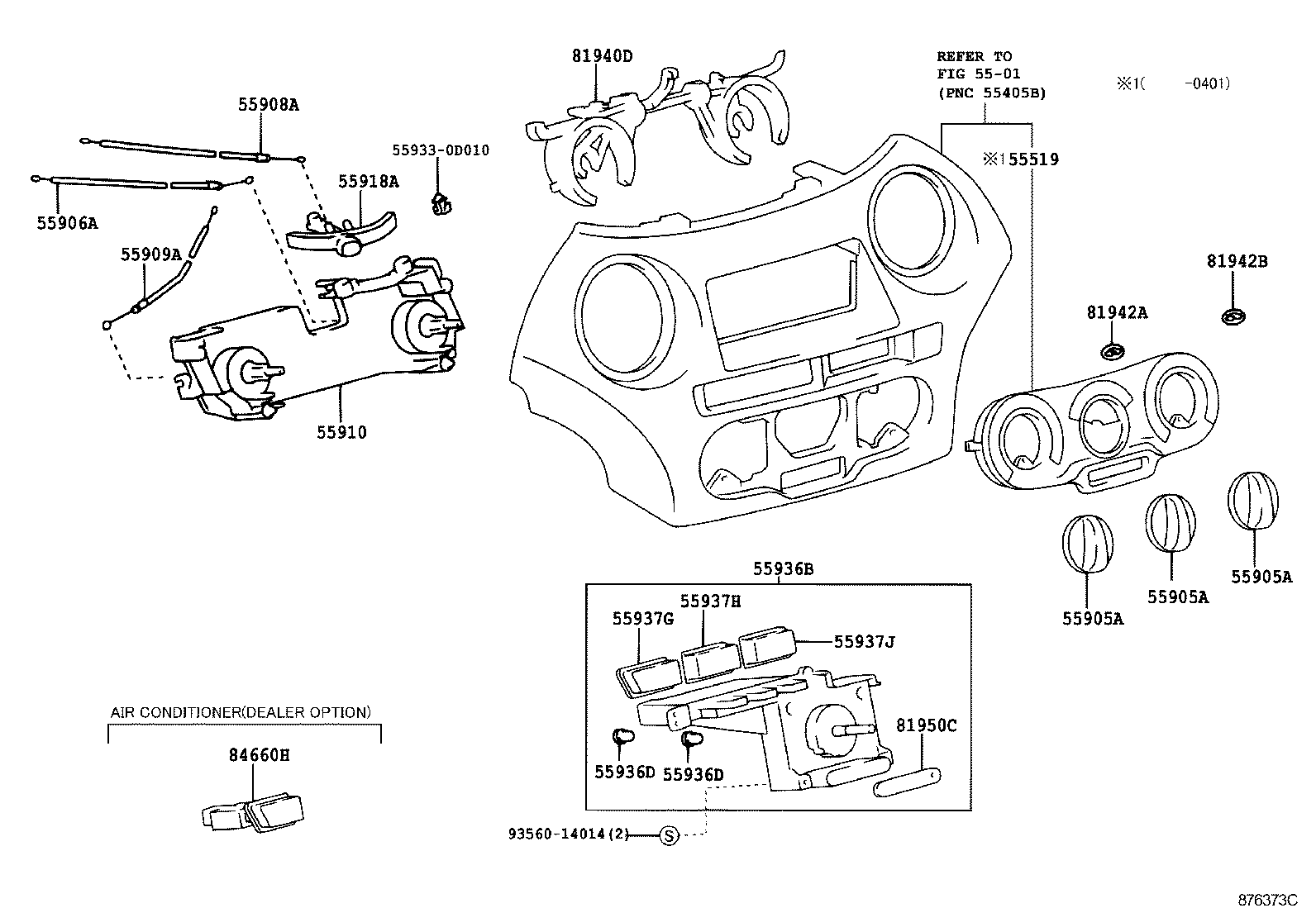

CONTROL

diagram 5501 55519 55905A 55905A 55905A 55906A 55908A 55909A 55910 55918A 559330D010 55936B 55936D 55936D 55937G 55937H 55937J 81940D 81942A 81942B 81950C 84660H 9356014014
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-0D070

NLP10,SCP1#..FRP

W(AIR CONDITIONER),SILVER PAINTED

 3
55905A - KNOB, HEATER CONTROL
55905-0D070

NLP10,SCP1#..FRP

W(AIR CONDITIONER),SILVER PAINTED

 3
55905A - KNOB, HEATER CONTROL
55905-0D070

NLP10,SCP1#..FRP

W(AIR CONDITIONER),SILVER PAINTED

 3
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-0D010

NLP10,SCP1#..FRP

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-0D020

NLP10,SCP1#..FRP..RHD

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-0D020

NLP10,SCP1#..FRP..RHD

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-0D030

NLP10,SCP1#..FRP..RHD

 1
55918A - LEVER, AIR INLET DAMPER CONTROL
55918-0D090

NLP10,SCP1#..FRP

 1
55936B - SWITCH, CENTER CLUSTER MODULE
84010-0D080

NLP10,SCP1#..FRP

 1
84010-0D071

NLP10,SCP1#..FRP..(SOL,TRSTD)

W(AIR CONDITIONER)

 1
84010-0D070

NLP10,SCP1#..FRP..(SOL,TRSTD)

W(AIR CONDITIONER)

 1
84010-0D081

NLP10,SCP1#..FRP

 1
55936D - BLUB, CENTER CLUSTER MODULE SWITCH
84999-06010

NLP10,SCP1#..FRP

12V 1.8W

 2
84999-06010

NLP10,SCP1#..FRP

12V 1.8W

 2
55936D - BLUB, CENTER CLUSTER MODULE SWITCH
84999-06010

NLP10,SCP1#..FRP

12V 1.8W

 2
84999-06010

NLP10,SCP1#..FRP

12V 1.8W

 2
55937G - KNOB, CENTER CLUSTER MODULE, NO.4
55937-0D010

NLP10,SCP1#..FRP..(SOL,TRSTD)

W(AIR CONDITIONER)

 1
55937-0D040

NLP10,SCP1#..FRP

 1
55937-0D040

NLP10,SCP1#..FRP

 1
55937-0D010

NLP10,SCP1#..FRP..(SOL,TRSTD)

W(AIR CONDITIONER)

 1
55937H - KNOB, CENTER CLUSTER MODULE, NO.5
55937-0D020

NLP10,SCP1#..FRP..(SOL,TRSTD)

W(AIR CONDITIONER)

 1
55937-0D020

NLP10,SCP1#..FRP..(SOL,TRSTD)

W(AIR CONDITIONER)

 1
55937J - KNOB, CENTER CLUSTER MODULE, NO.6
55937-0D030

NLP10,SCP1#..FRP..(SOL,TRSTD)

W(AIR CONDITIONER)

 1
55937-0D030

NLP10,SCP1#..FRP..(SOL,TRSTD)

W(AIR CONDITIONER)

 1
81940D - LENS ASSY, HEATER CONTROL
81940-0D150

NLP10,SCP1#..FRP

 1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-0D010B0

NLP10,SCP1#..FRP

DK.GRAY,TRIM1#

 1
81942B - SHEET, HEATER CONTROL NAME, NO.2
81942-0D020B0

NLP10,SCP1#..FRP

DK.GRAY,TRIM1#

 1
81950C - LENS ASSY, CENTER CLUSTER MODULE INDICATOR
81950-0D010

NLP10,SCP1#..FRP

 1
84660H - SWITCH ASSY, COOLER CONTROL
84660-0D010

NLP10,SCP1#..FRP

 1
Common parts
55933-0D010
93560-14014
Linked diagrams
5501
