NLP10L-CGMRXW (2003)

Toyota Yaris (Frp)

Production Feb 2003 - Nov 2005
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0101- )FRP

Click highlighted areas on diagram

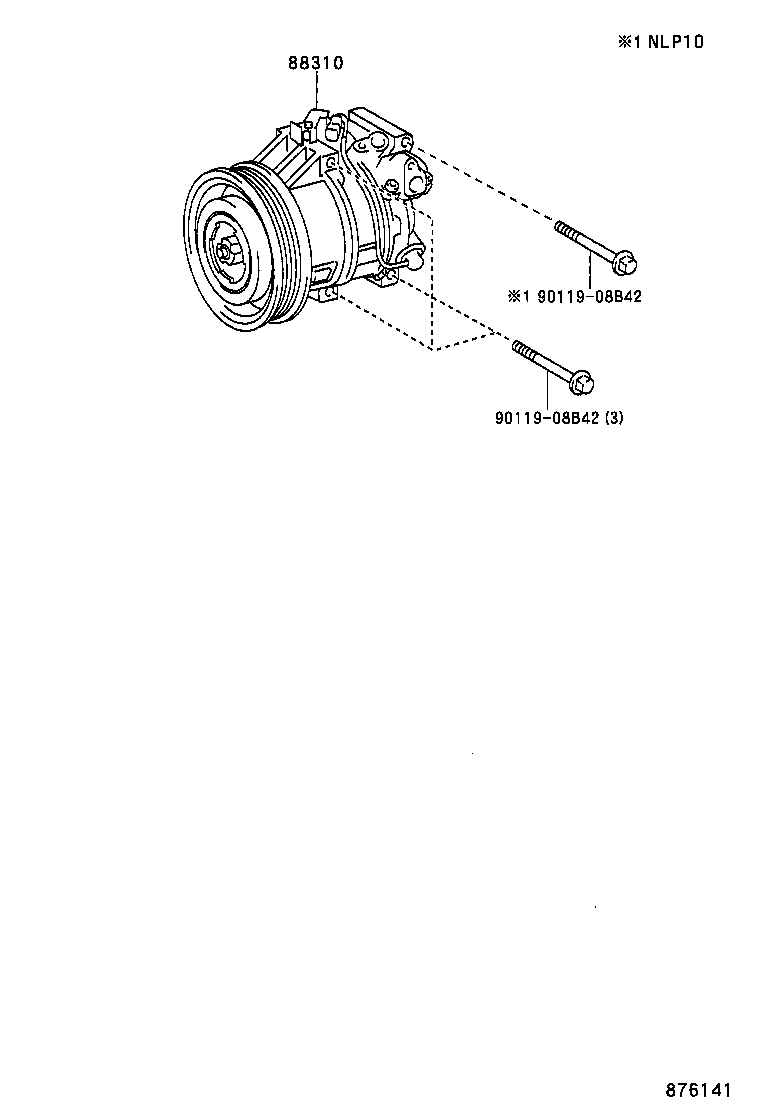

diagram 88310 9011908B42 9011908B42
Part # Description Qty Price
88310 - COMPRESSOR ASSY, W/PULLEY
88310-0D091

NLP10..FRP

 1
88310-0D090

NLP10..FRP

FRONT AIR CONDITIONER-DEALER KIT

 1
Common parts
90119-08B42
