NLP10L-CGMRXW (2003)

Toyota Yaris (Frp)

Production Feb 2003 - Nov 2005
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0101- )FRP

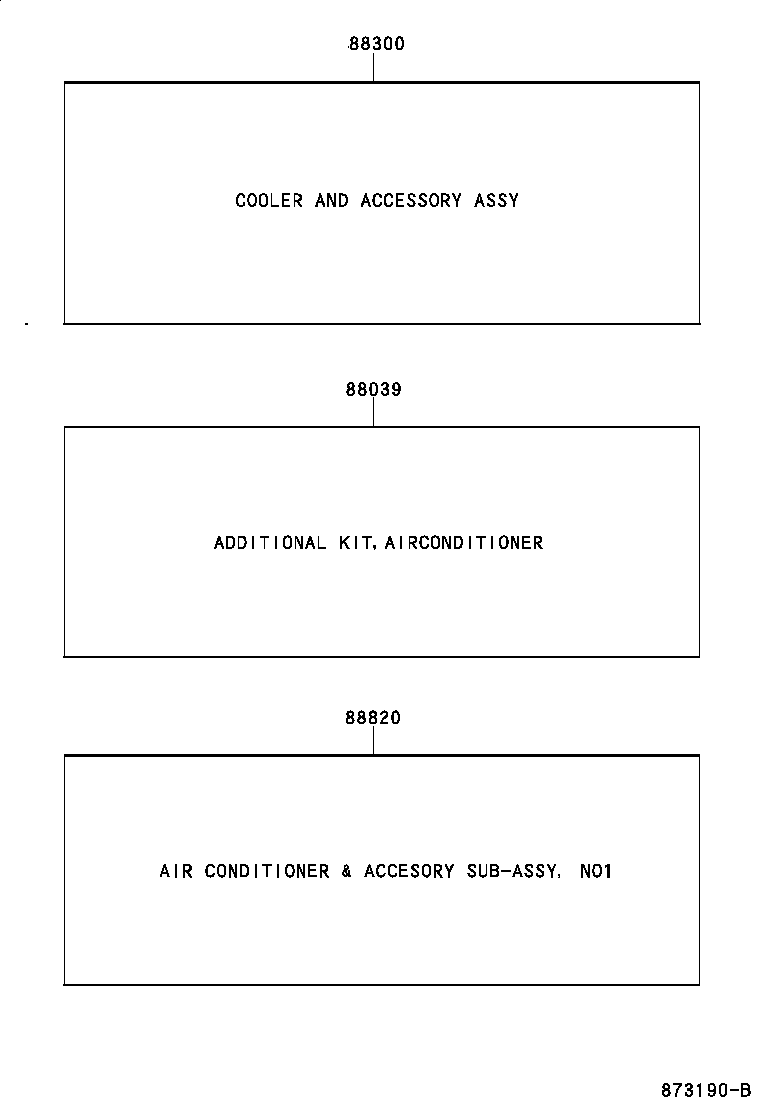

Click highlighted areas on diagram

diagram 88039 88300 88820
Part # Description Qty Price
88300 - COOLER & ACCESSORY ASSY
88300-0D100

NLP10..FRP..LHD

W(BOOST VENTILATOR)

 1
88300-0D091

NLP10..FRP..LHD

 1
88300-0D090

NLP10..FRP..LHD

 1
88300-0D101

NLP10..FRP..LHD

W(BOOST VENTILATOR)

 1
88820 - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1
88820-52121

NLP10..FRP..LHD

W(BOOST VENTILATOR)

 1
88820-52111

NLP10..FRP..LHD

 1
