NLP10L-CGMRXW (2003)

Toyota Yaris (Frp)

Production Feb 2003 - Nov 2005
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0302- )FRP..LHD

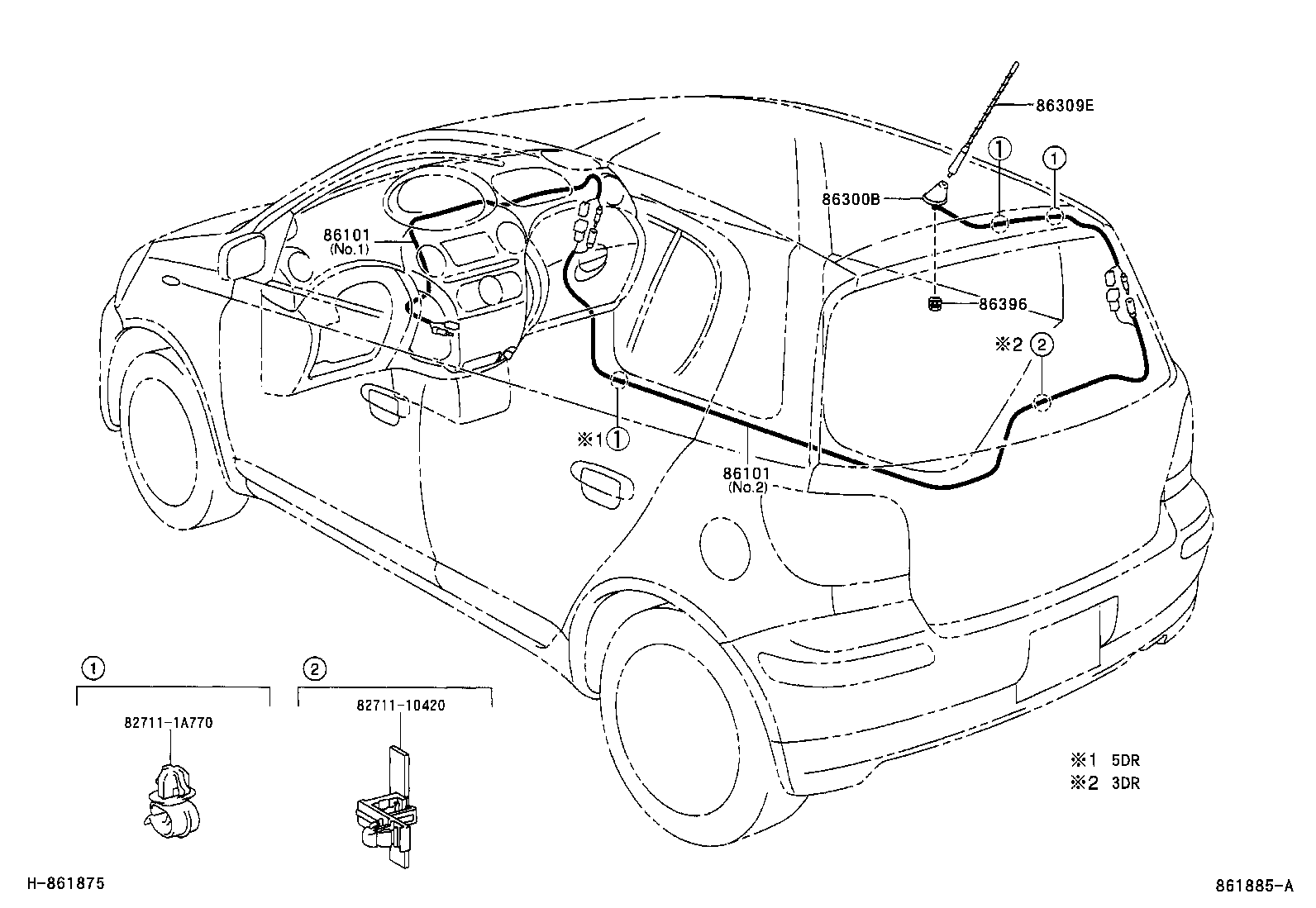

Click highlighted areas on diagram

diagram 8271110420 827111A770 86101 86101 86300B 86309E 86396
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-0D140

NLP10,SCP1#..FRP

NO.1

 1
86101-0D130

NLP10,SCP1#..FRP..LHD

NO.2

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-0D140

NLP10,SCP1#..FRP

NO.1

 1
86101-0D130

NLP10,SCP1#..FRP..LHD

NO.2

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-0D070

NLP10,SCP1#..FRP

 1
86300-0D071

NLP10,SCP1#..FRP

 1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-02040

NLP10,SCP1#..FRP

 1
86396 - NUT, ANTENNA
86396-02020

NLP10,SCP1#..FRP

 1
Common parts
82711-10420
82711-1A770
