NLP10L-CGMRXW (2003)
Toyota Yaris (Frp)

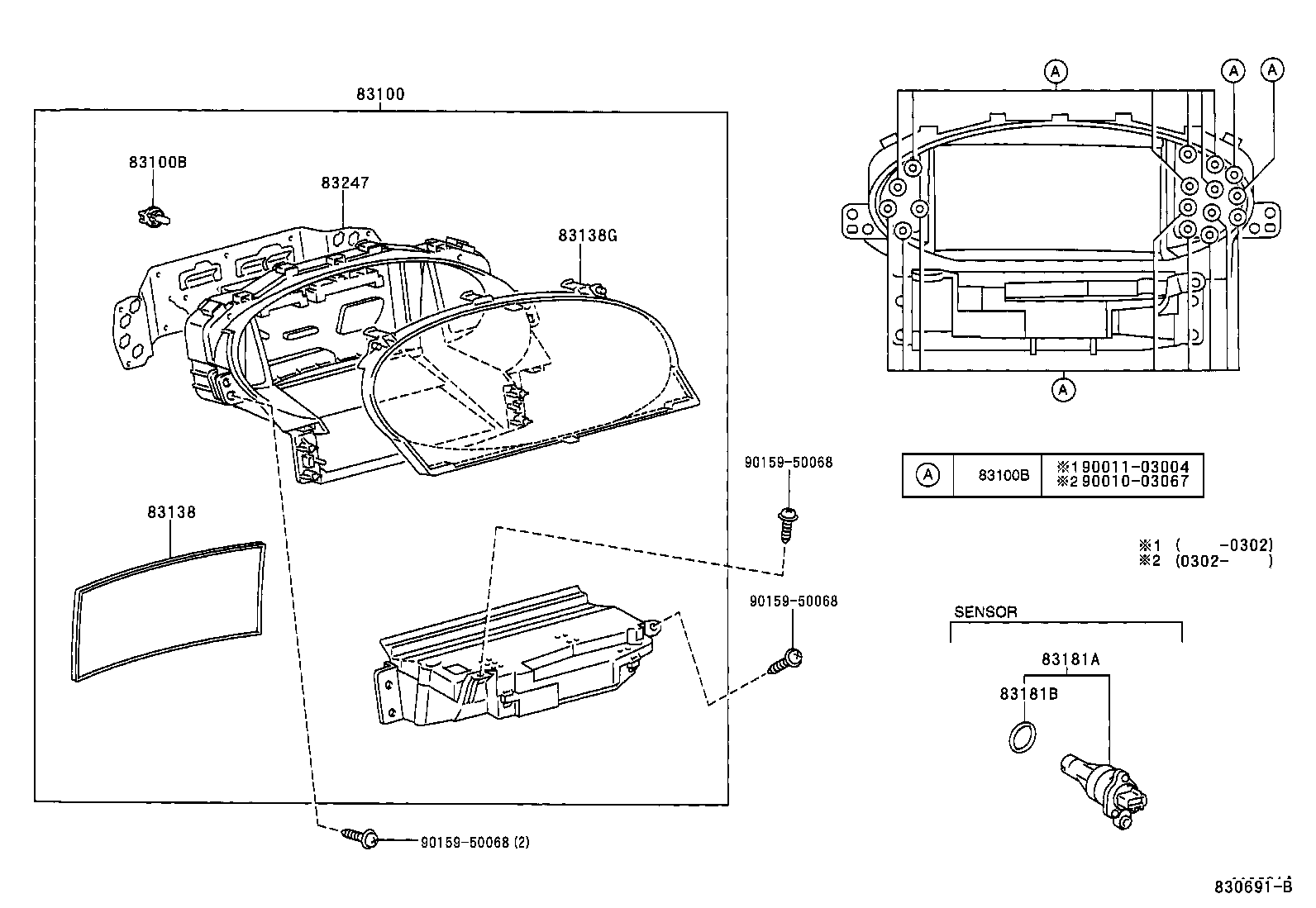

ILLUST NO. 1 OF 2(0101- )FRP..LHD
DIGITAL METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83800-0D420 |
NLP10..FRP..LHD..TRSTD DIGITAL METER,KM/H |
1 | ||
| 83800-0D450 |
NLP10..FRP..LHD DIGITAL METER,KM/H & W(POWER STERING) |
1 | ||
| 83800-0D451 |
NLP10..FRP..LHD DIGITAL METER,KM/H & W(POWER STERING) |
1 | ||
| 83800-0D421 |
NLP10..FRP..LHD..TRSTD DIGITAL METER,KM/H |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03067 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V 1.12W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-0D020 |
NLP10..FRP;SCP1#..FRP..RHD;SCP10..FRP..LHD..SOL..5FS;SCP1#..FRP..LHD..(TRSTD,TSGS) |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-0D010 |
NLP10..FRP;SCP1#..FRP..RHD;SCP10..FRP..LHD..SOL..5FS;SCP1#..FRP..LHD..(TRSTD,TSGS) DIGITAL METER |
1 | ||
| Common parts | ||||
| 90159-50068 | ||||

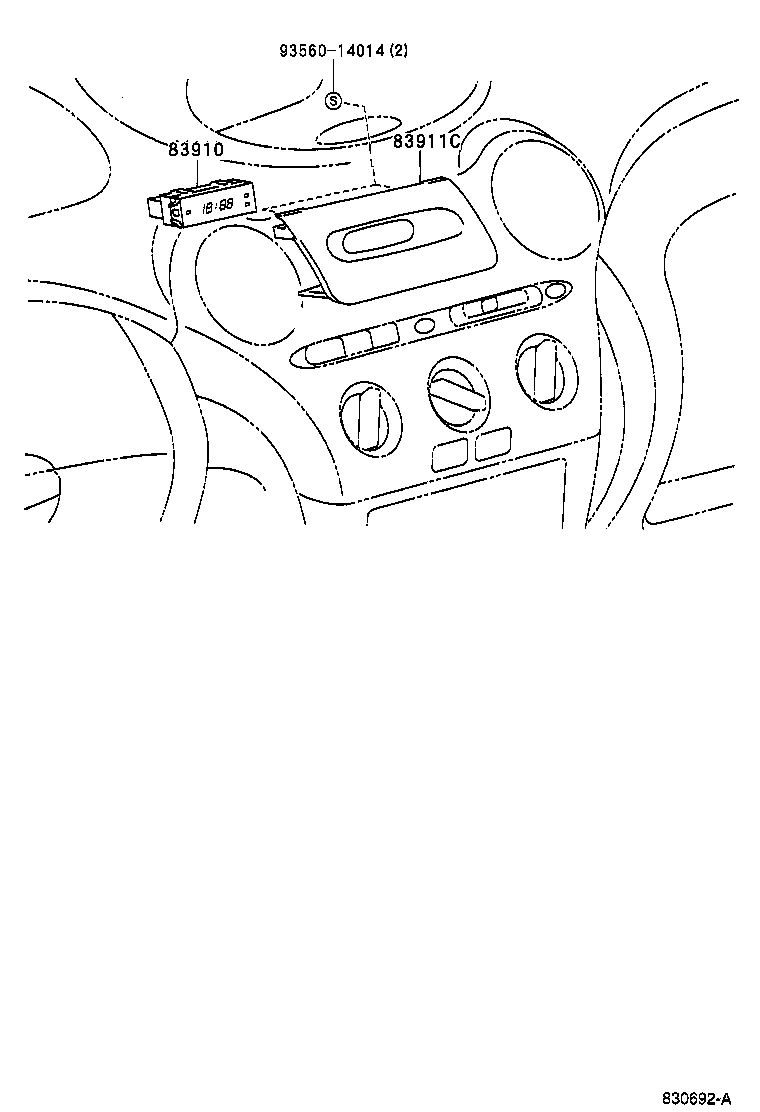

ILLUST NO. 2 OF 2(0101- )FRP..LHD
CLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-20720 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 83911C - ORNAMENT, CLOCK | ||||
| 83911-52040B0 |
NLP10,SCP1#..FRP..LHD..TRSTD DK.GRAY,TRIM10,11,17 |
1 | ||
| Common parts | ||||
| 93560-14014 | ||||
ILLUST NO. 1 OF 2(0302- )FRP
ANALOGUE METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83800-0D420 |
NLP10..FRP..LHD..TRSTD DIGITAL METER,KM/H |
1 | ||
| 83800-0D450 |
NLP10..FRP..LHD DIGITAL METER,KM/H & W(POWER STERING) |
1 | ||
| 83800-0D451 |
NLP10..FRP..LHD DIGITAL METER,KM/H & W(POWER STERING) |
1 | ||
| 83800-0D421 |
NLP10..FRP..LHD..TRSTD DIGITAL METER,KM/H |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03067 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V 1.12W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03067 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V 1.12W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03067 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V 1.12W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03067 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V 1.12W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03067 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V 1.12W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NLP10,SCP1#..FRP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NLP10,SCP1#..FRP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NLP10,SCP1#..FRP |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-0D010 |
NLP10..FRP;SCP1#..FRP..RHD;SCP10..FRP..LHD..SOL..5FS;SCP1#..FRP..LHD..(TRSTD,TSGS) DIGITAL METER |
1 | ||
| Common parts | ||||
| 90159-50068 | ||||
| 93568-55014 | ||||
