NLP10L-CGMRXW (2003)

Toyota Yaris (Frp)

Production Feb 2003 - Nov 2005
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0101- )FRP

Click highlighted areas on diagram

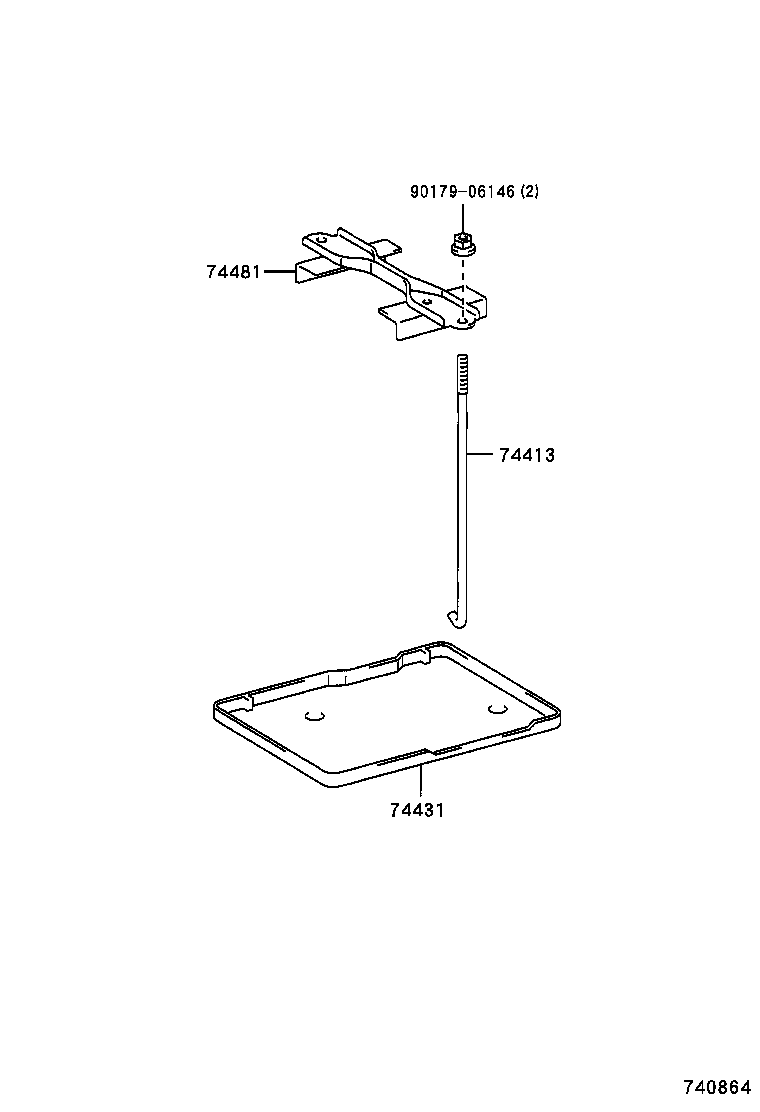

diagram 74413 74431 74481 9017906146
Part # Description Qty Price
74413 - BOLT, BATTERY CLAMP
74451-52020

NLP10..FRP;SCP10..FRP..TSGS

 2
74431 - TRAY, BATTERY
74431-05060

NLP10..FRP;SCP10..FRP..TSGS

 1
74431-0D060

NLP10..FRP

W(BATTERY=80D26R)

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-52060

NLP10,SCP1#..FRP

 1
Common parts
90179-06146
