NLP10L-CGMRXW (2003)
Toyota Yaris (Frp)
Production
Feb 2003
-
Nov 2005
Engine
1NDTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0101- )FRP

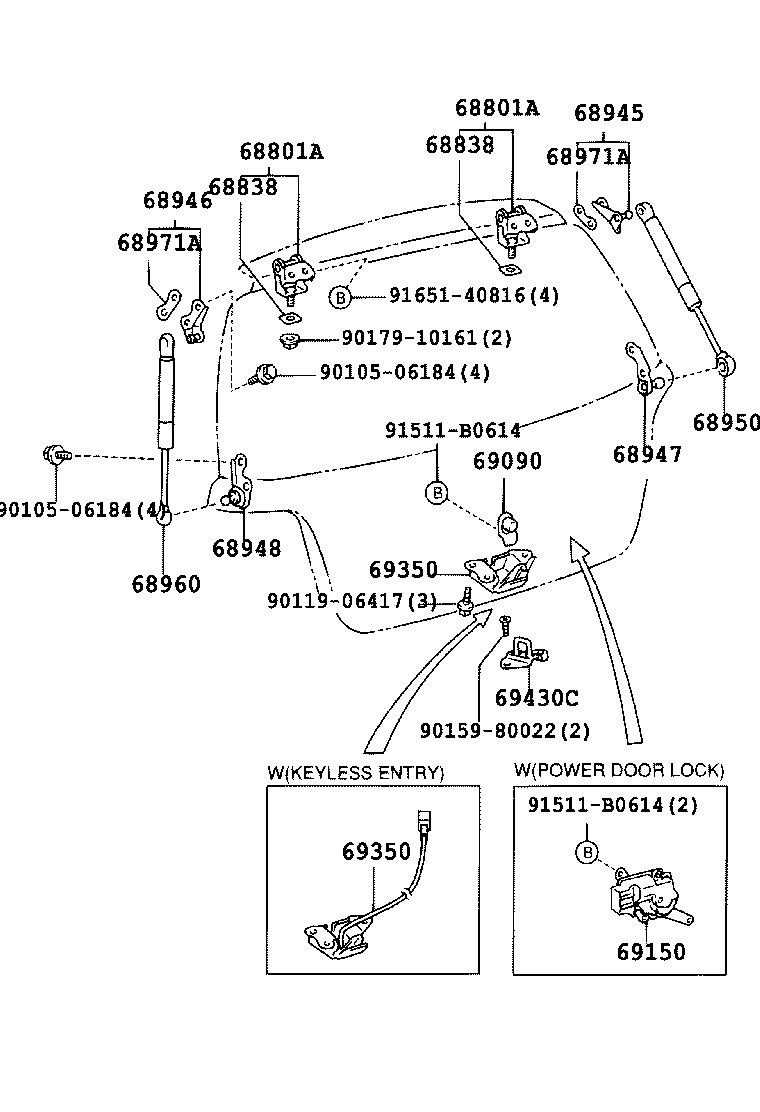

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68801A - HINGE SUB-ASSY, BACK DOOR, UPPER | ||||
| 68801-0D010 |
NLP10,SCP1#..FRP |
2 | ||
| 68801A - HINGE SUB-ASSY, BACK DOOR, UPPER | ||||
| 68801-0D010 |
NLP10,SCP1#..FRP |
2 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-0D020 |
NLP10,SCP1#..FRP T=0.5 |
2 | ||
| 68838-0D010 |
NLP10,SCP1#..FRP T=1.0 |
2 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-0D020 |
NLP10,SCP1#..FRP T=0.5 |
2 | ||
| 68838-0D010 |
NLP10,SCP1#..FRP T=1.0 |
2 | ||
| 68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH | ||||
| 68945-52010 |
NLP10,SCP1#..FRP |
1 | ||
| 68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH | ||||
| 68946-52010 |
NLP10,SCP1#..FRP |
1 | ||
| 68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH | ||||
| 68947-52010 |
NLP10,SCP1#..FRP |
1 | ||
| 68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH | ||||
| 68948-52010 |
NLP10,SCP1#..FRP |
1 | ||
| 68950C - STAY ASSY, BACK DOOR, RH | ||||
| 68950-09110 |
NLP10,SCP1#..FRP |
1 | ||
| 68960 - STAY ASSY, BACK DOOR, LH | ||||
| 68950-09120 |
NLP10,SCP1#..FRP |
1 | ||
| 68971A - PACKING, BACK DOOR STAY, NO.1 | ||||
| 68971-52020 |
NLP10,SCP1#..FRP LH |
1 | ||
| 68971-52010 |
NLP10,SCP1#..FRP RH |
1 | ||
| 68971A - PACKING, BACK DOOR STAY, NO.1 | ||||
| 68971-52020 |
NLP10,SCP1#..FRP LH |
1 | ||
| 68971-52010 |
NLP10,SCP1#..FRP RH |
1 | ||
| 69090 - HANDLE ASSY, BACK DOOR, OUTSIDE | ||||
| 69090-0D020 |
NLP10,SCP1#..FRP |
1 | ||
| 69150 - ACTUATOR ASSY, BACK DOOR LOCK | ||||
| 69150-0D011 |
NLP10,SCP1#..FRP..(SOL,TRSTD) |
1 | ||
| 69150-0D010 |
NLP10,SCP1#..FRP..(SOL,TRSTD) |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-0D031 |
NLP10,SCP1#..FRP |
1 | ||
| 69350-0D030 |
NLP10,SCP1#..FRP |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-0D031 |
NLP10,SCP1#..FRP |
1 | ||
| 69350-0D030 |
NLP10,SCP1#..FRP |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| Common parts | ||||
| 90105-06184 | ||||
| 90119-06417 | ||||
| 90159-80022 | ||||
| 90179-10161 | ||||
| 91511-B0614 | ||||
| 91651-40816 | ||||
