NLP10L-CGMRXW (2003)

Toyota Yaris (Frp)

Production Feb 2003 - Nov 2005
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0101- )FRP

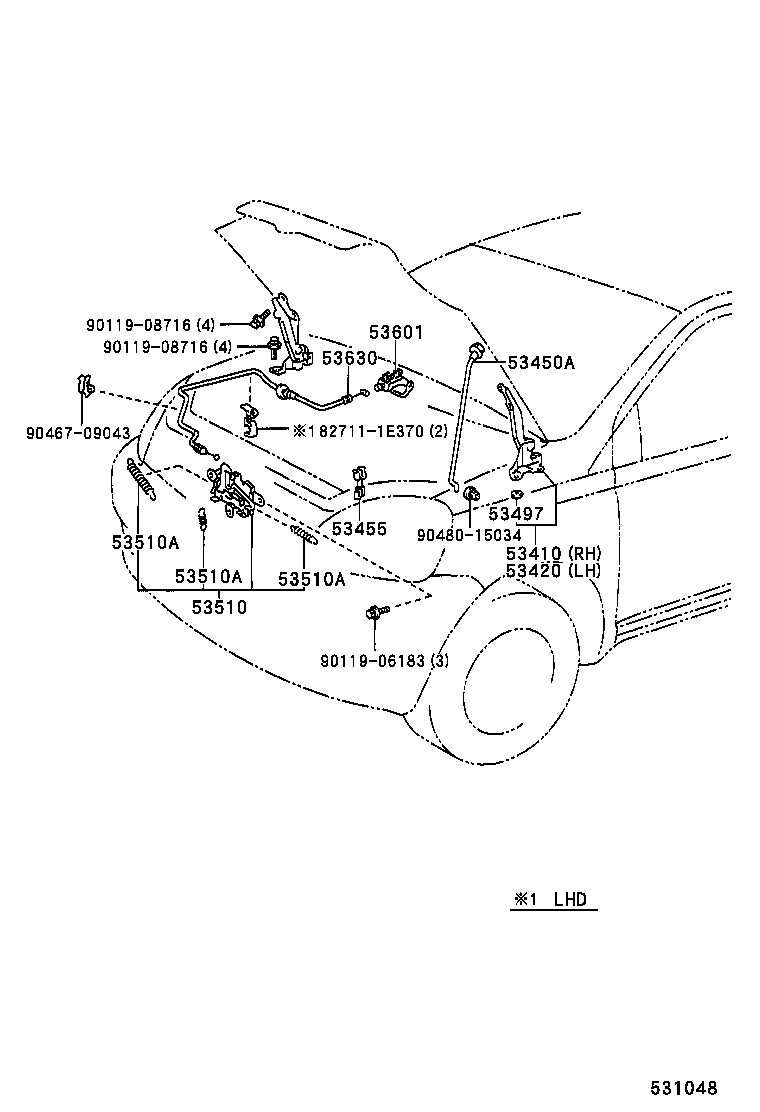

Click highlighted areas on diagram

diagram 53410 53420 53450A 53455 53497 53510 53510A 53510A 53510A 53601 53630 827111E370 9011906183 9011908716 9011908716 9046709043 9048015034
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-0D010

NLP10,SCP1#..FRP

 1
53420 - HINGE ASSY, HOOD, LH
53420-0D010

NLP10,SCP1#..FRP

 1
53450A - SUPPORT ASSY, HOOD, LH
53440-52100

NLP10,SCP1#..FRP

 1
53455 - CLAMP, HOOD SUPPORT ROD
53455-52010

NLP10,SCP1#..FRP

 1
53497 - PAD, HOOD HINGE, NO.1
53497-0D010

NLP10,SCP1#..FRP

T=1.0

 4
53510 - LOCK ASSY, HOOD
53510-0D080

NLP10,SCP1#..FRP..LHD

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90080-50265

NLP10,SCP1#..FRP

WD=1.2,CW=8.5

 1
90080-50365

NLP10,SCP1#..FRP

WD=1.8,CW=16

 1
90080-50266

NLP10,SCP1#..FRP

WD=0.9,CW=20.75

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90080-50265

NLP10,SCP1#..FRP

WD=1.2,CW=8.5

 1
90080-50365

NLP10,SCP1#..FRP

WD=1.8,CW=16

 1
90080-50266

NLP10,SCP1#..FRP

WD=0.9,CW=20.75

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90080-50265

NLP10,SCP1#..FRP

WD=1.2,CW=8.5

 1
90080-50365

NLP10,SCP1#..FRP

WD=1.8,CW=16

 1
90080-50266

NLP10,SCP1#..FRP

WD=0.9,CW=20.75

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-05030B1

NLP10,SCP1#..FRP

MD.GRAY,TRIM11

 1
53601-05030B0

SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS

DK.GRAY,TRIM10,17,18,19

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-0D010

NLP10,SCP1#..FRP

 1
53630-0D011

NLP10,SCP1#..FRP

 1
Common parts
82711-1E370
90119-06183
90119-08716
90467-09043
90480-15034
