NLP10L-CGMRXW (2003)
Toyota Yaris (Frp)

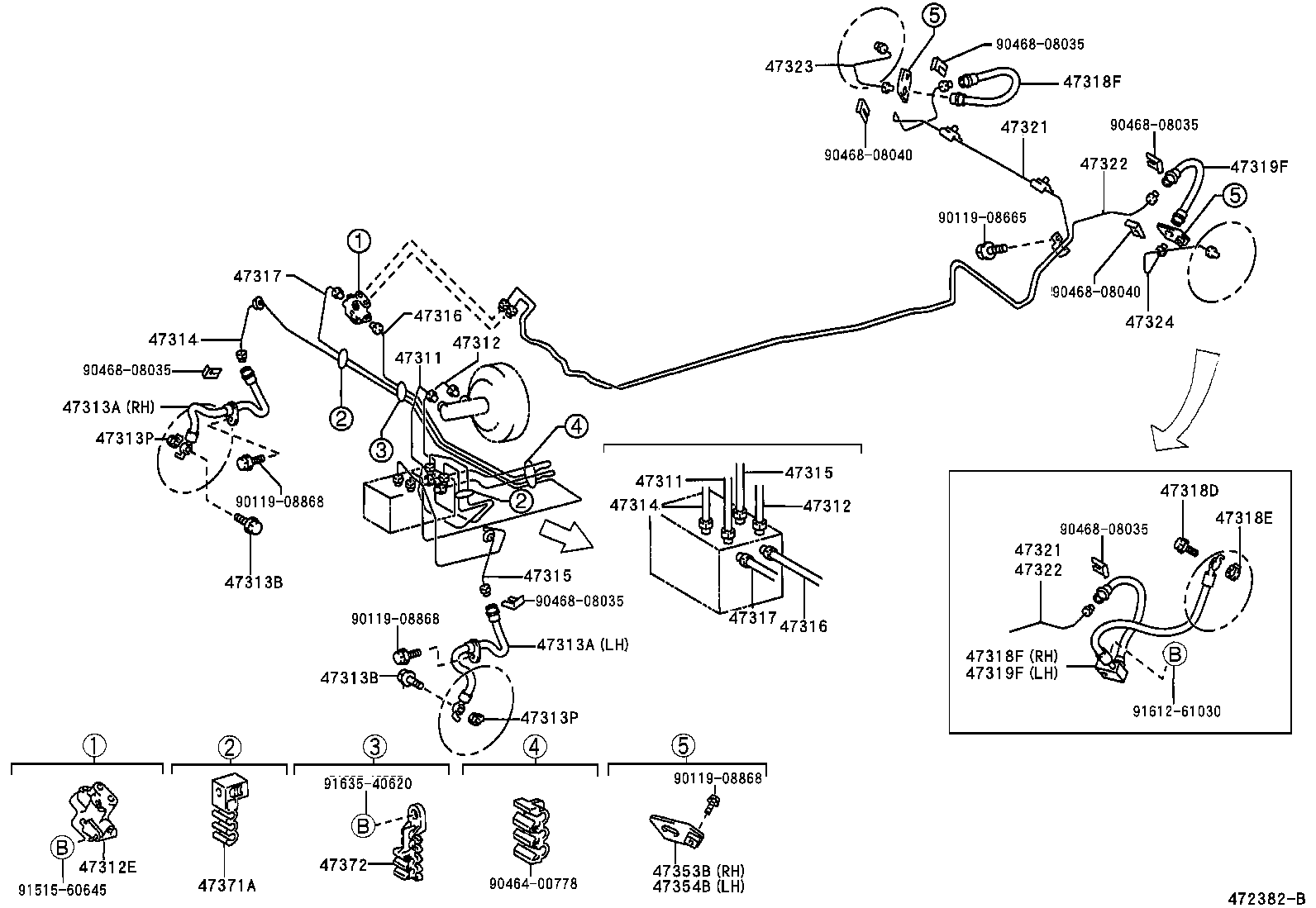

ILLUST NO. 1 OF 2(0101- )FRP..LHD
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0D140 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0D140 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0D110 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0D110 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90904-12082 |
NLP10..FRP;SCP10..FRP..5FS;SCP10..FRP..TSGS;SCP12..FRP..TRSTD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94204 |
NLP10,SCP1#..FRP RH |
1 | ||
| 90080-94203 |
NLP10,SCP1#..FRP LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94204 |
NLP10,SCP1#..FRP RH |
1 | ||
| 90080-94203 |
NLP10,SCP1#..FRP LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NLP10,SCP1#..FRP |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NLP10,SCP1#..FRP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NLP10,SCP1#..FRP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NLP10,SCP1#..FRP |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-0D120 |
NLP10..LHD;SCP10..TSGS;SCP10..LHD..5FS;SCP12..LHD..TRSTD |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-0D120 |
NLP10..LHD;SCP10..TSGS;SCP10..LHD..5FS;SCP12..LHD..TRSTD |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0D010 |
NLP10..FRP;SCP10..FRP..5FS;SCP10..FRP..TSGS;SCP12..FRP..TRSTD |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0D010 |
NLP10..FRP;SCP10..FRP..5FS;SCP10..FRP..TSGS;SCP12..FRP..TRSTD |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-0D060 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-0D060 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0D060 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0D060 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
NLP10,SCP1#..FRP..(SOL,TRSTD) |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
NLP10,SCP1#..FRP..(SOL,TRSTD) |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02C81 |
NLP10,SCP1#..FRP..(SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 90080-94205 |
NLP10,SCP1#..FRP |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02C81 |
NLP10,SCP1#..FRP..(SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 90080-94205 |
NLP10,SCP1#..FRP |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90080-94205 |
NLP10,SCP1#..FRP |
1 | ||
| 90947-02C82 |
NLP10,SCP1#..FRP..(SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90080-94205 |
NLP10,SCP1#..FRP |
1 | ||
| 90947-02C82 |
NLP10,SCP1#..FRP..(SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0D110 |
NLP10..FRP |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0D110 |
NLP10..FRP |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0D030 |
NLP10..FRP |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0D030 |
NLP10..FRP |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-0D060 |
NLP10,SCP1#..FRP |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-0D050 |
NLP10,SCP1#..FRP |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-52010 |
NLP10,SCP1#..FRP |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-52010 |
NLP10,SCP1#..FRP |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-52010 |
NLP10..LHD;SCP10..TSGS;SCP10..LHD..5FS;SCP12..LHD..TRSTD |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-52010 |
NLP10,SCP1#..FRP |
1 | ||
| Common parts | ||||
| 90119-08665 | ||||
| 90119-08868 | ||||
| 90464-00778 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 91515-60645 | ||||
| 91612-61030 | ||||
| 91635-40620 | ||||
ILLUST NO. 2 OF 2(0101- )FRP
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-0D012 |
NLP10,SCP1#..FRP |
1 | ||
| 44050-0D011 |
NLP10,SCP1#..FRP |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-05020 |
NLP10,SCP1#..FRP |
3 | ||
| 44546-05020 |
NLP10,SCP1#..FRP |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-05020 |
NLP10,SCP1#..FRP |
3 | ||
| 44546-05020 |
NLP10,SCP1#..FRP |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-05020 |
NLP10,SCP1#..FRP |
3 | ||
| 44546-05020 |
NLP10,SCP1#..FRP |
3 | ||
| 44578 - BOLT, BRAKE ACTUATOR CUSHION | ||||
| 44578-05020 |
NLP10,SCP1#..FRP |
2 | ||
| 44578-05020 |
NLP10,SCP1#..FRP |
2 | ||
| 44578 - BOLT, BRAKE ACTUATOR CUSHION | ||||
| 44578-05020 |
NLP10,SCP1#..FRP |
2 | ||
| 44578-05020 |
NLP10,SCP1#..FRP |
2 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-52040 |
NLP10,SCP1#..FRP |
1 | ||
| Common parts | ||||
| 90119-08589 | ||||
| 90179-08057 | ||||
| Linked diagrams | ||||
| 8414 | ||||
