NLP10L-CGMRXW (2003)

Toyota Yaris (Frp)

Production Feb 2003 - Nov 2005
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0101- )FRP

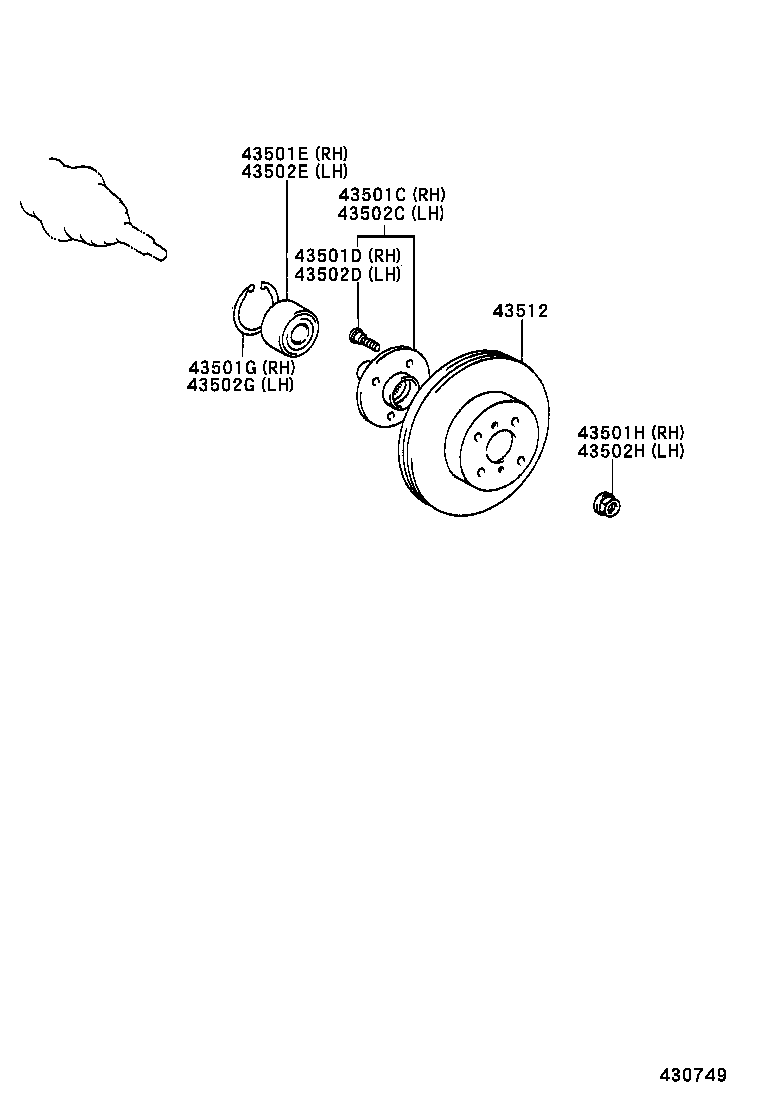

Click highlighted areas on diagram

diagram 43501C 43501D 43501E 43501G 43501H 43502C 43502D 43502E 43502G 43502H 43512
Part # Description Qty Price
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43502-0D010

NLP10,SCP1#..FRP

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02049

NLP10,SCP1#..FRP

 4
43501E - BEARING (FOR FRONT AXLE HUB RH)
90080-36108

NLP10,SCP1#..FRP

 1
43501G - RING, HOLE SNAP (FOR FRONT AXLE HUB RH)
90521-77001

NLP10,SCP1#..FRP

 1
43501H - NUT (FOR FRONT AXLE SHAFT RH)
90177-22001

NLP10,SCP1#..FRP

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43502-0D010

NLP10,SCP1#..FRP

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02049

NLP10,SCP1#..FRP

 4
43502E - BEARING (FOR FRONT AXLE HUB LH)
90080-36108

NLP10,SCP1#..FRP

 1
43502G - RING, HOLE SNAP (FOR FRONT AXLE HUB LH)
90521-77001

NLP10,SCP1#..FRP

 1
43502H - NUT (FOR FRONT AXLE SHAFT LH)
90177-22001

NLP10,SCP1#..FRP

 1
43512 - DISC, FRONT
43512-52040

NLP10,SCP1#..FRP..(SOL,TRSTD)

(J),OD=255

 2
43512-0D010

NLP10,SCP1#..FRP

OD=235

 2
43512-0D050

NLP10,SCP1#..FRP..(SOL,TRSTD)

(L),OD=255

 2
