NLP10L-CGMRXW (2003)

Toyota Yaris (Frp)

Production Feb 2003 - Nov 2005
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0101- )FRP..5F

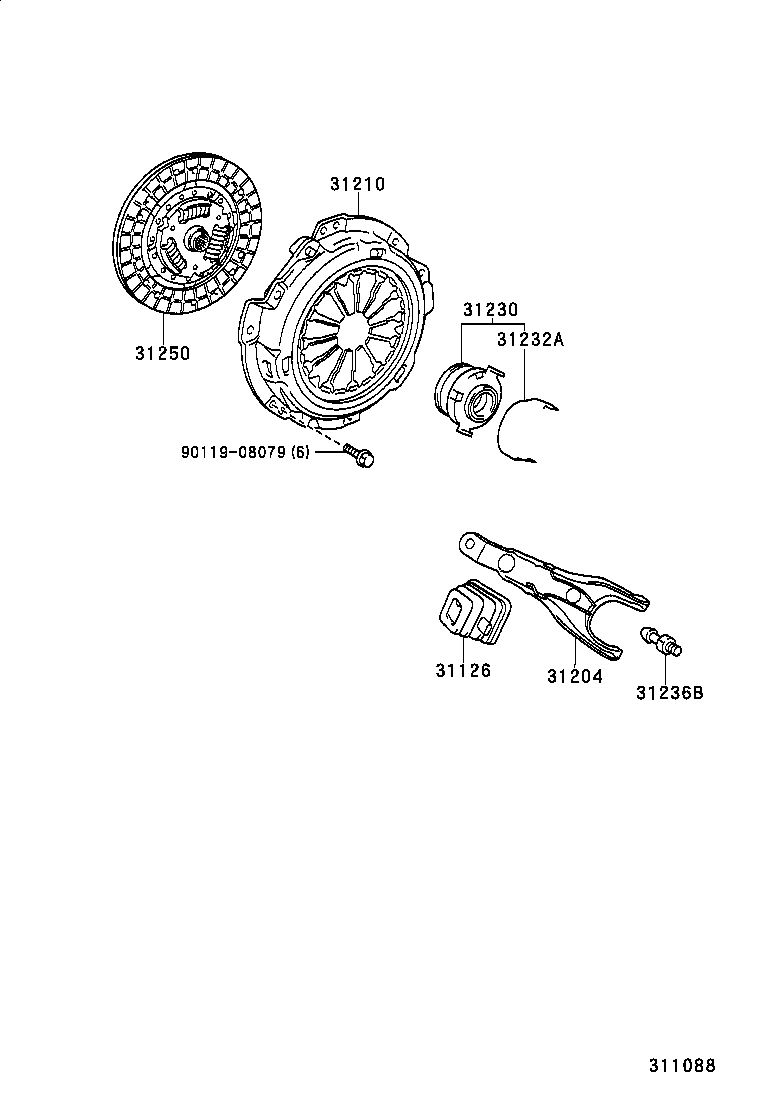

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31236B 31250 9011908079
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-12051

NLP10..FRP

 1
31126-0D010

NLP10,SCP12..FRP..5F

(L)

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-52010

NLP10..FRP

 1
31210 - COVER ASSY, CLUTCH
31210-0D040

NLP10..FRP

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-12180

NLP10..FRP

 1
31232A - CLIP, RELEASE BEARING HUB
31232-12080

NLP10..FRP

 1
31236B - SUPPORT, RELEASE FORK
31236-12020

NLP10..FRP

 1
31250 - DISC ASSY, CLUTCH
31250-0D040

NLP10..FRP

 1
Common parts
90119-08079
