NCP131L-CHPSKK (2014)
Toyota Yaris (Frp)
Production
Jul 2014
-
Mar 2017
Engine
1NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1407-1703)

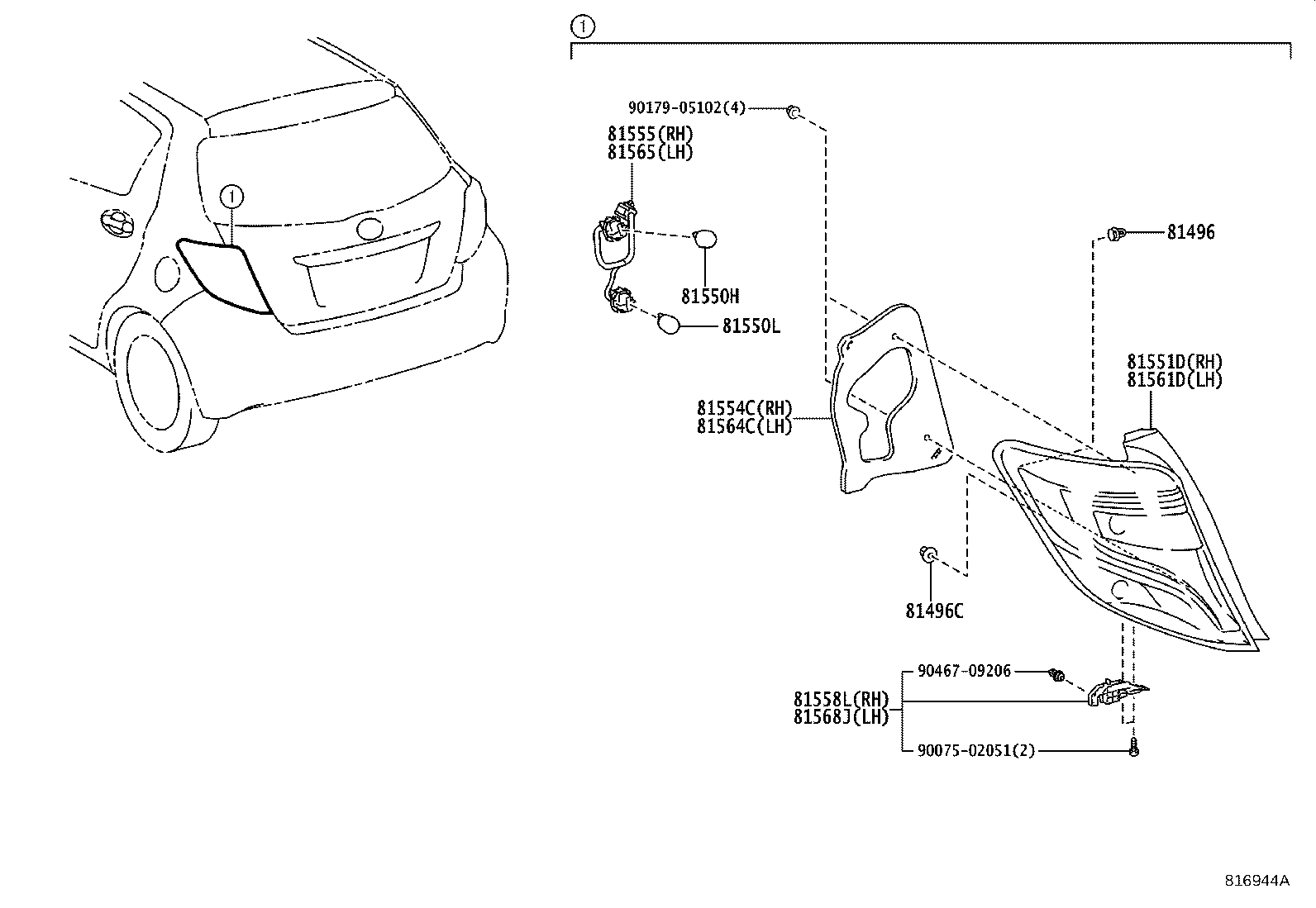

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-60010 |
NCP131 |
2 | ||
| 81496-60010 |
NCP131 |
2 | ||
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 81496-52020 |
NCP131 |
2 | ||
| 81496-52020 |
NCP131 |
2 | ||
| 81550H - BULB, TAIL & STOP LAMP | ||||
| 90981-13044 |
NCP131 12V 21/5W |
2 | ||
| 90981-13044 |
NCP131 12V 21/5W |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15021 |
NCP131 12V 21W,AMBER |
2 | ||
| 90981-13093 |
NCP131 12V 21W |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-52820 |
NCP131 |
1 | ||
| 81551-0D620 |
NCP131 |
1 | ||
| 81554C - PACKING, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-0D600 |
NCP131 |
1 | ||
| 81554-52820 |
NCP131 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-52820 |
NCP131 |
1 | ||
| 81555-0D600 |
NCP131 |
1 | ||
| 81558L - PROTECTOR, REAR COMBINATION LAMP, RH | ||||
| 81558-0D600 |
NCP131 |
1 | ||
| 81558-52810 |
NCP131 |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-52760 |
NCP131 |
1 | ||
| 81561-0D620 |
NCP131 |
1 | ||
| 81564C - PACKING, REAR COMBINATION LAMP BODY, LH | ||||
| 81554-0D600 |
NCP131 |
1 | ||
| 81564-52760 |
NCP131 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-0D600 |
NCP131 |
1 | ||
| 81565-52760 |
NCP131 |
1 | ||
| 81568J - PROTECTOR, REAR COMBINATION LAMP, LH | ||||
| 81568-52750 |
NCP131 |
1 | ||
| 81568-0D600 |
NCP131 |
1 | ||
| Common parts | ||||
| 90075-02051 | ||||
| 90179-05102 | ||||
| 90467-09206 | ||||
