NCP131L-CHPSKK (2014)

Toyota Yaris (Frp)

Production Jul 2014 - Mar 2017
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )

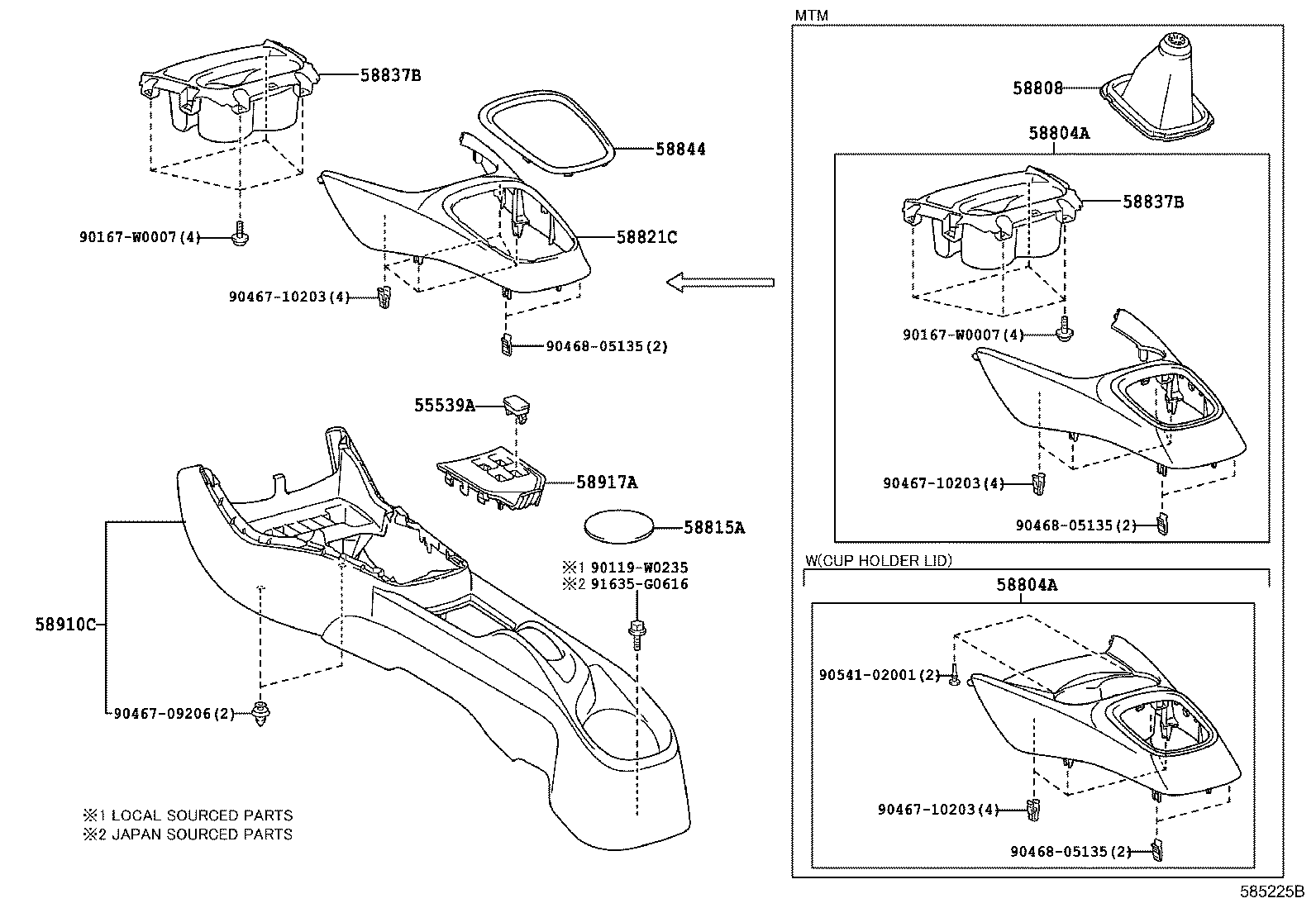

Click highlighted areas on diagram

diagram 55539A 58804A 58804A 58808 58815A 58821C 58837B 58837B 58844 58910C 58917A 90119W0235 90167W0007 90167W0007 9046709206 9046710203 9046710203 9046710203 9046805135 9046805135 9046805135 9054102001 91635G0616
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-52070C0

NCP131

BLACK

 3
55539-52070C0

NCP131

BLACK

 1
58815A - CARPET, CONSOLE BOX
58815-0D280

NCP131

 1
58815-0D170

NCP131

 1
58821C - PANEL, CONSOLE, UPPER
58821-0D070C3

NCP131..4FC..S

EU / INT PIANO BLACK,TRIM2#

 1
58837B - BOX, CONSOLE CUP HOLDER
58837-0D060C1

NCP131..4FC..CND

EU BLACK,TRIM2#

 1
58837-0D010C0

NCP131

BLACK,TRIM1#

 1
58837B - BOX, CONSOLE CUP HOLDER
58837-0D060C1

NCP131..4FC..CND

EU BLACK,TRIM2#

 1
58837-0D010C0

NCP131

BLACK,TRIM1#

 1
58844 - BEZEL, CONSOLE BOX
58844-0D120

NCP131..4FC

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-0D290C1

NCP131..CND

EU BLACK,TRIM2#

 1
58917A - COVER, CONSOLE BOX, REAR
58917-0D160C1

NCP131..CND

EU BLACK,TRIM2#

 1
58917-0D100C0

NCP131

BLACK,TRIM1#

 1
Common parts
90119-W0235
90167-W0007
90467-09206
90467-10203
90468-05135
90541-02001
91635-G0616
