Toyota Yaris (frp) NCP131 HEADLAMP

NCP131L-CHPRKK (2017)

Toyota Yaris (Frp)

Production Mar 2017 - Jul 2019

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(1703- )

Click highlighted areas on diagram

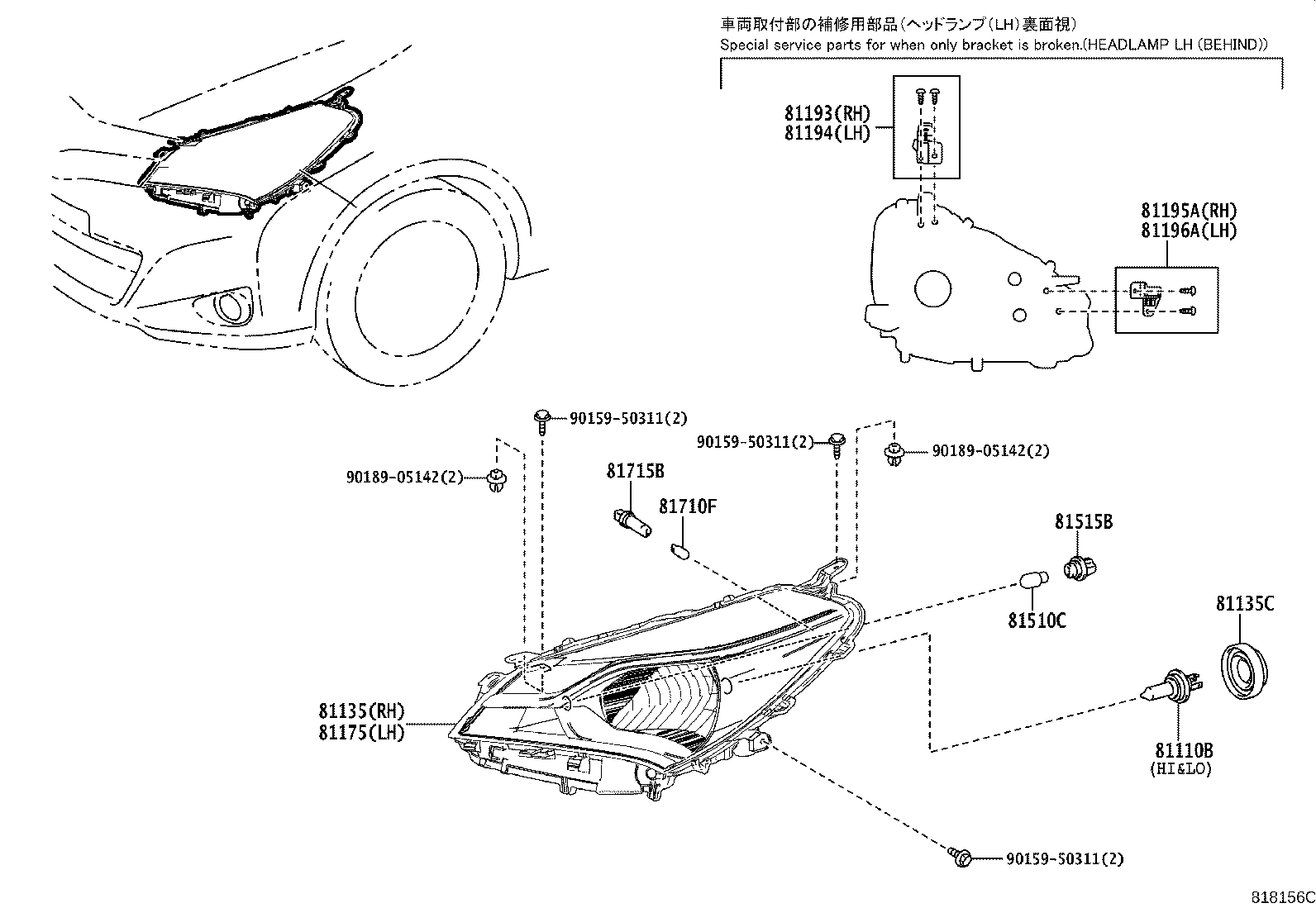

MULTI REFLECTOR TYPE

Part #	Description	Period	Qty
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058	NCP131 12V 60/55W,HALOGEN	05/2013 - 07/2014	2
90981-13058	NCP131..R 12V 60/55W,HALOGEN	03/2017 - 07/2019	2
90981-13091	NCP131..R 12V 55W,HALOGEN,HEADLAMP-PROJECTOR(LED DRL) & AHB	03/2017 - 07/2019	2
90981-13091	NCP131..R 12V 55W,HALOGEN,HEADLAMP-PROJECTOR(LED *DRL)	03/2017 - 11/2018	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-0DK40	NCP131..R HEADLAMP-PROJECTOR(LED DRL) & AHB	03/2017 - 07/2019	1
81130-0DK40	NCP131..R HEADLAMP-PROJECTOR(LED *DRL)	03/2017 - 11/2018	1
81130-0DK30	NCP131..R	03/2017 - 07/2019	1
81135C - COVER, HEADLAMP BACK, NO.1
90075-65002	NCP131	05/2013 - 07/2014	2
90075-65002	NCP131..R	03/2017 - 07/2019	2
90075-65006	NCP131..R HEADLAMP-PROJECTOR(LED *DRL)	03/2017 - 11/2018	2
90075-65006	NCP131..R HEADLAMP-PROJECTOR(LED DRL) & AHB	03/2017 - 07/2019	2
81175 - UNIT ASSY, HEADLAMP, LH
81170-0DK30	NCP131..R	03/2017 - 07/2019	1
81170-0DK40	NCP131..R HEADLAMP-PROJECTOR(LED *DRL)	03/2017 - 11/2018	1
81170-0DK40	NCP131..R HEADLAMP-PROJECTOR(LED DRL) & AHB	03/2017 - 07/2019	1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-52200	NCP131	05/2013 - 07/2014	1
81193-0D100	NCP131	03/2017 - 07/2019	1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-52200	NCP131	05/2013 - 07/2014	1
81194-0D100	NCP131	03/2017 - 07/2019	1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-52160	NCP131	05/2013 - 07/2014	1
81195-0D090	NCP131	03/2017 - 07/2019	1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-0D090	NCP131	03/2017 - 07/2019	1
81196-52160	NCP131	05/2013 - 07/2014	1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15024	NCP131 12V 28/8W	03/2017 - 07/2019	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60083	NCP131	05/2013 - 07/2014	2
90075-60083	NCP131..R	03/2017 - 07/2019	2
81710F - BULB, FRONT SIDE MAKER LAMP
90981-11070	NCP131..5D;NCP131..3D..R	03/2017 - 07/2019	2
99132-12050	NCP131	05/2013 - 07/2014	2
81715B - SOCKET & WIRE, FRONT SIDE MARKER LAMP
90075-60077	NCP131..5D;NCP131..3D..R	03/2017 - 07/2019	2
90075-60077	NCP131	05/2013 - 07/2014	2
Common parts
90159-50311
90189-05142

(1703- )

Click highlighted areas on diagram

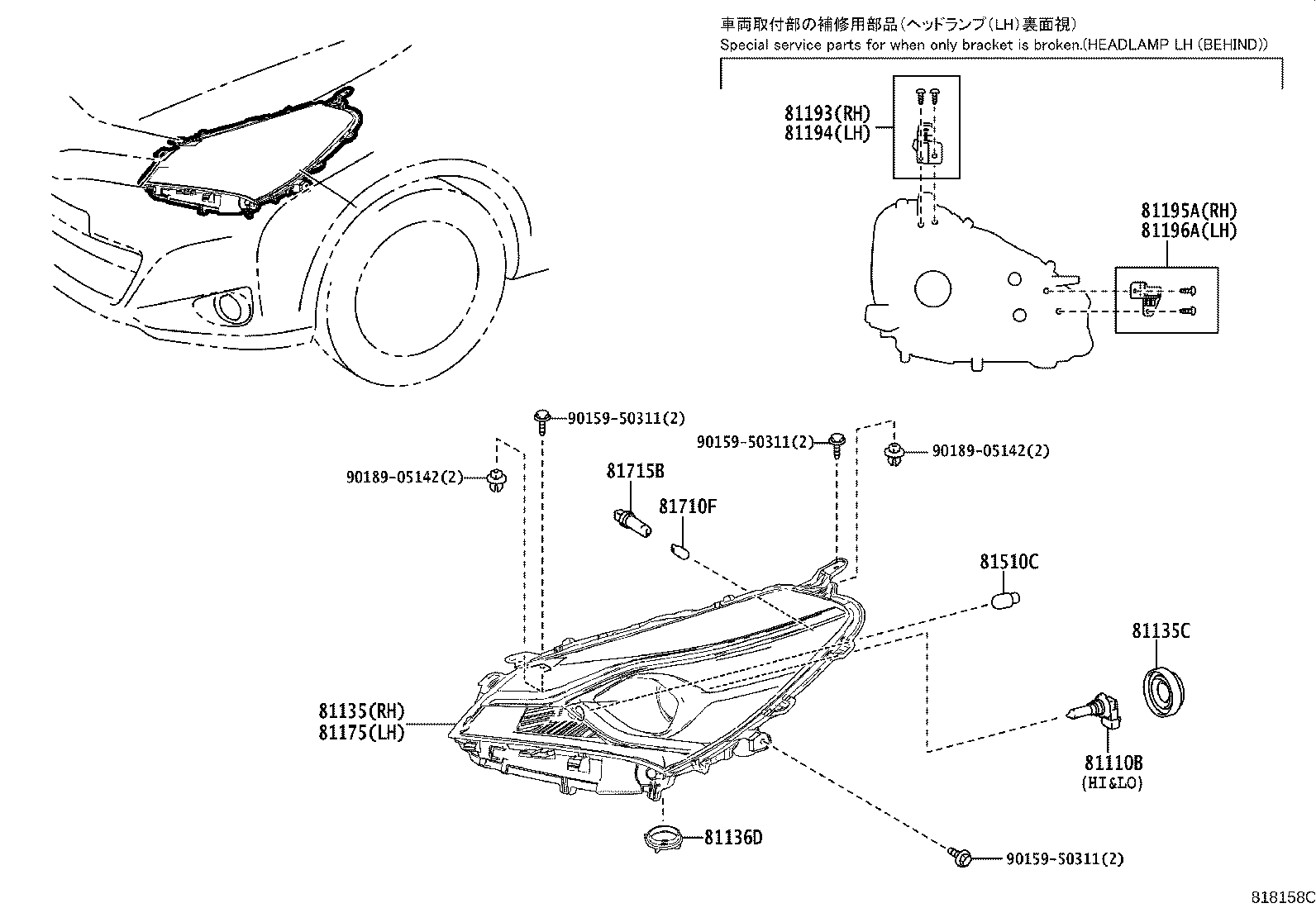

PROJECTOR TYPE

Part #	Description	Period	Qty
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058	NCP131 12V 60/55W,HALOGEN	05/2013 - 07/2014	2
90981-13058	NCP131..R 12V 60/55W,HALOGEN	03/2017 - 07/2019	2
90981-13091	NCP131..R 12V 55W,HALOGEN,HEADLAMP-PROJECTOR(LED DRL) & AHB	03/2017 - 07/2019	2
90981-13091	NCP131..R 12V 55W,HALOGEN,HEADLAMP-PROJECTOR(LED *DRL)	03/2017 - 11/2018	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-0DK40	NCP131..R HEADLAMP-PROJECTOR(LED DRL) & AHB	03/2017 - 07/2019	1
81130-0DK40	NCP131..R HEADLAMP-PROJECTOR(LED *DRL)	03/2017 - 11/2018	1
81130-0DK30	NCP131..R	03/2017 - 07/2019	1
81135C - COVER, HEADLAMP BACK, NO.1
90075-65002	NCP131	05/2013 - 07/2014	2
90075-65002	NCP131..R	03/2017 - 07/2019	2
90075-65006	NCP131..R HEADLAMP-PROJECTOR(LED *DRL)	03/2017 - 11/2018	2
90075-65006	NCP131..R HEADLAMP-PROJECTOR(LED DRL) & AHB	03/2017 - 07/2019	2
81136D - COVER, HEADLAMP
90075-66017	NCP131..R HEADLAMP-PROJECTOR(LED *DRL)	03/2017 - 11/2018	2
90075-66017	NCP131..R HEADLAMP-PROJECTOR(LED DRL) & AHB	03/2017 - 07/2019	2
81175 - UNIT ASSY, HEADLAMP, LH
81170-0DK30	NCP131..R	03/2017 - 07/2019	1
81170-0DK40	NCP131..R HEADLAMP-PROJECTOR(LED *DRL)	03/2017 - 11/2018	1
81170-0DK40	NCP131..R HEADLAMP-PROJECTOR(LED DRL) & AHB	03/2017 - 07/2019	1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-52200	NCP131	05/2013 - 07/2014	1
81193-0D100	NCP131	03/2017 - 07/2019	1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-52200	NCP131	05/2013 - 07/2014	1
81194-0D100	NCP131	03/2017 - 07/2019	1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-52160	NCP131	05/2013 - 07/2014	1
81195-0D090	NCP131	03/2017 - 07/2019	1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-0D090	NCP131	03/2017 - 07/2019	1
81196-52160	NCP131	05/2013 - 07/2014	1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15024	NCP131 12V 28/8W	03/2017 - 07/2019	2
81710F - BULB, FRONT SIDE MAKER LAMP
90981-11070	NCP131..5D;NCP131..3D..R	03/2017 - 07/2019	2
99132-12050	NCP131	05/2013 - 07/2014	2
81715B - SOCKET & WIRE, FRONT SIDE MARKER LAMP
90075-60077	NCP131..5D;NCP131..3D..R	03/2017 - 07/2019	2
90075-60077	NCP131	05/2013 - 07/2014	2
Common parts
90159-50311
90189-05142
