NCP131L-CHPRKA (2017)
Toyota Yaris (Frp)

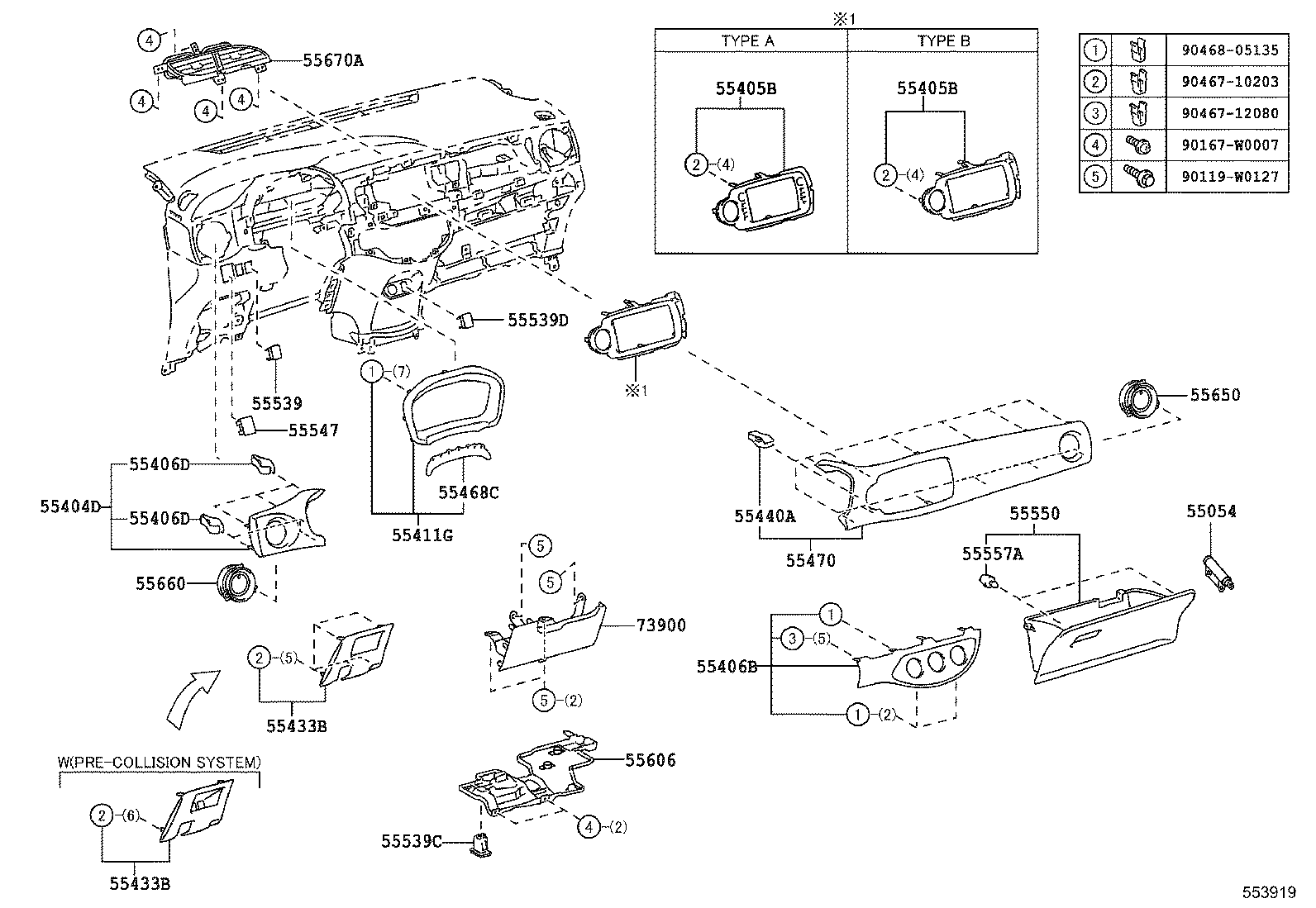

ILLUST NO. 2 OF 2(1703- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-52020 |
NCP131 |
1 | ||
| 55054-52020 |
NCP131 |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-0D010B0 |
NCP131..USA REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),MD.GRAY,TRIM1# |
1 | ||
| 55404-0D070B7 |
NCP131..USA INSTRUMENT PANEL-SOFT PVC(ORNAMENT),MID GREY,TRIM20 |
1 | ||
| 55404-0D030B0 |
NCP131..USA MD.GRAY,TRIM1# |
1 | ||
| 55404-0D020B1 |
NCP131..USA EUROPE GRAY,TRIM2# |
1 | ||
| 55404-0D070J0 |
NCP131..USA INSTRUMENT PANEL-SOFT PVC(ORNAMENT),GEO BLUE,TRIM20 |
1 | ||
| 55404-0D070C2 |
NCP131..S BLACK,TRIM20 |
1 | ||
| 55404-0D070C2 |
NCP131..USA INSTRUMENT PANEL-SOFT PVC(ORNAMENT),BLACK,TRIM20 |
1 | ||
| 55404-0D070J0 |
NCP131..S GEO BLUE,TRIM20 |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-0D420 |
NCP131 |
1 | ||
| 86451-0D080C0 |
NCP131 AUDIO-*DA(DELUXE TYPE),BLACK,TRIM2#,TYPE A:REFER ILLUST. |
1 | ||
| 86451-0D040C0 |
NCP131 BLACK,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-0D420 |
NCP131 |
1 | ||
| 86451-0D080C0 |
NCP131 AUDIO-*DA(DELUXE TYPE),BLACK,TRIM2#,TYPE A:REFER ILLUST. |
1 | ||
| 86451-0D040C0 |
NCP131 BLACK,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-0D390C2 |
NCP131 BLACK,TRIM2# |
1 | ||
| 55406-0D490C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-13082A0 |
NCP131..USA INSTRUMENT PANEL-SOFT PVC(ORNAMENT),MELLOW WHITE |
6 | ||
| 67773-07020 |
NCP131..USA |
6 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-13082A0 |
NCP131..USA INSTRUMENT PANEL-SOFT PVC(ORNAMENT),MELLOW WHITE |
6 | ||
| 67773-07020 |
NCP131..USA |
6 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-0D140C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 55411-0D250C1 |
NCP131 EU BLACK,TRIM2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-0D380C0 |
NCP131 EU BLACK,TRIM2# |
1 | ||
| 55433-0D030C1 |
NCP131 PRE-COLLISION SYSTEM-WITHOUT,EU BLACK,TRIM2# |
1 | ||
| 55433-0D030C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 55440A - CLIP(FOR INSTRUMENT PANEL CENTER GARNISH) | ||||
| 90467-13082A0 |
NCP131..USA INSTRUMENT PANEL-SOFT PVC(ORNAMENT),MELLOW WHITE |
13 | ||
| 67773-07020 |
NCP131..USA |
13 | ||
| 55468C - SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55468-0D170 |
NCP131 |
1 | ||
| 55468-0D060 |
NCP131 |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-0D070B1 |
NCP131..USA EUROPE GRAY,TRIM2# |
1 | ||
| 55470-0D090C2 |
NCP131..USA INSTRUMENT PANEL-SOFT PVC(ORNAMENT),BLACK,TRIM20 |
1 | ||
| 55470-0D090B7 |
NCP131..USA INSTRUMENT PANEL-SOFT PVC(ORNAMENT),MID GREY,TRIM20 |
1 | ||
| 55470-0D030B0 |
NCP131 MD.GRAY,TRIM1# |
1 | ||
| 55470-0D090C2 |
NCP131..S BLACK,TRIM20 |
1 | ||
| 55470-0D090J0 |
NCP131..S GEO BLUE,TRIM20 |
1 | ||
| 55470-0D090J0 |
NCP131..USA INSTRUMENT PANEL-SOFT PVC(ORNAMENT),GEO BLUE,TRIM20 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52070C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 55539-52070C0 |
NCP131 BLACK |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-52070C0 |
NCP131 BLACK |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-28010C0 |
NCP131..R BLACK |
1 | ||
| 55547-28010C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-0D280C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 55550-0D281C1 |
NCP131 EU BLACK,TRIM2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
NCP131 |
2 | ||
| 55557-60050 |
NCP131 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-0D050 |
NCP131 |
1 | ||
| 55606-0D050 |
NCP131 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55680-52240C3 |
NCP131..USA BLACK,TRIM2# |
1 | ||
| 55680-52260C3 |
NCP131..USA SE PACKAGE,BLACK,TRIM2# |
1 | ||
| 55680-52260C3 |
NCP131..USA LE PACKAGE,BLACK,TRIM2# |
1 | ||
| 55680-52240C2 |
NCP131..USA BLACK,TRIM2# |
1 | ||
| 55680-52260C4 |
NCP131..USA LE PACKAGE,BLACK,TRIM2# |
1 | ||
| 55680-52260C4 |
NCP131..5D..USA;NCP131..3D..5F..USA SE PACKAGE,BLACK,TRIM2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55680-52250C2 |
NCP131..USA BLACK,TRIM2# |
1 | ||
| 55680-52270C4 |
NCP131..5D..USA;NCP131..3D..5F..USA SE PACKAGE,BLACK,TRIM2# |
1 | ||
| 55680-52270C3 |
NCP131..USA LE PACKAGE,BLACK,TRIM2# |
1 | ||
| 55680-52250C3 |
NCP131..USA BLACK,TRIM2# |
1 | ||
| 55680-52270C3 |
NCP131..USA SE PACKAGE,BLACK,TRIM2# |
1 | ||
| 55680-52270C4 |
NCP131..USA LE PACKAGE,BLACK,TRIM2# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-0D260C1 |
NCP131..5D..USA;NCP131..3D..5F..USA SE PACKAGE,EU BLACK,TRIM2# |
1 | ||
| 55670-0D260C1 |
NCP131..USA LE PACKAGE,EU BLACK,TRIM2# |
1 | ||
| 55670-0D070C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 55670-0D240C1 |
NCP131..USA EU BLACK,TRIM2# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-0D031C1 |
NCP131 EU BLACK,TRIM2# |
1 | ||
| 73900-0D030C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-W0127 | ||||
| 90167-W0007 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90468-05135 | ||||
