Toyota Yaris (frp) NCP131 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
US
YARIS (FRP)
NCP131L-CHPRKA (2014)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

NCP131L-CHPRKA (2014)

Toyota Yaris (Frp)

Production Jul 2014 - Mar 2017

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

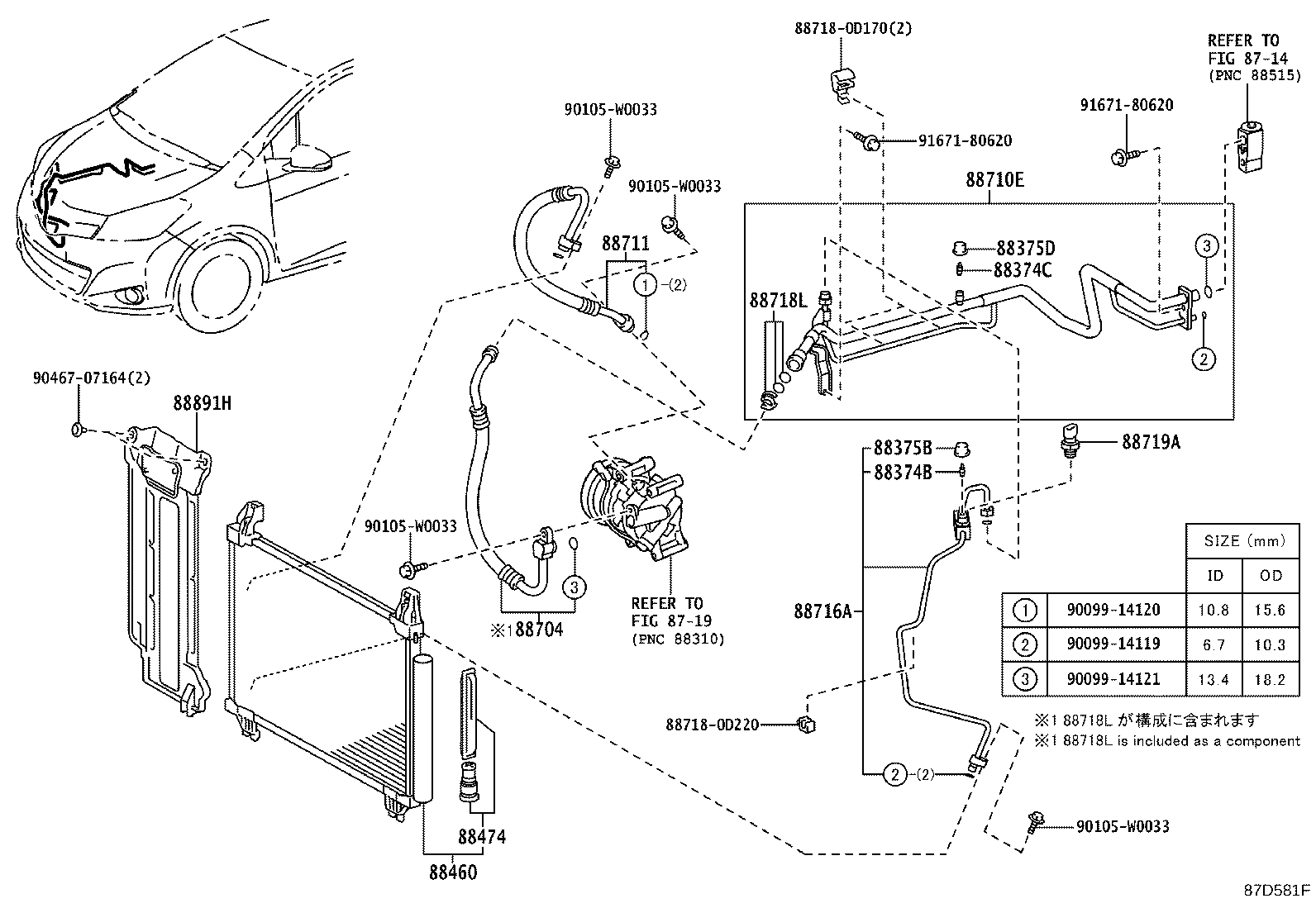

(1305-1505)

Click highlighted areas on diagram

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	NCP131	07/2014 - 03/2017	1
88374-30010	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88374-30010	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88374-30010	NCP131	05/2013 - 07/2014	1
88374C - VALVE, SERVICE, NO.2
88374-30010	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88374-30010	NCP131	05/2013 - 07/2014	1
88374-30010	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88374-30010	NCP131	07/2014 - 03/2017	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88375-30280	NCP131	07/2014 - 03/2017	1
88375-30280	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88375-30280	NCP131	05/2013 - 07/2014	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88375-30290	NCP131	05/2013 - 07/2014	1
88375-30290	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88375-30290	NCP131	07/2014 - 03/2017	1
88460 - CONDENSER ASSY, COOLER
88460-52130	NCP131	07/2014 - 05/2015	1
88460-52130	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88460-0D400	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88460-0D400	NCP131	05/2015 - 03/2017	1
88460-52130	NCP131	05/2013 - 07/2014	1
88460-52130	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88460-0D400	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88474 - DRYER, COOLER
88474-12030	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88474-12030	NCP131	05/2013 - 07/2014	1
88474-12030	NCP131	07/2014 - 05/2015	1
88474-12010	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88474-12010	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88474-12010	NCP131	05/2015 - 03/2017	1
88474-12030	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88704 - HOSE SUB-ASSY, SUCTION
88704-0D080	NCP131 (L)	07/2014 - 05/2015	1
88704-52250	NCP131 (J)	05/2013 - 07/2014	1
88704-0D100	NCP131	05/2015 - 03/2017	1
88704-52250	NCP131 (J)	07/2014 - 05/2015	1
88704-0D100	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88704-0D080	NCP131 (L)	05/2013 - 07/2014	1
88704-0D080	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY,(L)	07/2014 - 05/2015	1
88704-0D100	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88704-0D080	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY,(L)	07/2014 - 05/2015	1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-0D240	NCP131	05/2015 - 03/2017	1
88710-0D240	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88710-52040	NCP131	05/2013 - 07/2014	1
88710-0D240	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88710-52040	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88710-52040	NCP131	07/2014 - 05/2015	1
88710-52040	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0D500	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY,(L)	07/2014 - 05/2015	1
88711-0D500	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY,(L)	07/2014 - 05/2015	1
88711-52380	NCP131 (J)	07/2014 - 05/2015	1
88711-0D560	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88711-52380	NCP131 (J)	05/2013 - 07/2014	1
88711-0D500	NCP131 (L)	07/2014 - 05/2015	1
88711-0D560	NCP131	05/2015 - 03/2017	1
88711-0D500	NCP131 (L)	05/2013 - 07/2014	1
88711-0D560	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-52720	NCP131	07/2014 - 05/2015	1
88716-0D610	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88716-52720	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88716-0D610	NCP131	05/2015 - 03/2017	1
88716-0D610	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88716-52720	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88716-52720	NCP131	05/2013 - 07/2014	1
88718L - CLAMP, PIPING
88718-52260	NCP131	07/2014 - 05/2015	1
88718-52280	NCP131	05/2015 - 03/2017	1
88718-52280	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88718-52260	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88718-52280	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88718-52260	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88718-52260	NCP131	05/2013 - 07/2014	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	NCP131	07/2014 - 03/2017	1
88719-33020	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88719-33020	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88719-33020	NCP131	05/2013 - 07/2014	1
88891H - COVER, COOLER, NO.1
88891-52100	NCP131 (J)	05/2013 - 07/2014	1
88891-0D280	NCP131 (L)	05/2013 - 07/2014	1
88891-0D280	NCP131	07/2014 - 03/2017	1
Common parts
88718-0D170
88718-0D220
90099-14119
90099-14120
90099-14121
90105-W0033
90467-07164
91671-80620
Linked diagrams
8714
8719

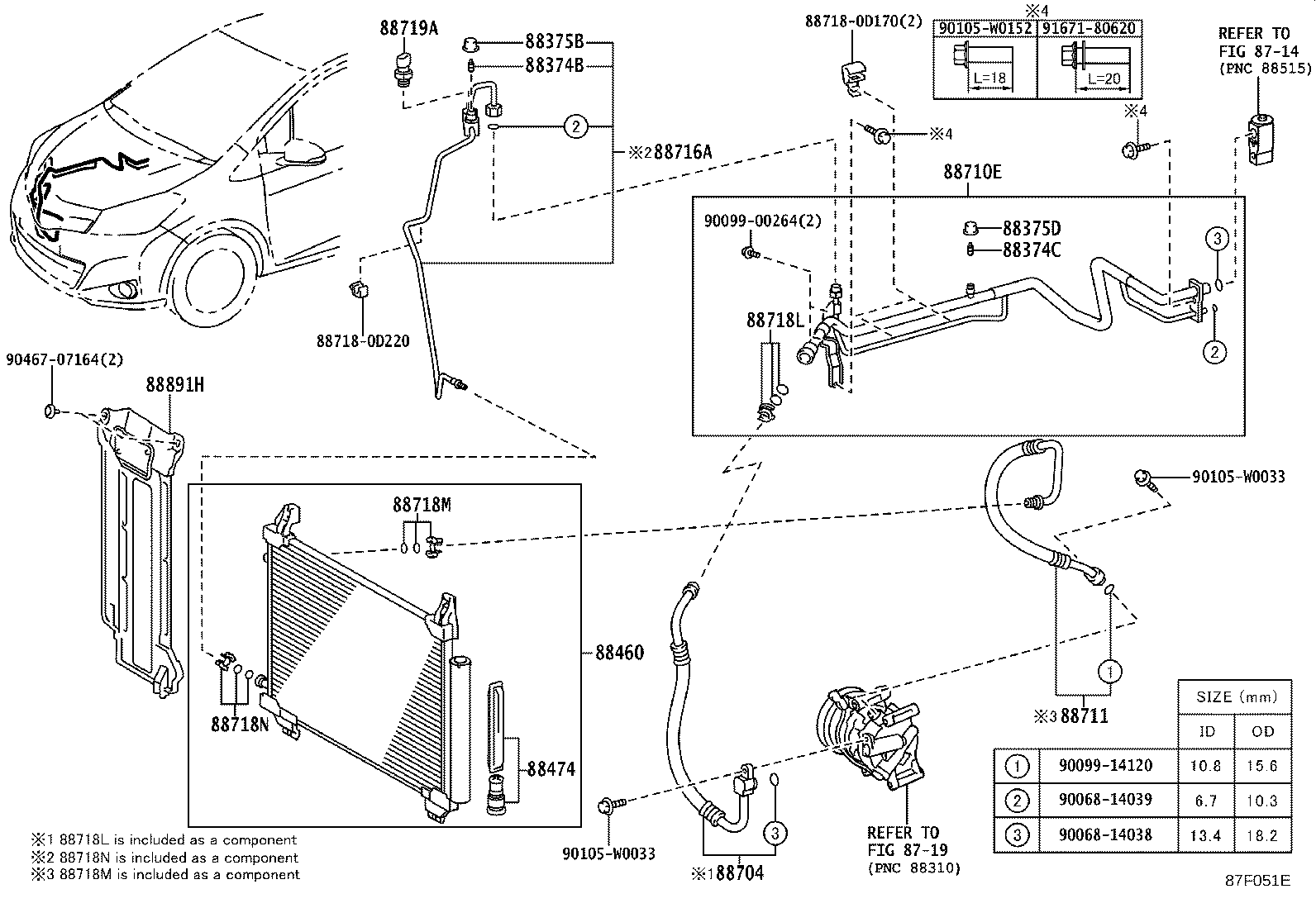

(1505- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	NCP131	07/2014 - 03/2017	1
88374-30010	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88374-30010	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88374-30010	NCP131	05/2013 - 07/2014	1
88374C - VALVE, SERVICE, NO.2
88374-30010	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88374-30010	NCP131	05/2013 - 07/2014	1
88374-30010	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88374-30010	NCP131	07/2014 - 03/2017	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88375-30280	NCP131	07/2014 - 03/2017	1
88375-30280	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88375-30280	NCP131	05/2013 - 07/2014	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88375-30290	NCP131	05/2013 - 07/2014	1
88375-30290	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88375-30290	NCP131	07/2014 - 03/2017	1
88460 - CONDENSER ASSY, COOLER
88460-52130	NCP131	07/2014 - 05/2015	1
88460-52130	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88460-0D400	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88460-0D400	NCP131	05/2015 - 03/2017	1
88460-52130	NCP131	05/2013 - 07/2014	1
88460-52130	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88460-0D400	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88474 - DRYER, COOLER
88474-12030	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88474-12030	NCP131	05/2013 - 07/2014	1
88474-12030	NCP131	07/2014 - 05/2015	1
88474-12010	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88474-12010	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88474-12010	NCP131	05/2015 - 03/2017	1
88474-12030	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88704 - HOSE SUB-ASSY, SUCTION
88704-0D080	NCP131 (L)	07/2014 - 05/2015	1
88704-52250	NCP131 (J)	05/2013 - 07/2014	1
88704-0D100	NCP131	05/2015 - 03/2017	1
88704-52250	NCP131 (J)	07/2014 - 05/2015	1
88704-0D100	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88704-0D080	NCP131 (L)	05/2013 - 07/2014	1
88704-0D080	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY,(L)	07/2014 - 05/2015	1
88704-0D100	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88704-0D080	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY,(L)	07/2014 - 05/2015	1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-0D240	NCP131	05/2015 - 03/2017	1
88710-0D240	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88710-52040	NCP131	05/2013 - 07/2014	1
88710-0D240	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88710-52040	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88710-52040	NCP131	07/2014 - 05/2015	1
88710-52040	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0D500	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY,(L)	07/2014 - 05/2015	1
88711-0D500	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY,(L)	07/2014 - 05/2015	1
88711-52380	NCP131 (J)	07/2014 - 05/2015	1
88711-0D560	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88711-52380	NCP131 (J)	05/2013 - 07/2014	1
88711-0D500	NCP131 (L)	07/2014 - 05/2015	1
88711-0D560	NCP131	05/2015 - 03/2017	1
88711-0D500	NCP131 (L)	05/2013 - 07/2014	1
88711-0D560	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-52720	NCP131	07/2014 - 05/2015	1
88716-0D610	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88716-52720	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88716-0D610	NCP131	05/2015 - 03/2017	1
88716-0D610	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88716-52720	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88716-52720	NCP131	05/2013 - 07/2014	1
88718L - CLAMP, PIPING
88718-52260	NCP131	07/2014 - 05/2015	1
88718-52280	NCP131	05/2015 - 03/2017	1
88718-52280	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88718-52260	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88718-52280	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88718-52260	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88718-52260	NCP131	05/2013 - 07/2014	1
88718M - CLAMP, PIPING
88718-1E140	NCP131	05/2015 - 03/2017	1
88718-1E140	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88718-1E140	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88718N - CLAMP, PIPING
88718-1E150	NCP131	05/2015 - 03/2017	1
88718-1E150	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88718-1E150	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	NCP131	07/2014 - 03/2017	1
88719-33020	NCP131..USA FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88719-33020	NCP131..USA MEXICO SPEC&FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88719-33020	NCP131	05/2013 - 07/2014	1
88891H - COVER, COOLER, NO.1
88891-52100	NCP131 (J)	05/2013 - 07/2014	1
88891-0D280	NCP131 (L)	05/2013 - 07/2014	1
88891-0D280	NCP131	07/2014 - 03/2017	1
Common parts
88718-0D170
88718-0D220
90068-14038
90068-14039
90099-00264
90099-14120
90105-W0033
90105-W0152
90467-07164
91671-80620
Linked diagrams
8714
8719
