Toyota Yaris (frp) NCP131 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

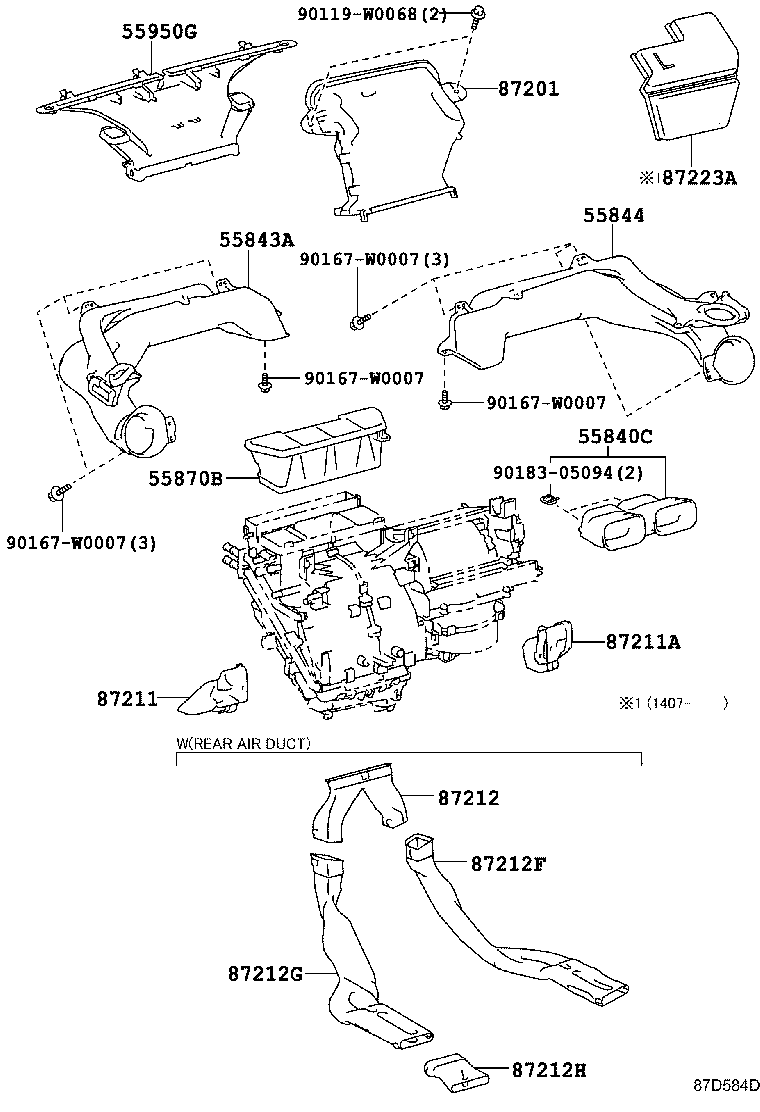

Part #	Description	Period	Qty
55840C - DUCT ASSY, HEATER TO REGISTER, NO.6
55840-0D080	NCP131	05/2013 - 07/2014	1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-0D210	NCP131	05/2013 - 07/2014	1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-0D180	NCP131	05/2013 - 07/2014	1
55870B - DUCT ASSY, HEATER TO REGISTER
55870-0D010	NCP131	05/2013 - 07/2014	1
55950G - NOZZLE ASSY, DEFROSTER
55950-0D140	NCP131	05/2013 - 07/2014	1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-0D130	NCP131	05/2013 - 07/2014	1
87211 - DUCT, AIR, NO.1
87211-0D240	NCP131	05/2013 - 07/2014	1
87211A - DUCT, AIR, NO.2
87211-0D230	NCP131	05/2013 - 07/2014	1
87212 - DUCT, AIR, REAR NO.1
87215-0D030	NCP131..USA COLD AREA SPEC	05/2013 - 07/2014	1
87212F - DUCT, AIR, REAR NO.2
87212-0D060	NCP131..USA COLD AREA SPEC	05/2013 - 07/2014	1
87212G - DUCT, AIR, REAR NO.3
87213-0D060	NCP131..USA COLD AREA SPEC	05/2013 - 07/2014	1
87212H - DUCT, AIR, REAR NO.4
87216-0D030	NCP131..USA COLD AREA SPEC	05/2013 - 07/2014	1
Common parts
90119-W0068
90167-W0007
90183-05094

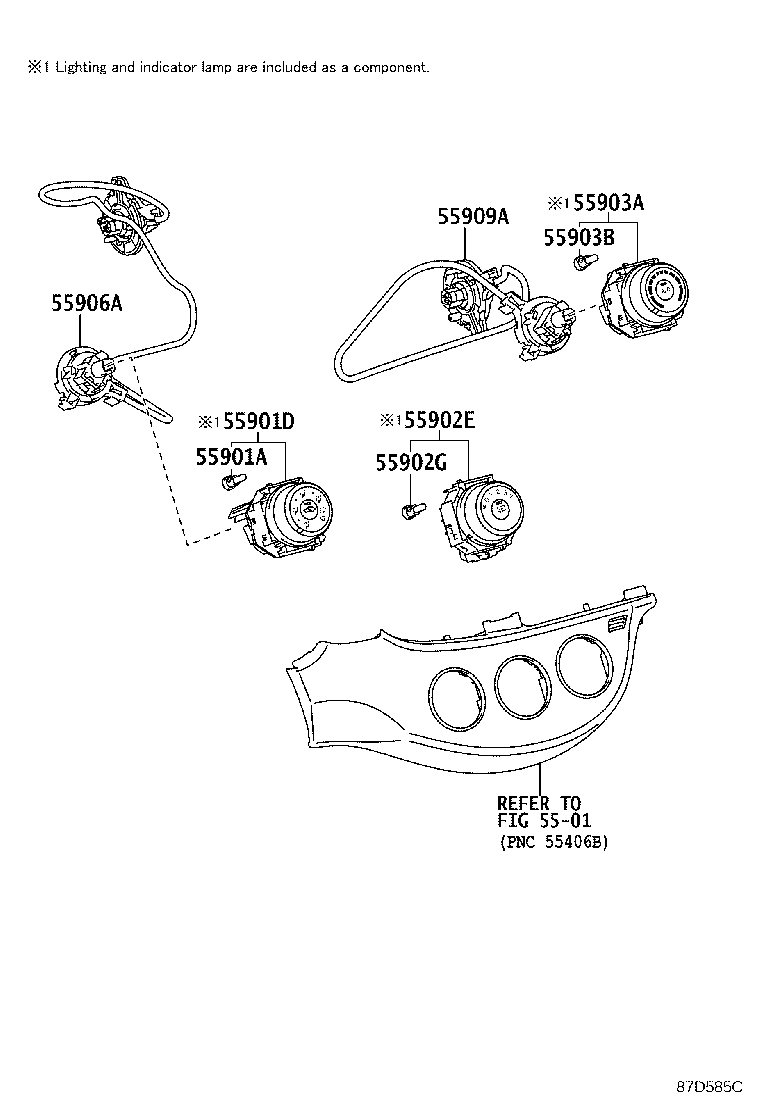

Part #	Description	Period	Qty
55901A - BULB, HEATER CONTROL SUB-ASSY, NO.1
90010-01145	NCP131	05/2013 - 07/2014	1
55901D - CONTROL SUB-ASSY, HEATER, NO.1
55901-0D210	NCP131	05/2013 - 07/2014	1
55902E - CONTROL SUB-ASSY, HEATER, NO.2
55902-0D320	NCP131	05/2013 - 07/2014	1
55902G - BULB, HEATER CONTROL SUB-ASSY, NO.2
90010-01145	NCP131	05/2013 - 07/2014	1
55903A - CONTROL SUB-ASSY, HEATER, NO.3
55903-0D310	NCP131..USA COLD AREA SPEC	05/2013 - 07/2014	1
55903-0D330	NCP131..USA	05/2013 - 07/2014	1
55903B - BULB, HEATER CONTROL SUB-ASSY, NO.3
90010-01145	NCP131	05/2013 - 07/2014	1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-52132	NCP131	05/2013 - 07/2014	1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-52120	NCP131	05/2013 - 07/2014	1
Linked diagrams
5501

NCP131L-CHPRKA (2013)
