NCP131L-CHPRKA (2013)

Toyota Yaris (Frp)

Production May 2013 - Jul 2014
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

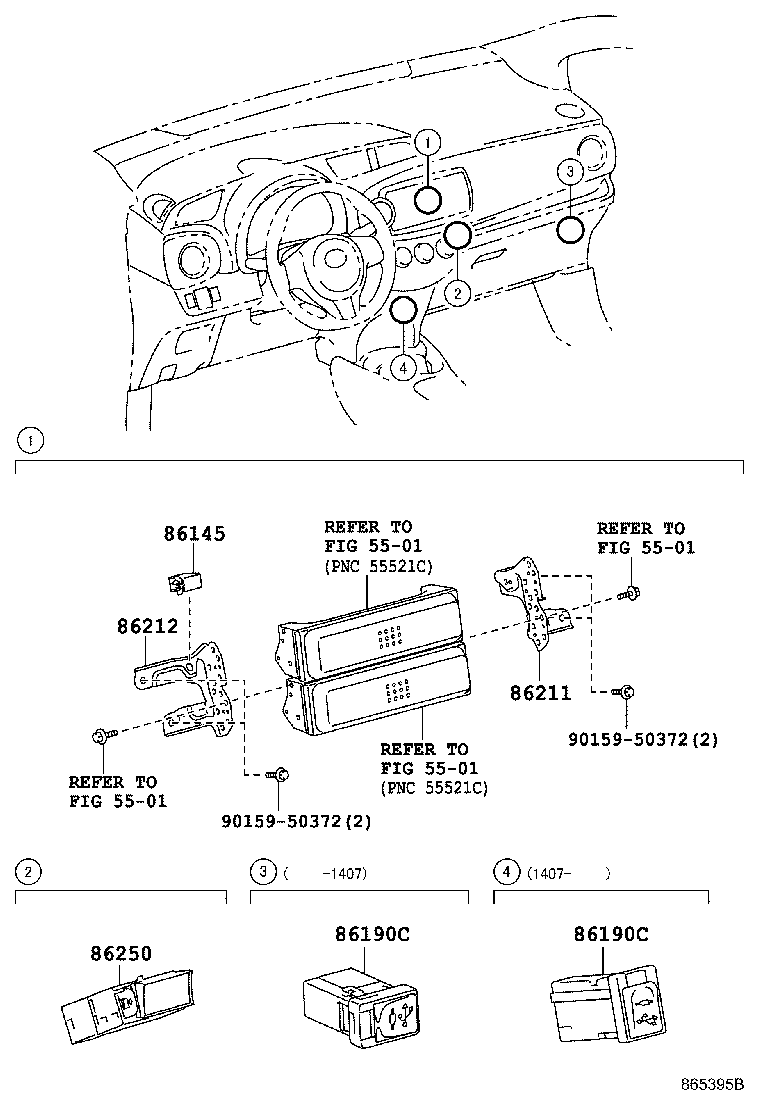

ILLUST NO. 1 OF 2(1305-1703)

Click highlighted areas on diagram

diagram 5501 5501 5501 5501 86145 86190C 86190C 86211 86212 86250 9015950372 9015950372
Part # Description Qty Price
86145 - CONNECTOR, ANTENNA MALE
86145-52010

NCP131

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-0D070

NCP131

AUDIO JACK-WITH(AUX & USB)

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-0D070

NCP131

AUDIO JACK-WITH(AUX & USB)

 1
86211 - BRACKET, RADIO, NO.1
86211-0D130

NCP131

 1
86212 - BRACKET, RADIO, NO.2
86212-0D130

NCP131

 1
86250 - MICROPHONE ASSY, AMPLIFIER
86250-0D010

NCP131

MICROPHONE & MIKE-AMPLIFIER-WITH

 1
Common parts
90159-50372
Linked diagrams
5501

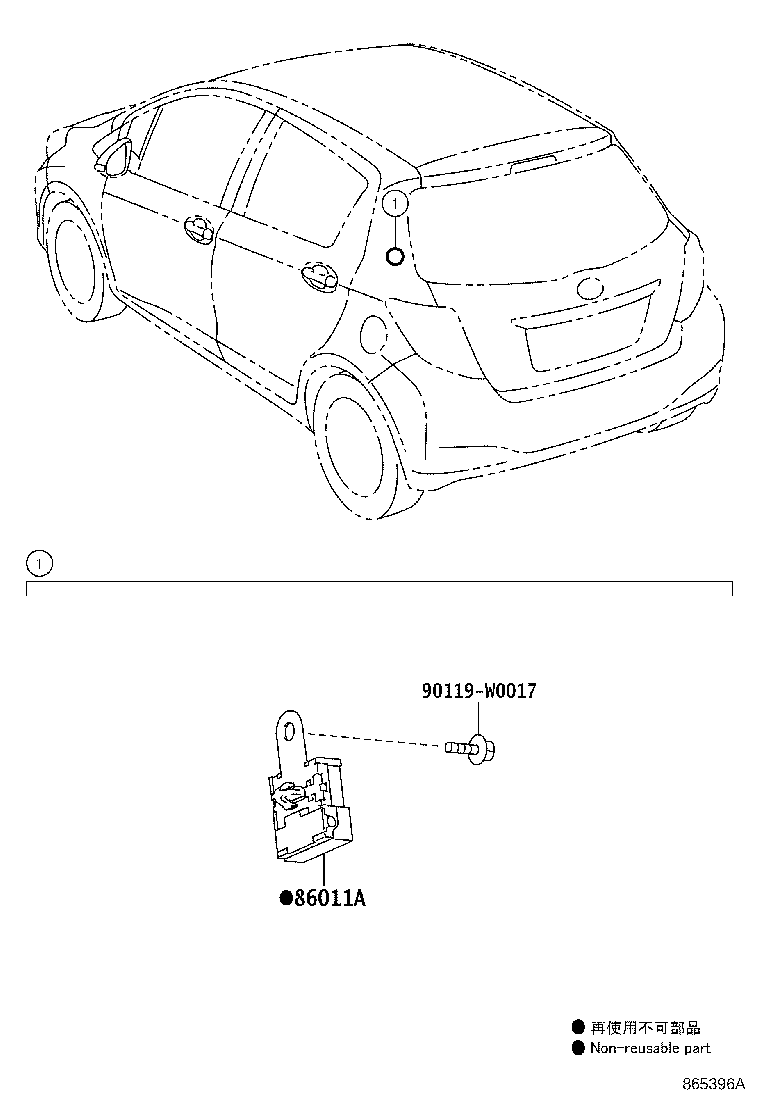

ILLUST NO. 2 OF 2(1305- )

Click highlighted areas on diagram

CONDENSER

diagram 86011A 90119W0017
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04189

NCP131

 1
Common parts
90119-W0017
