NCP131L-CHPRKA (2013)
Toyota Yaris (Frp)

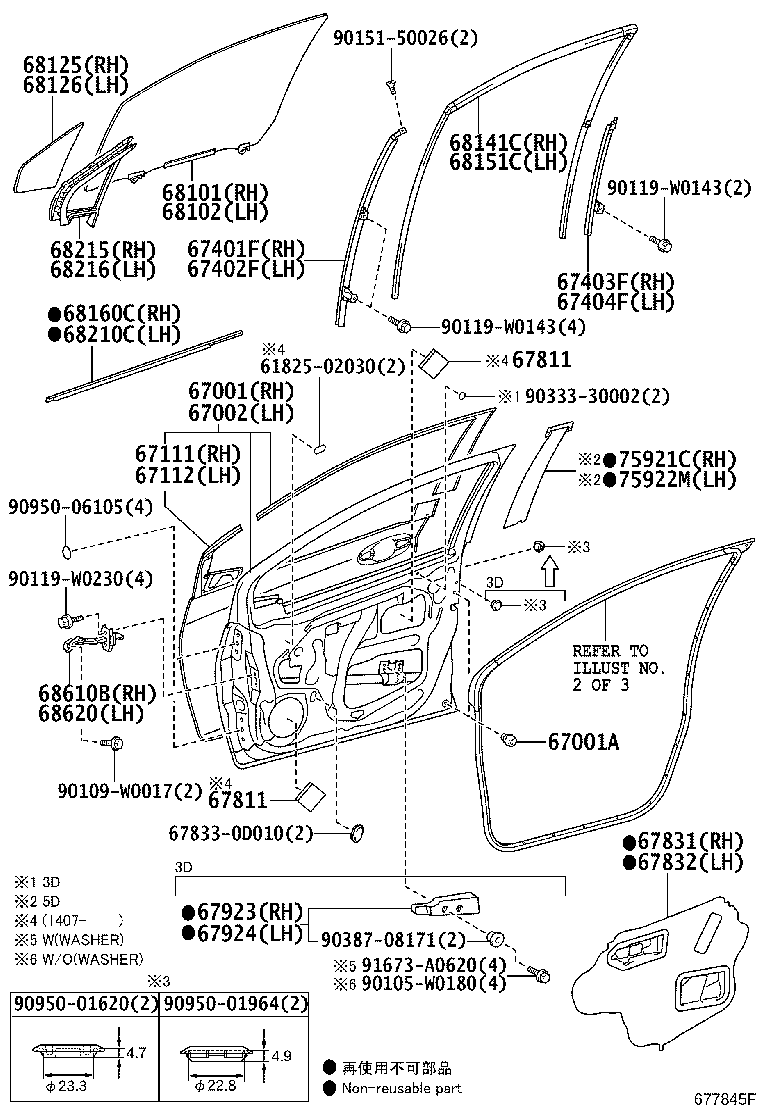

ILLUST NO. 1 OF 3(1305- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-0D310 |
NCP131..5D..USA |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09124 |
NCP131 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-0D320 |
NCP131..5D..USA |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-52240 |
NCP131..5D |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-52230 |
NCP131..5D |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-52160 |
NCP131 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-52170 |
NCP131 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-52240 |
NCP131..5D |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-52210 |
NCP131..5D |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-0D180 |
NCP131..5D |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-0D050 |
NCP131..5D |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68110-0D191 |
NCP131..5D |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68120-0D191 |
NCP131..5D |
1 | ||
| 68125 - GLASS, FRONT DOOR FIX WINDOW, RH | ||||
| 68125-0D021 |
NCP131 |
1 | ||
| 68126 - GLASS, FRONT DOOR FIX WINDOW, LH | ||||
| 68126-0D021 |
NCP131 |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-0D160 |
NCP131..5D |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-0D150 |
NCP131..5D |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68160-0D150 |
NCP131..5D |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68210-0D150 |
NCP131..5D |
1 | ||
| 68215 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH | ||||
| 68215-0D040 |
NCP131 |
1 | ||
| 68216 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH | ||||
| 68216-0D040 |
NCP131 |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-52130 |
NCP131..5D |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68610-52130 |
NCP131..5D |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-0D060 |
NCP131..5D |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-0D060 |
NCP131..5D |
1 | ||
| Common parts | ||||
| 61825-02030 | ||||
| 67833-0D010 | ||||
| 90105-W0180 | ||||
| 90109-W0017 | ||||
| 90119-W0143 | ||||
| 90119-W0230 | ||||
| 90151-50026 | ||||
| 90333-30002 | ||||
| 90387-08171 | ||||
| 90950-01620 | ||||
| 90950-01964 | ||||
| 90950-06105 | ||||
| 91673-A0620 | ||||

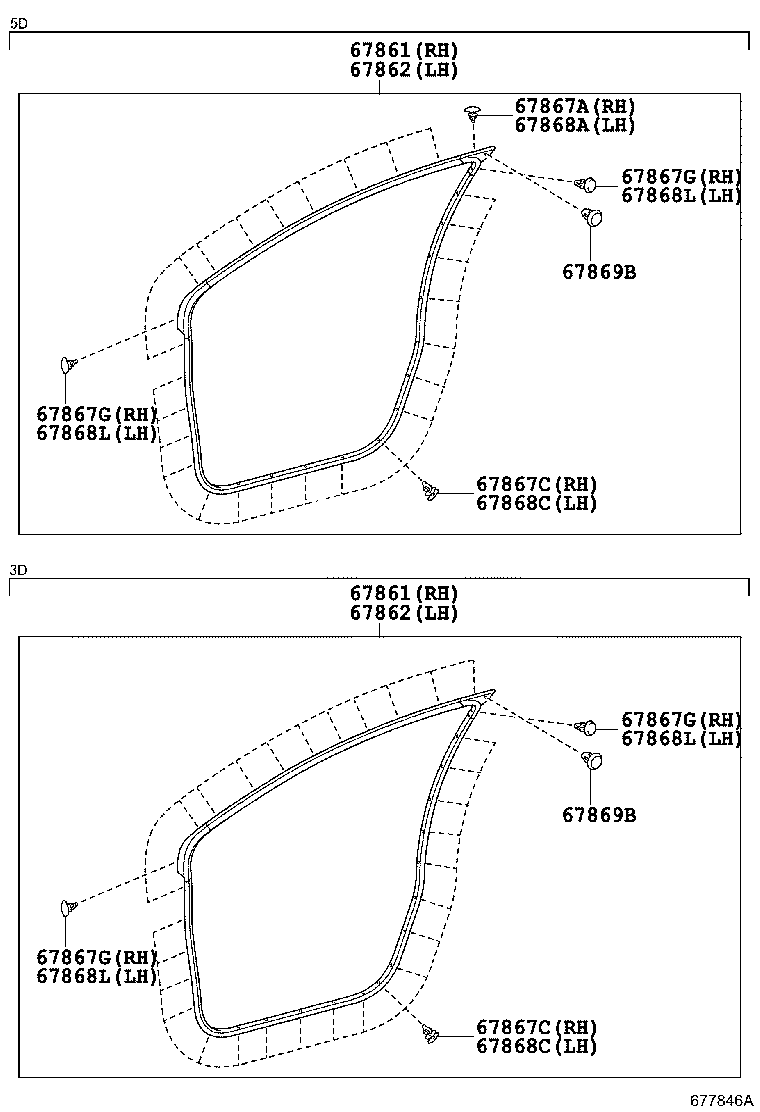

ILLUST NO. 2 OF 3(1305- )
DOOR WEATHERSTRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-0D130 |
NCP131..5D |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-0D130 |
NCP131..5D |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-0D120 |
NCP131..5D |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-0D120 |
NCP131..5D |
1 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 90467-04034 |
NCP131..5D |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
NCP131..5D |
17 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
NCP131..5D |
17 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-52040 |
NCP131..5D |
11 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-52040 |
NCP131..5D |
11 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-52040 |
NCP131..5D |
11 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-52040 |
NCP131..5D |
11 | ||
| 67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 90467-04034 |
NCP131..5D |
1 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
NCP131..5D |
17 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
NCP131..5D |
17 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-52030 |
NCP131..5D |
11 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-52030 |
NCP131..5D |
11 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-52030 |
NCP131..5D |
11 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-52030 |
NCP131..5D |
11 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 90467-06084 |
NCP131 |
2 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 90467-06084 |
NCP131 |
2 | ||

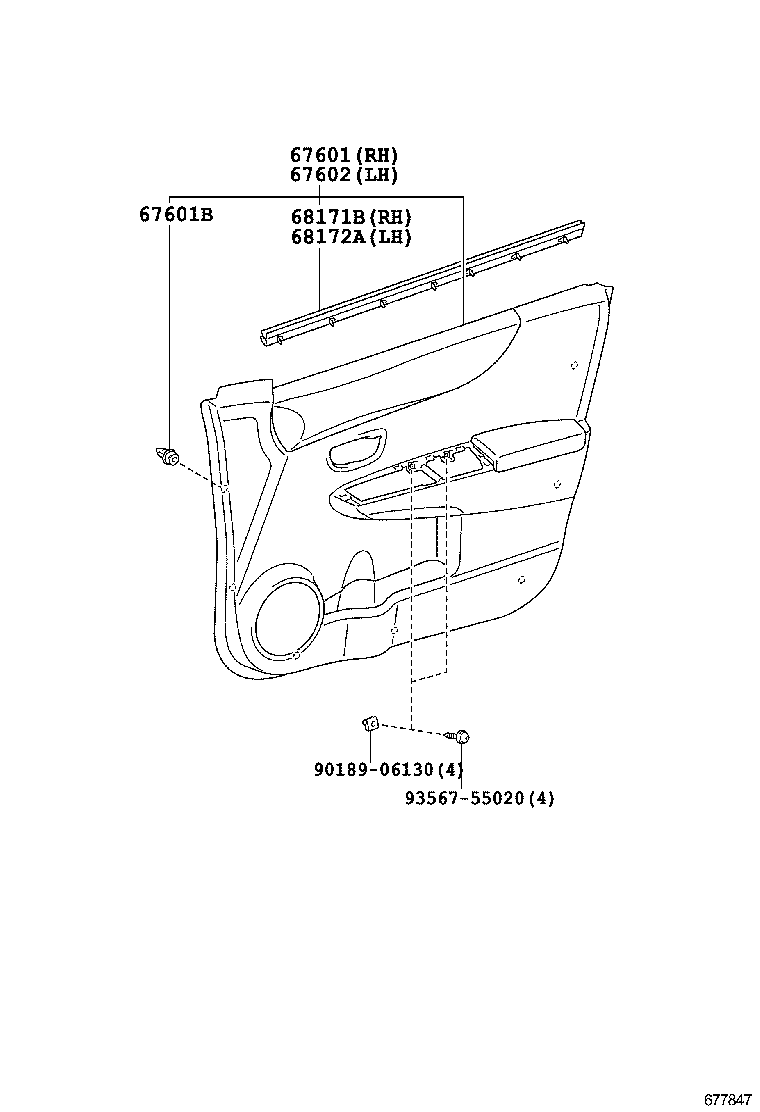

ILLUST NO. 3 OF 3(1305-1407)
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-52S01B0 |
NCP131..5D..USA REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),MD.GRAY,TRIM1# |
1 | ||
| 67610-52R91B3 |
NCP131..5D..USA POWER WINDOW-WITH(FRONT & REAR),MD.GRAY,TRIM1# |
1 | ||
| 67610-52R81B3 |
NCP131..5D..USA MD.GRAY,TRIM1# |
1 | ||
| 67610-52S11B0 |
NCP131..5D..USA POWER WINDOW-WITH(FRONT & REAR)&REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),MD.GRAY/BLACK,TRIM1# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
NCP131..5D |
14 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-5C851B3 |
NCP131..5D..USA MD.GRAY,TRIM1# |
1 | ||
| 67620-5C881B0 |
NCP131..5D..USA POWER WINDOW-WITH(FRONT & REAR)&REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),MD.GRAY/BLACK,TRIM1# |
1 | ||
| 67620-5C871B0 |
NCP131..5D..USA REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),MD.GRAY,TRIM1# |
1 | ||
| 67620-5C861B3 |
NCP131..5D..USA POWER WINDOW-WITH(FRONT & REAR),MD.GRAY,TRIM1# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-52210 |
NCP131..5D |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-52180 |
NCP131..5D |
1 | ||
| Common parts | ||||
| 90189-06130 | ||||
| 93567-55020 | ||||
