NCP131L-CHPRKA (2013)
Toyota Yaris (Frp)
Production
May 2013
-
Jul 2014
Engine
1NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1305-1407)

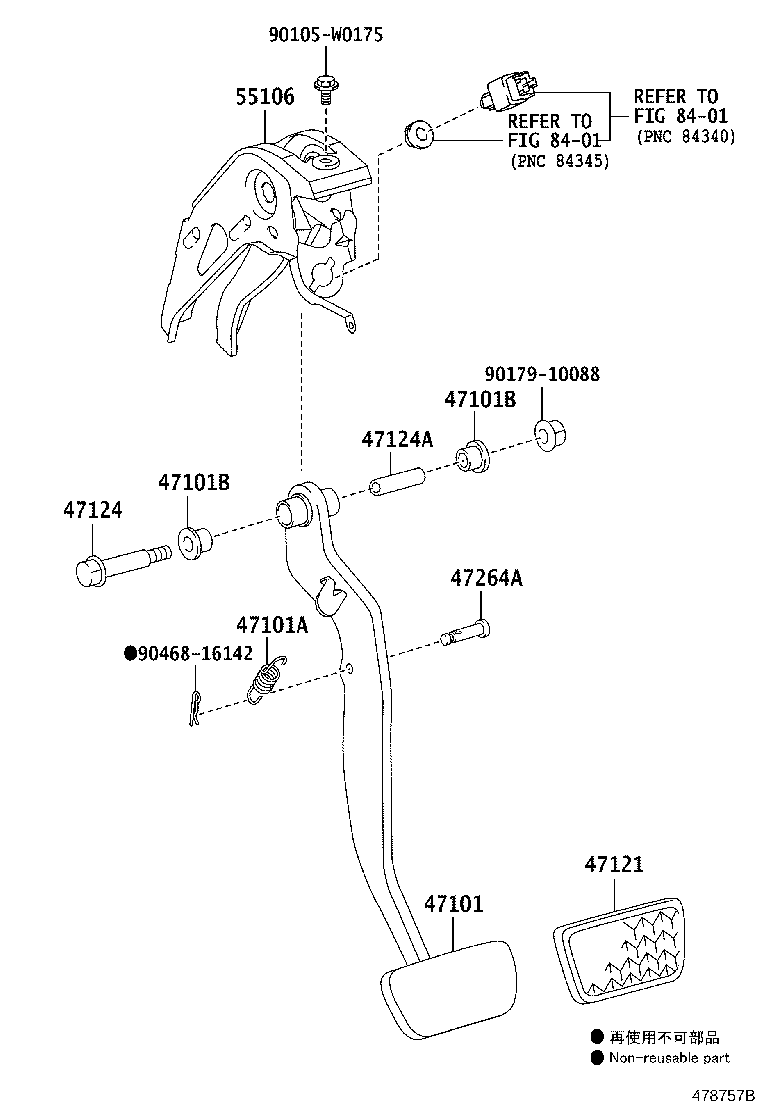

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-52261 |
NCP131..4FC |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90506-14088 |
NCP131 |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
NCP131 |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
NCP131 |
2 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-52010 |
NCP131..4FC |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 90105-10444 |
NCP131 |
1 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 90387-10003 |
NCP131 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90249-08051 |
NCP131 |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-52161 |
NCP131 |
1 | ||
| Common parts | ||||
| 90105-W0175 | ||||
| 90179-10088 | ||||
| 90468-16142 | ||||
| Linked diagrams | ||||
| 8401 | ||||
