NCP131L-CHMRKK (2013)

Toyota Yaris (Frp)

Production May 2013 - Jul 2014
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1305- )5F

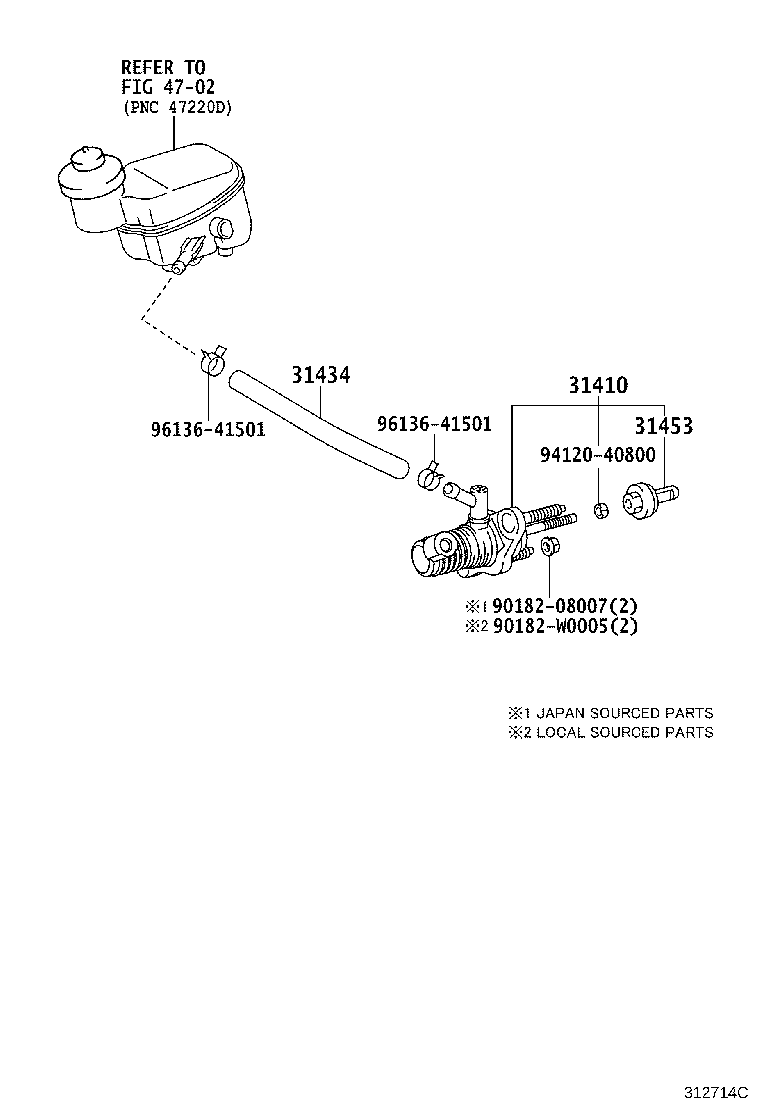

Click highlighted areas on diagram

diagram 31410 31434 31453 4702 9018208007 90182W0005 9412040800 9613641501 9613641501
Part # Description Qty Price
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-52080

NCP131..5F

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-52230

NCP131..5F

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-52020

NCP131..5F

 1
Common parts
90182-08007
90182-W0005
94120-40800
96136-41501
Linked diagrams
4702
