NCP131L-CHMRKA (2013)
Toyota Yaris (Frp)
Production
May 2013
-
Jul 2014
Engine
1NZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1305- )
Click highlighted areas on diagram
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0D500 |
NCP131..USA |
1 | ||
| 87050-0D490 |
NCP131..USA COLD AREA SPEC |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D380 |
NCP131 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0D051 |
NCP131 |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-0D080 |
NCP131 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 90480-01696 |
NCP131 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0D190 |
NCP131 |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-0D220 |
NCP131 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0K090 |
NCP131 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50100 |
NCP131 POLLEN DEODORANT |
1 | ||
| 87139-0D070 |
NCP131 POLLEN FILTER |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-52041 |
NCP131..USA COLD AREA SPEC |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D210 |
NCP131 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0D310 |
NCP131 |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
NCP131 |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0D180 |
NCP131 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D040 |
NCP131 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-52100 |
NCP131 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-02110 |
NCP131 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-52880 |
NCP131..USA |
1 | ||
| 88650-52690 |
NCP131..USA COLD AREA SPEC |
1 | ||
| Common parts | ||||
| 90068-14037 | ||||
| 90068-14038 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90119-W0017 | ||||
| 90119-W0068 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90182-W0016 | ||||
| Linked diagrams | ||||
| 8715 | ||||
(1305- )

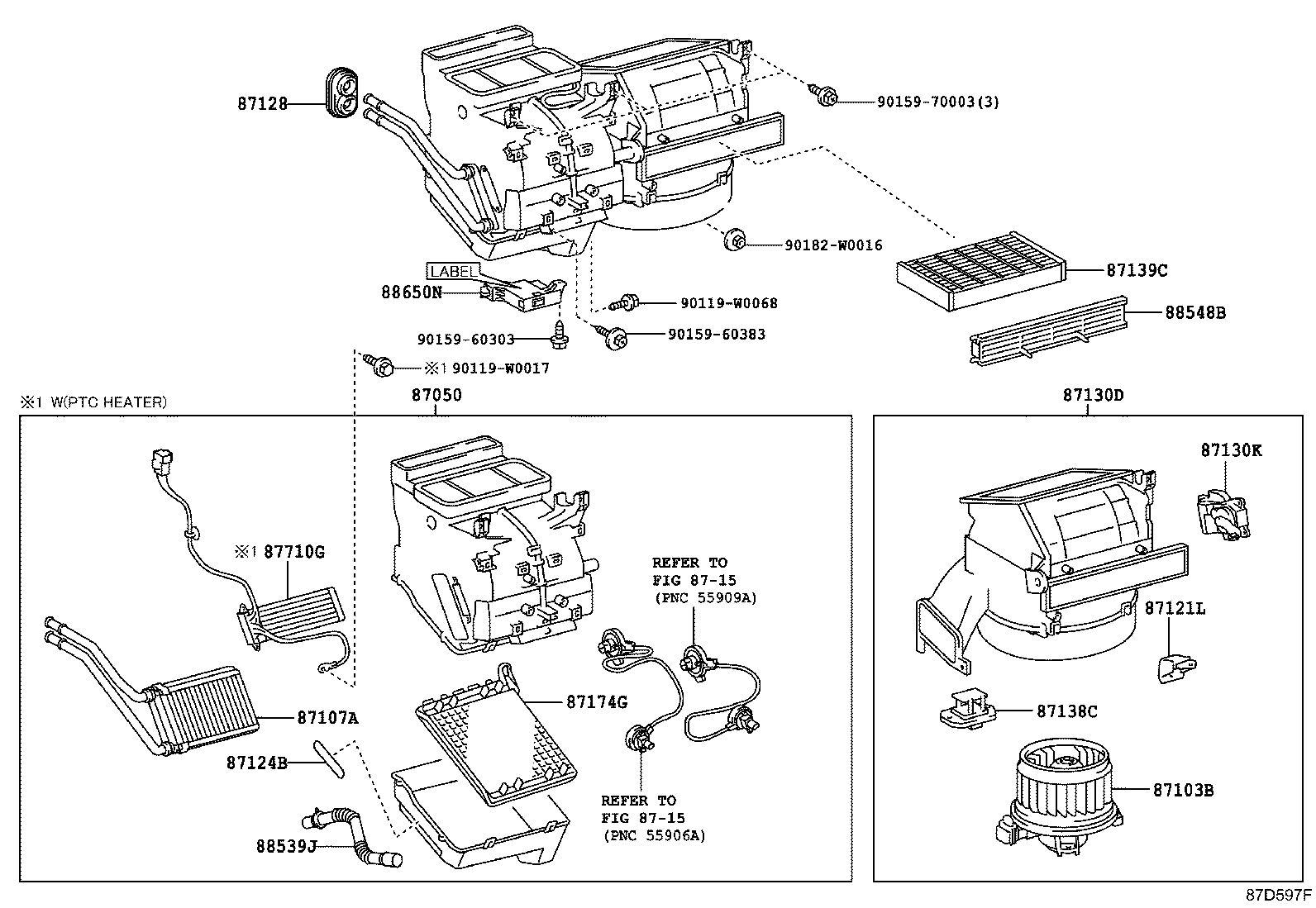

Click highlighted areas on diagram
MANUAL HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0D500 |
NCP131..USA |
1 | ||
| 87050-0D490 |
NCP131..USA COLD AREA SPEC |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D380 |
NCP131 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0D051 |
NCP131 |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-0D080 |
NCP131 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 90480-01696 |
NCP131 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0D190 |
NCP131 |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-0D220 |
NCP131 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0K090 |
NCP131 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50100 |
NCP131 POLLEN DEODORANT |
1 | ||
| 87139-0D070 |
NCP131 POLLEN FILTER |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-52041 |
NCP131..USA COLD AREA SPEC |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0D180 |
NCP131 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D040 |
NCP131 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-52880 |
NCP131..USA |
1 | ||
| 88650-52690 |
NCP131..USA COLD AREA SPEC |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| 90119-W0068 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90182-W0016 | ||||
| Linked diagrams | ||||
| 8715 | ||||
