NCP131L-CHMRKA (2013)
Toyota Yaris (Frp)
Production
May 2013
-
Jul 2014
Engine
1NZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1305- )USA

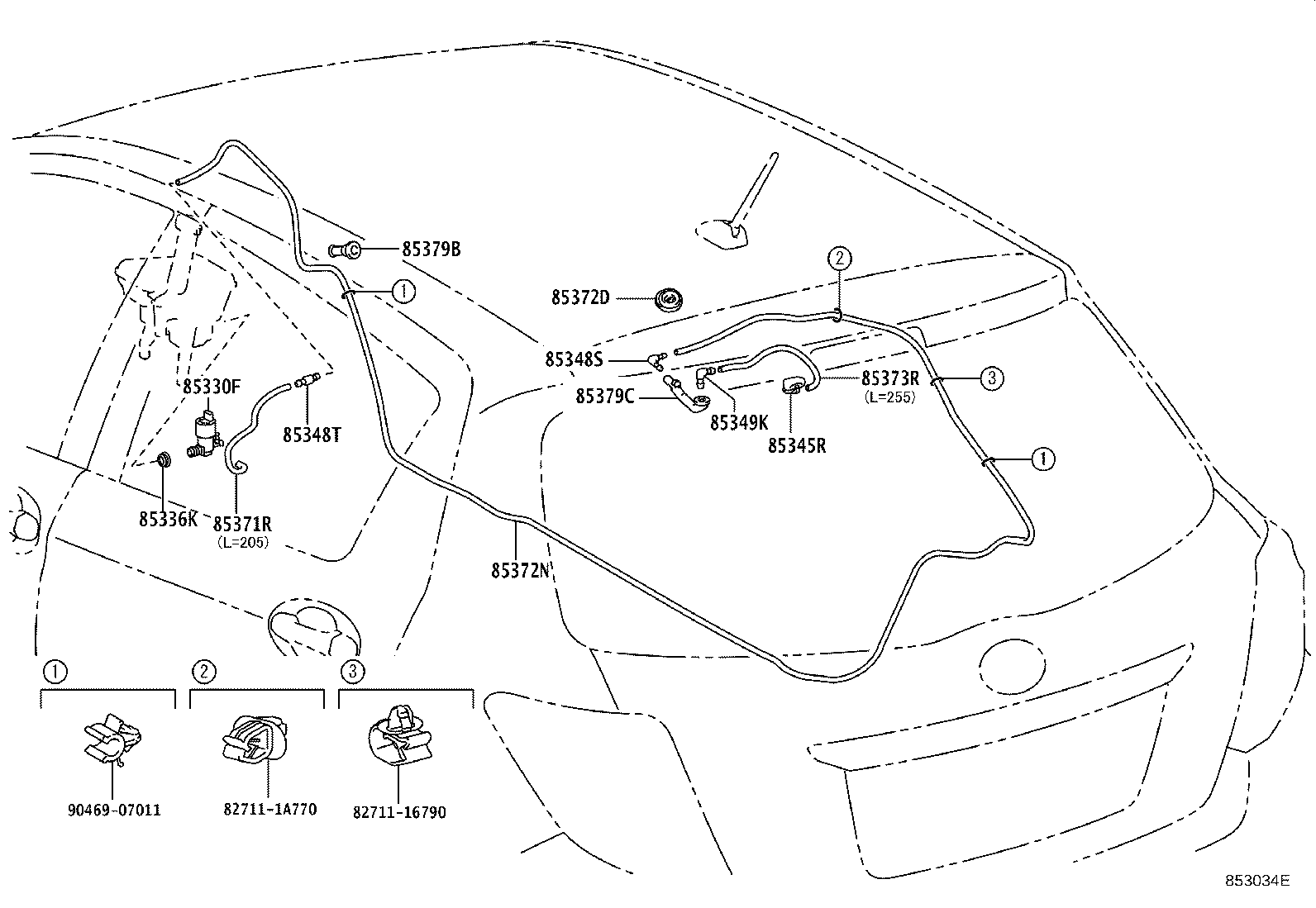

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85330F - MOTOR & PUMP ASSY, RR WASHER | ||||
| 85330-0F020 |
NCP131..USA |
1 | ||
| 85330-60180 |
NCP131..USA COLD AREA SPEC |
1 | ||
| 85336K - PROTECTOR, WASHER JAR | ||||
| 85336-0D170 |
NCP131..USA |
1 | ||
| 85336-60300 |
NCP131..USA COLD AREA SPEC |
1 | ||
| 85345R - NOZZLE, REAR WASHER | ||||
| 85391-0D050 |
NCP131 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85376-0D260 |
NCP131 |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85375-0D260 |
NCP131 |
1 | ||
| 85349K - JOINT, REAR WASHER ELBOW, NO.2 | ||||
| 85376-0D260 |
NCP131 |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90069-46058 |
NCP131..USA *318:REFER ILLUST. |
1 | ||
| 85372D - GROMMET, REAR WASHER HOSE | ||||
| 85373-0D060 |
NCP131 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90069-46059 |
NCP131 L=4548 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90069-46058 |
NCP131 *318:REFER ILLUST. |
1 | ||
| 85379B - GROMMET, WASHER, A | ||||
| 85379-0D260 |
NCP131 |
1 | ||
| 85379C - GROMMET, REAR WASHER HOSE NO.1 | ||||
| 85373-0D050 |
NCP131 |
1 | ||
| Common parts | ||||
| 82711-16790 | ||||
| 82711-1A770 | ||||
| 90469-07011 | ||||
(1305- )USA

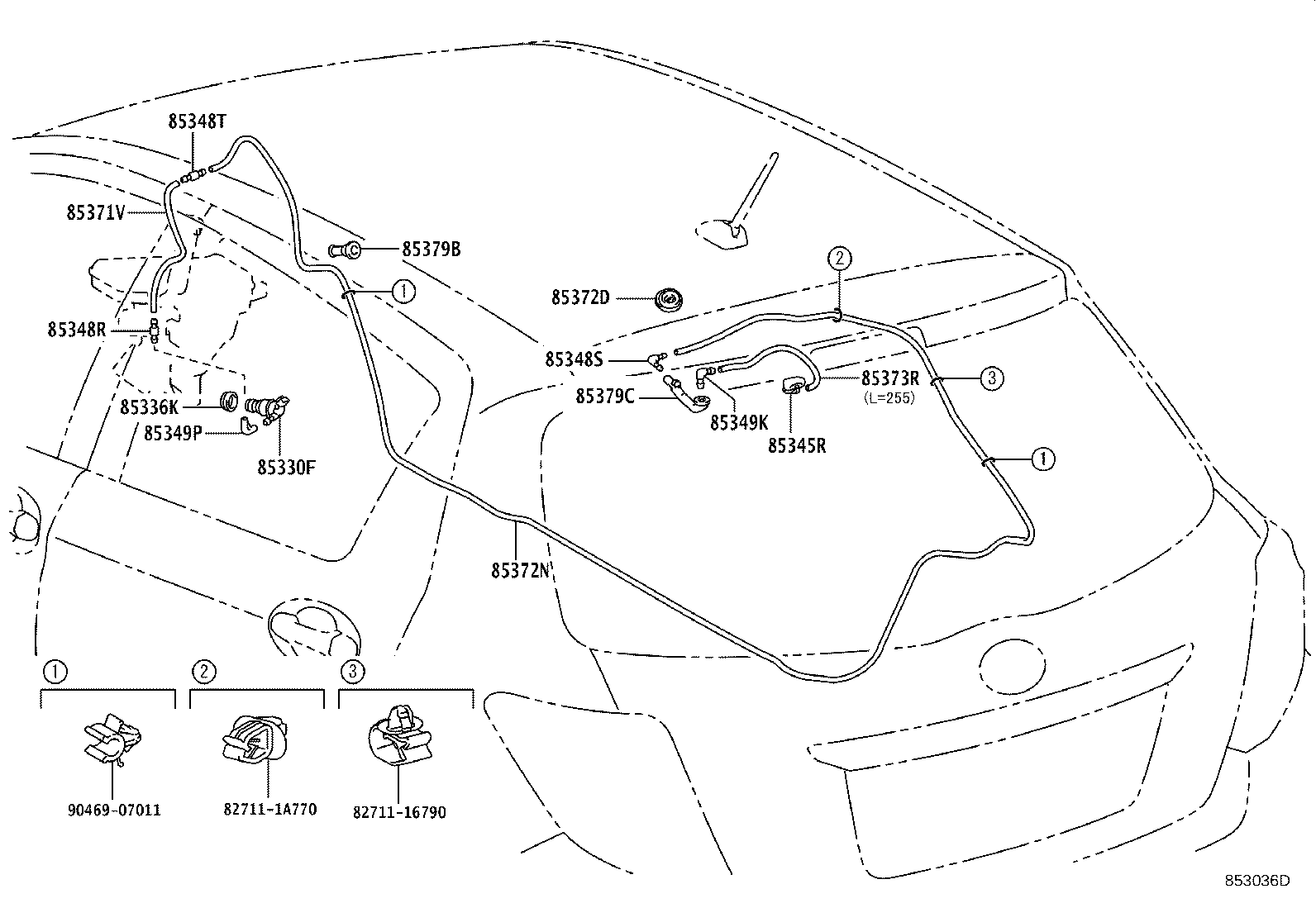

Click highlighted areas on diagram
COLD SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85330F - MOTOR & PUMP ASSY, RR WASHER | ||||
| 85330-0F020 |
NCP131..USA |
1 | ||
| 85330-60180 |
NCP131..USA COLD AREA SPEC |
1 | ||
| 85336K - PROTECTOR, WASHER JAR | ||||
| 85336-0D170 |
NCP131..USA |
1 | ||
| 85336-60300 |
NCP131..USA COLD AREA SPEC |
1 | ||
| 85345R - NOZZLE, REAR WASHER | ||||
| 85391-0D050 |
NCP131 |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
NCP131..USA COLD AREA SPEC |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85376-0D260 |
NCP131 |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85375-0D260 |
NCP131 |
1 | ||
| 85349K - JOINT, REAR WASHER ELBOW, NO.2 | ||||
| 85376-0D260 |
NCP131 |
1 | ||
| 85349P - JOINT, REAR WASHER ELBOW, NO.3 | ||||
| 85355-14481 |
NCP131..USA COLD AREA SPEC |
1 | ||
| 85371V - HOSE, REAR WASHER (FROM JOINT TO JOINT) | ||||
| 90099-33299 |
NCP131..USA *H,L=370,COLD AREA SPEC |
1 | ||
| 85372D - GROMMET, REAR WASHER HOSE | ||||
| 85373-0D060 |
NCP131 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90069-46059 |
NCP131 L=4548 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90069-46058 |
NCP131 *318:REFER ILLUST. |
1 | ||
| 85379B - GROMMET, WASHER, A | ||||
| 85379-0D260 |
NCP131 |
1 | ||
| 85379C - GROMMET, REAR WASHER HOSE NO.1 | ||||
| 85373-0D050 |
NCP131 |
1 | ||
| Common parts | ||||
| 82711-16790 | ||||
| 82711-1A770 | ||||
| 90469-07011 | ||||
