NCP131L-CHMRKA (2013)

Toyota Yaris (Frp)

Production May 2013 - Jul 2014

Engine 1NZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(1305- )

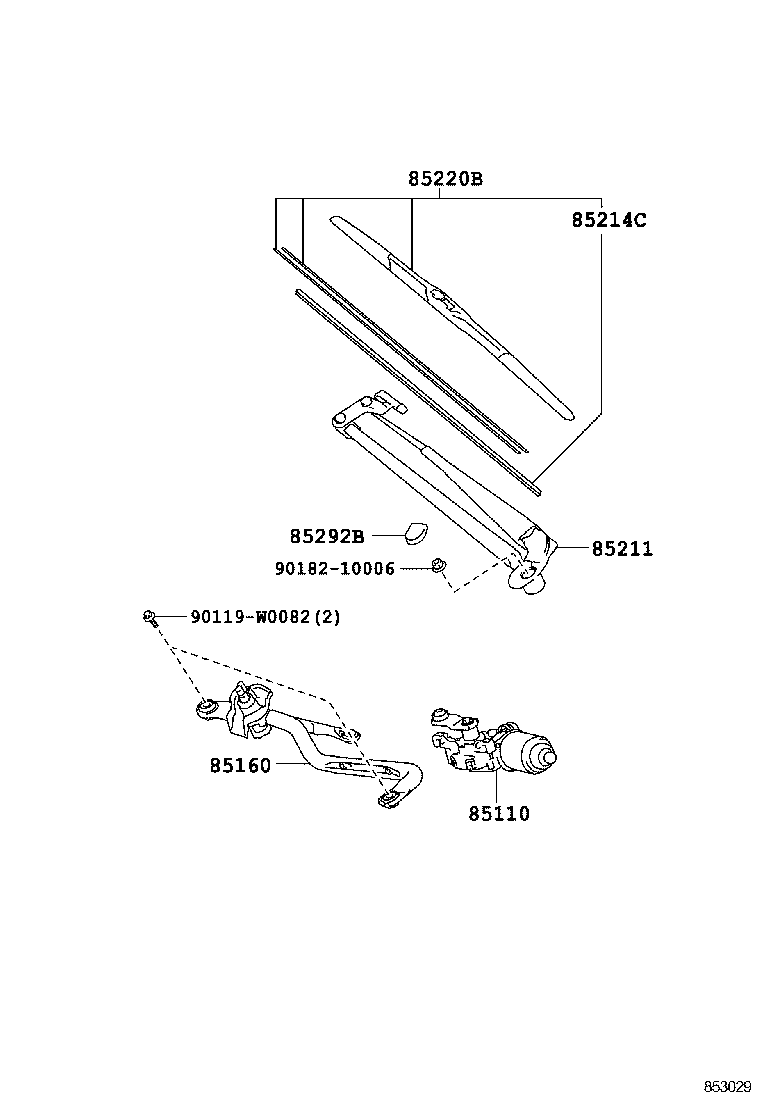

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-0D190	NCP131	05/2013 - 07/2014	1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-0D250	NCP131	05/2013 - 07/2014	1
85211 - ARM, FRONT WIPER
85221-0D260	NCP131	05/2013 - 07/2014	1
85214C - RUBBER, WIPER BLADE, CENTER
85214-0D180	NCP131	05/2013 - 07/2014	1
85220B - BLADE, FRONT WIPER
85222-0D180	NCP131	05/2013 - 07/2014	1
85292B - CAP, FRONT WIPER ARM HEAD
85292-52070	NCP131	05/2013 - 07/2014	1
Common parts
90119-W0082
90182-10006
