NCP131L-CHMRKA (2013)

Toyota Yaris (Frp)

Production May 2013 - Jul 2014
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1305- )

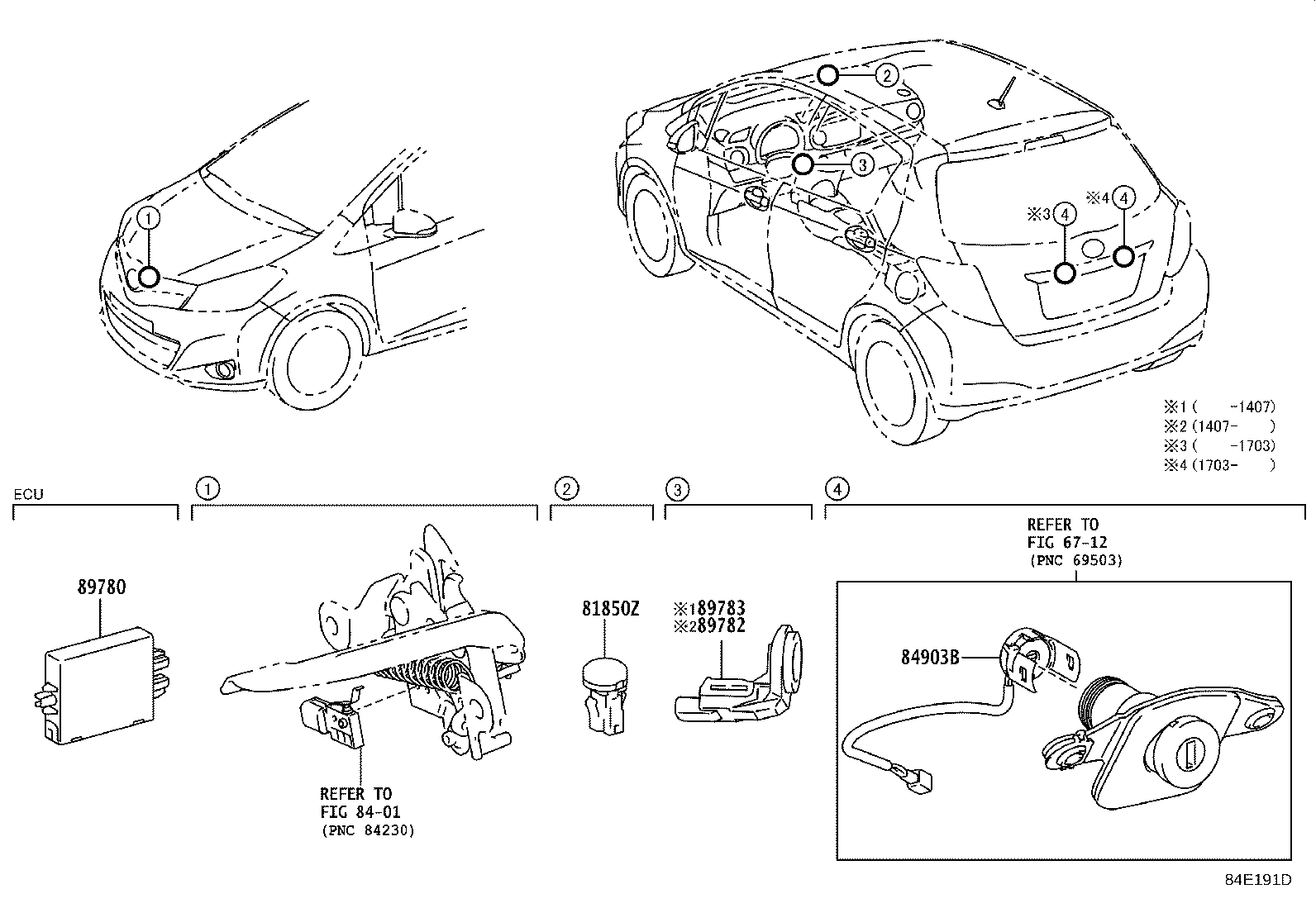

Click highlighted areas on diagram

diagram 6712 81850Z 8401 84903B 89780 89782 89783
Part # Description Qty Price
81850Z - LAMP ASSY, THEFT WARNING INDICATOR
81850-52010

NCP131..USA

PUERTO RICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)

 1
81850-52010

NCP131..5D..USA

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT & REAR)

 1
84903B - SWITCH SUB-ASSY, DOOR UNLOCK
84903-52030

NCP131

 1
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-52220

NCP131..5D..USA

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT & REAR)

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-0D051

NCP131..5D..USA

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT & REAR)

 1
Linked diagrams
6712
8401
