NCP131L-CHMRKA (2013)
Toyota Yaris (Frp)

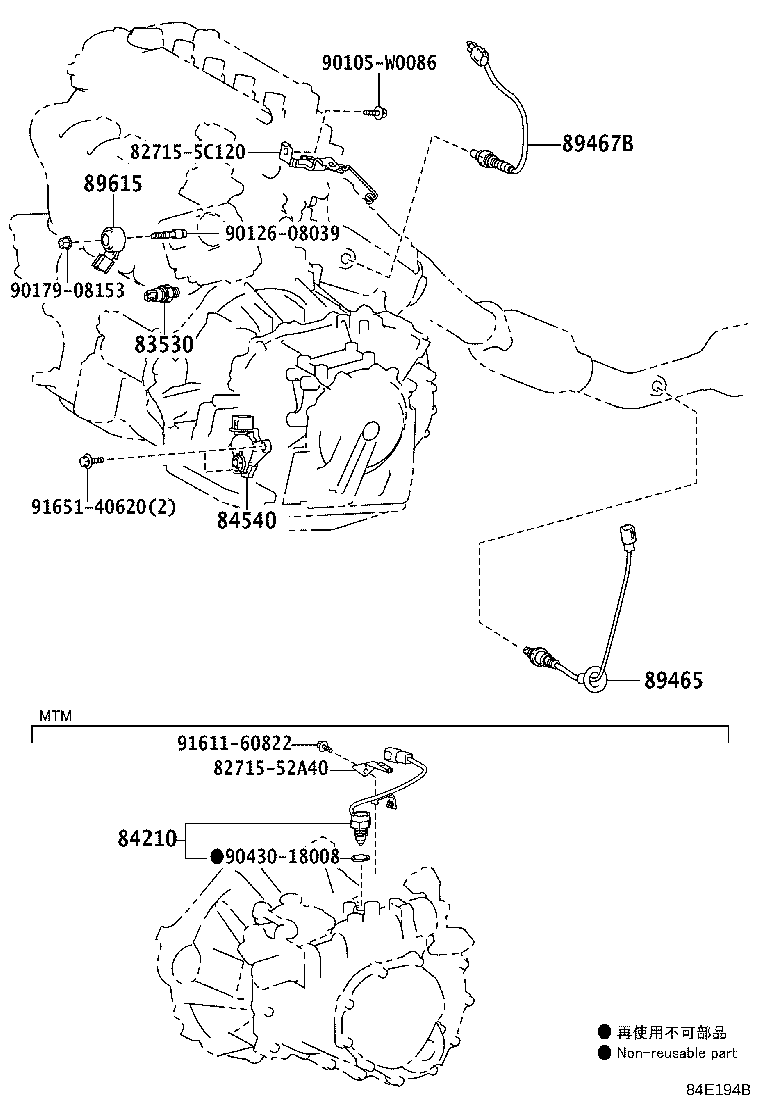

ILLUST NO. 1 OF 7(1305- )
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
NCP131 DENSO |
1 | ||
| 83530-60020 |
NCP131 YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52010 |
NCP131..5F |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-52480 |
NCP131 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-52170 |
NCP131 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
NCP131 |
1 | ||
| Common parts | ||||
| 82715-52A40 | ||||
| 82715-5C120 | ||||
| 90105-W0086 | ||||
| 90126-08039 | ||||
| 90179-08153 | ||||
| 90430-18008 | ||||
| 91611-60822 | ||||
| 91651-40620 | ||||

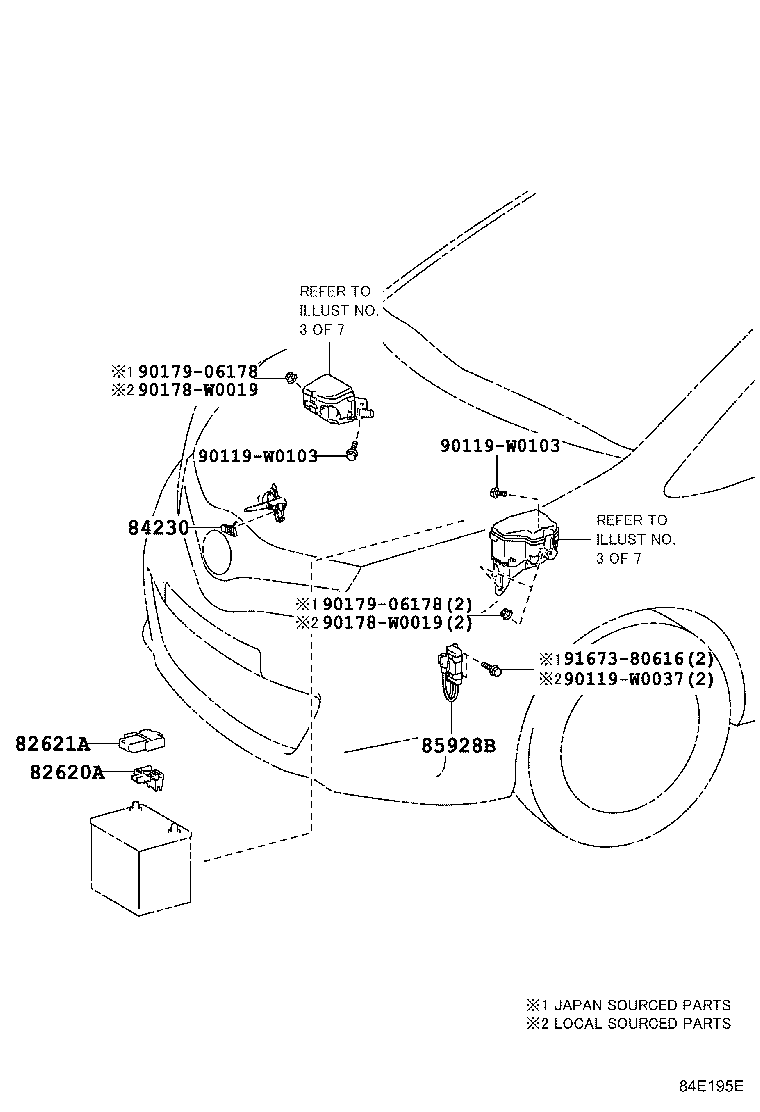

ILLUST NO. 2 OF 7(1305- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-52070 |
NCP131 |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-0D020 |
NCP131 |
1 | ||
| 84230 - SWITCH ASSY, COURTESY LAMP (FOR ENGINE ROOM) | ||||
| 84230-52100 |
NCP131..USA PUERTO RICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER) |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-52030 |
NCP131 |
1 | ||
| Common parts | ||||
| 90119-W0037 | ||||
| 90119-W0103 | ||||
| 90178-W0019 | ||||
| 90179-06178 | ||||
| 91673-80616 | ||||

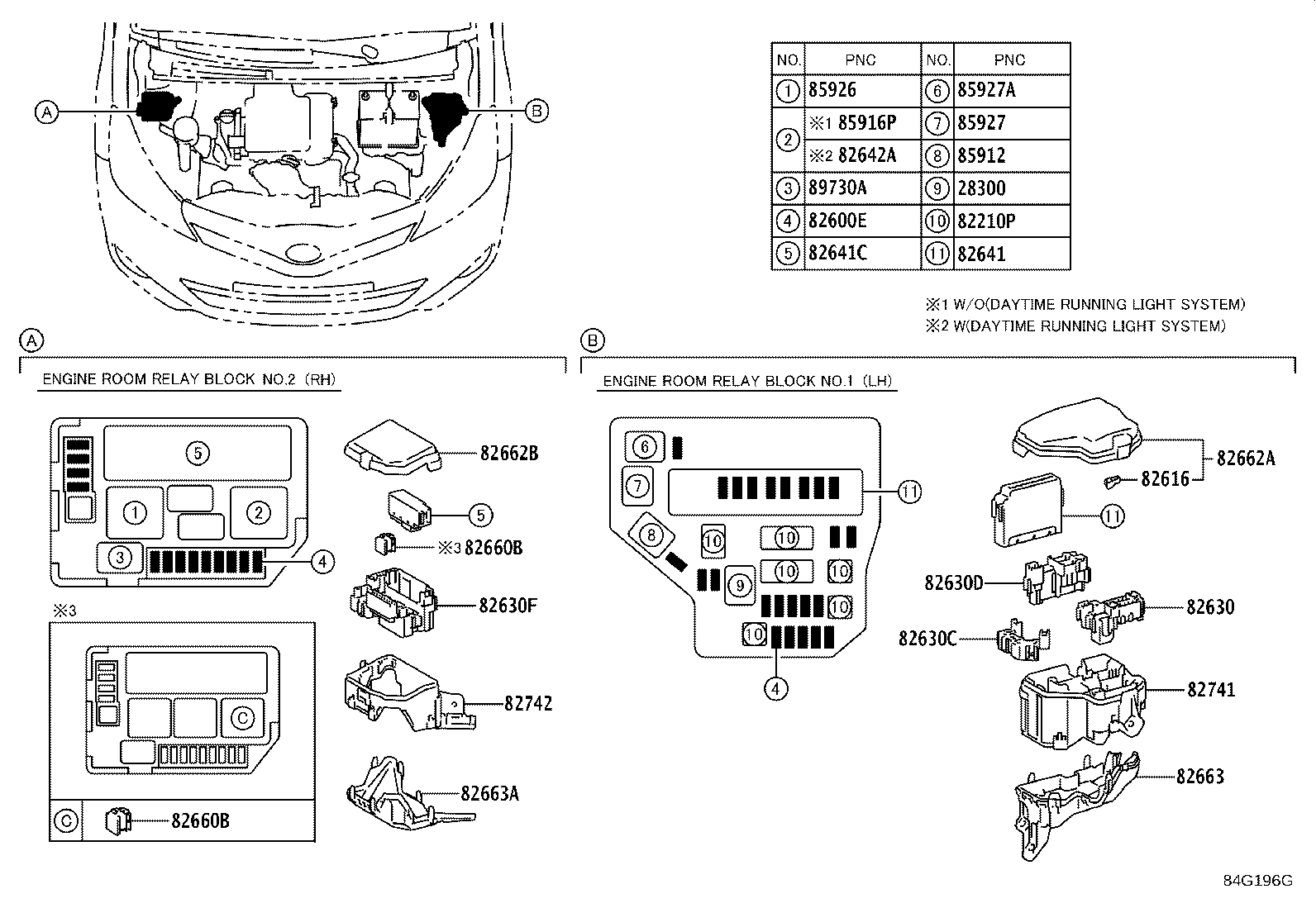

ILLUST NO. 3 OF 7(1305-1407)
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1NZFE..NCP131 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08300 |
NCP131 50A-30A-30A,FEMALE |
1 | ||
| 90982-08294 |
NCP131 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08305 |
NCP131 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08296 |
NCP131 50A,TERM.:FEMALE,RED |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09021 |
NCP131 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
NCP131 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
NCP131 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
NCP131 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
NCP131 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
NCP131 7.5A,MINI FUSE,BROWN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
NCP131 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-0D010 |
NCP131 |
1 | ||
| 82630C - HOLDER ASSY, FUSE | ||||
| 82631-0D020 |
NCP131 |
1 | ||
| 82630D - HOLDER, FUSE | ||||
| 82631-0D030 |
NCP131 |
1 | ||
| 82630F - HOLDER, FUSE | ||||
| 82631-0D040 |
NCP131 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-52020 |
NCP131 |
1 | ||
| 82641C - RELAY, INTEGRATION NO.2 | ||||
| 82641-52060 |
NCP131..USA COLD AREA SPEC |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 82642-52030 |
NCP131..USA DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH) |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
NCP131..USA |
1 | ||
| 82660-52130 |
NCP131..USA DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH) |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
NCP131..USA |
1 | ||
| 82660-52130 |
NCP131..USA DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH) |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0D280 |
NCP131 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-0D141 |
NCP131 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0D060 |
NCP131 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-0D070 |
NCP131 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0D070 |
NCP131 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-0D080 |
NCP131 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90080-87021 |
NCP131 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90080-87030 |
NCP131..USA |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90080-87031 |
NCP131 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
NCP131 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90080-87020 |
NCP131 (L) |
1 | ||
| 90987-04004 |
NCP131 (J) |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90987-02027 |
NCP131..USA PUERTO RICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER) |
1 | ||

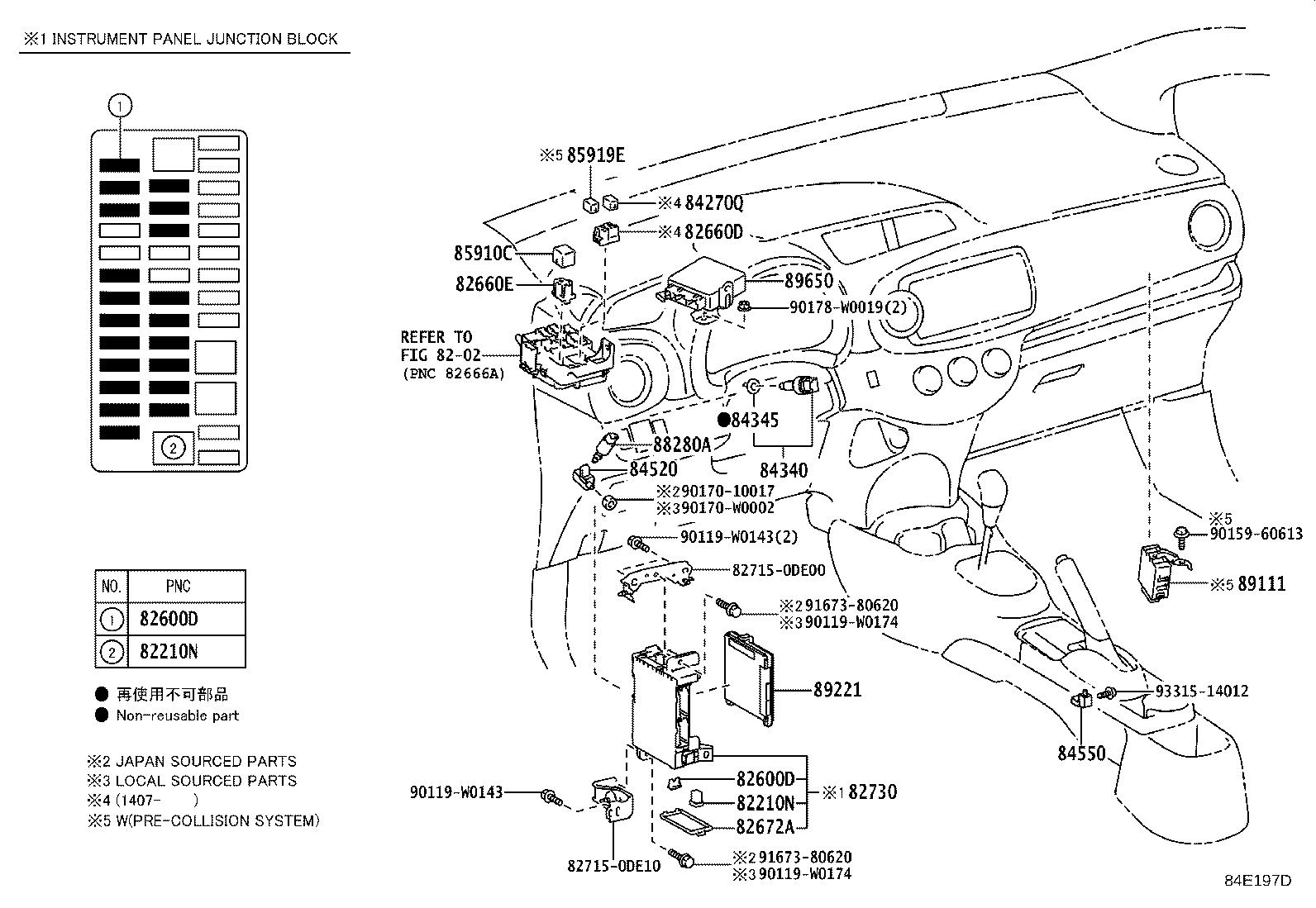

ILLUST NO. 4 OF 7(1305- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
NCP131 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
NCP131 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
NCP131 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
NCP131 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
NCP131 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
NCP131 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
NCP131 25A,MINI FUSE |
1 | ||
| 90982-09020 |
NCP131 7.5A,MINI FUSE,BROWN |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
NCP131 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
NCP131 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
NCP131 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
NCP131 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
NCP131 25A,MINI FUSE |
1 | ||
| 90982-09020 |
NCP131 7.5A,MINI FUSE,BROWN |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-52100 |
NCP131 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-52030 |
NCP131 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-52M60 |
NCP131 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09020 |
NCP131 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
NCP131 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
NCP131..5F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
NCP131 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
NCP131 |
1 | ||
| 88280A - SWITCH ASSY, CLUTCH | ||||
| 88280-42010 |
NCP131..5F CRUISE CONTROL-WITH |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-52330 |
NCP131..USA |
1 | ||
| 89220-52350 |
NCP131..USA PUERTO RICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER) |
1 | ||
| 89220-52700 |
NCP131..USA DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH) |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-52771 |
NCP131 |
1 | ||
| Common parts | ||||
| 82715-0DE00 | ||||
| 82715-0DE10 | ||||
| 90119-W0143 | ||||
| 90119-W0174 | ||||
| 90159-60613 | ||||
| 90170-10017 | ||||
| 90170-W0002 | ||||
| 90178-W0019 | ||||
| 91673-80620 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 8202 | ||||

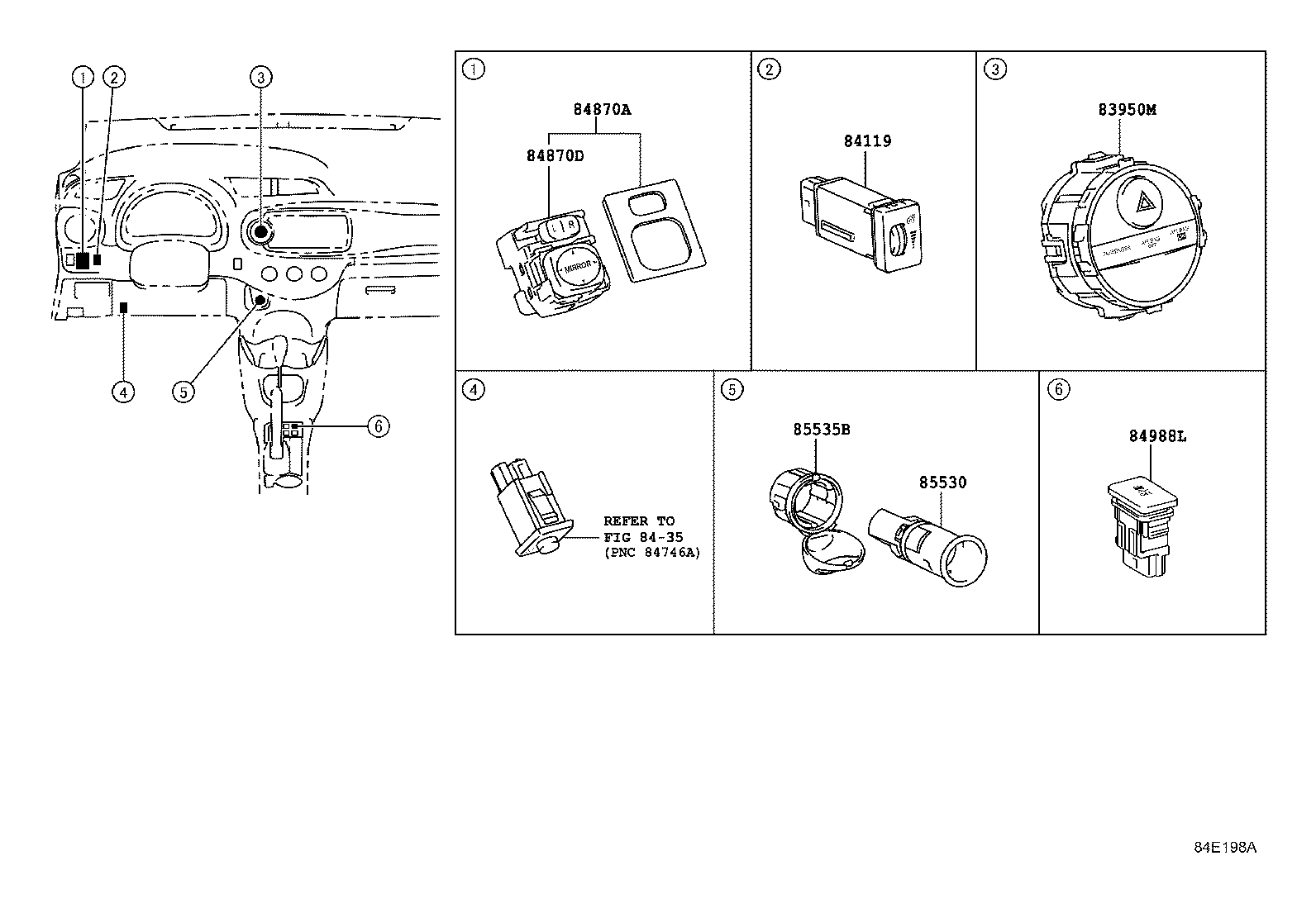

ILLUST NO. 5 OF 7(1305-1407)
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-52220 |
NCP131 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-42020 |
NCP131 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-0F010 |
NCP131..USA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-02050 |
NCP131..USA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-0D010 |
NCP131 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0D020 |
NCP131 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-52040 |
NCP131 |
1 | ||
| Linked diagrams | ||||
| 8435 | ||||

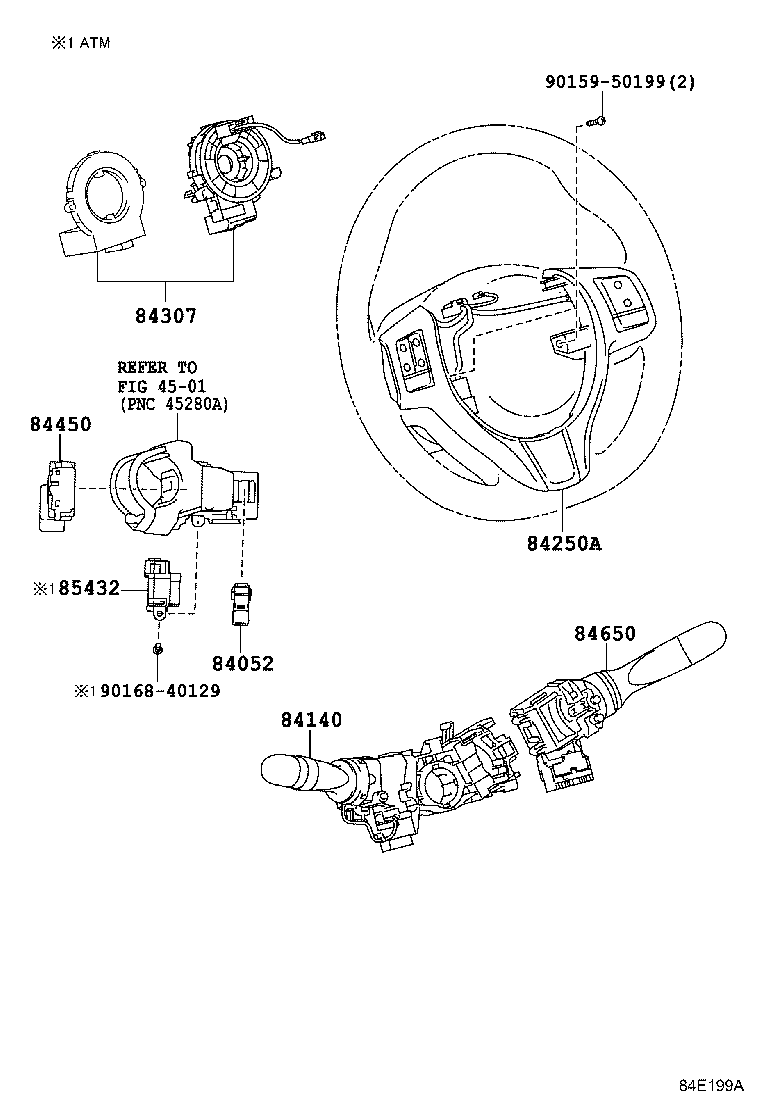

ILLUST NO. 6 OF 7(1305- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
NCP131 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-52220 |
NCP131..USA |
1 | ||
| 84140-52230 |
NCP131..USA FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 84140-47151 |
NCP131..USA DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH) |
1 | ||
| 84140-47161 |
NCP131..USA FRONT FOG & DRIVING LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH) |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-0D020C0 |
NCP131..USA STEERING SWITCH-WITH(AUDIO),BLACK,TRIM1# |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-47020 |
NCP131..USA CRUISE CONTROL-WITH&STEERING SWITCH-WITH(AUDIO) |
1 | ||
| 84307-60020 |
NCP131 |
1 | ||
| 84307-47020 |
NCP131 CRUISE CONTROL-WITH |
1 | ||
| 84307-47020 |
NCP131..USA STEERING SWITCH-WITH(AUDIO) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52020 |
NCP131 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-52300 |
NCP131..USA |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||

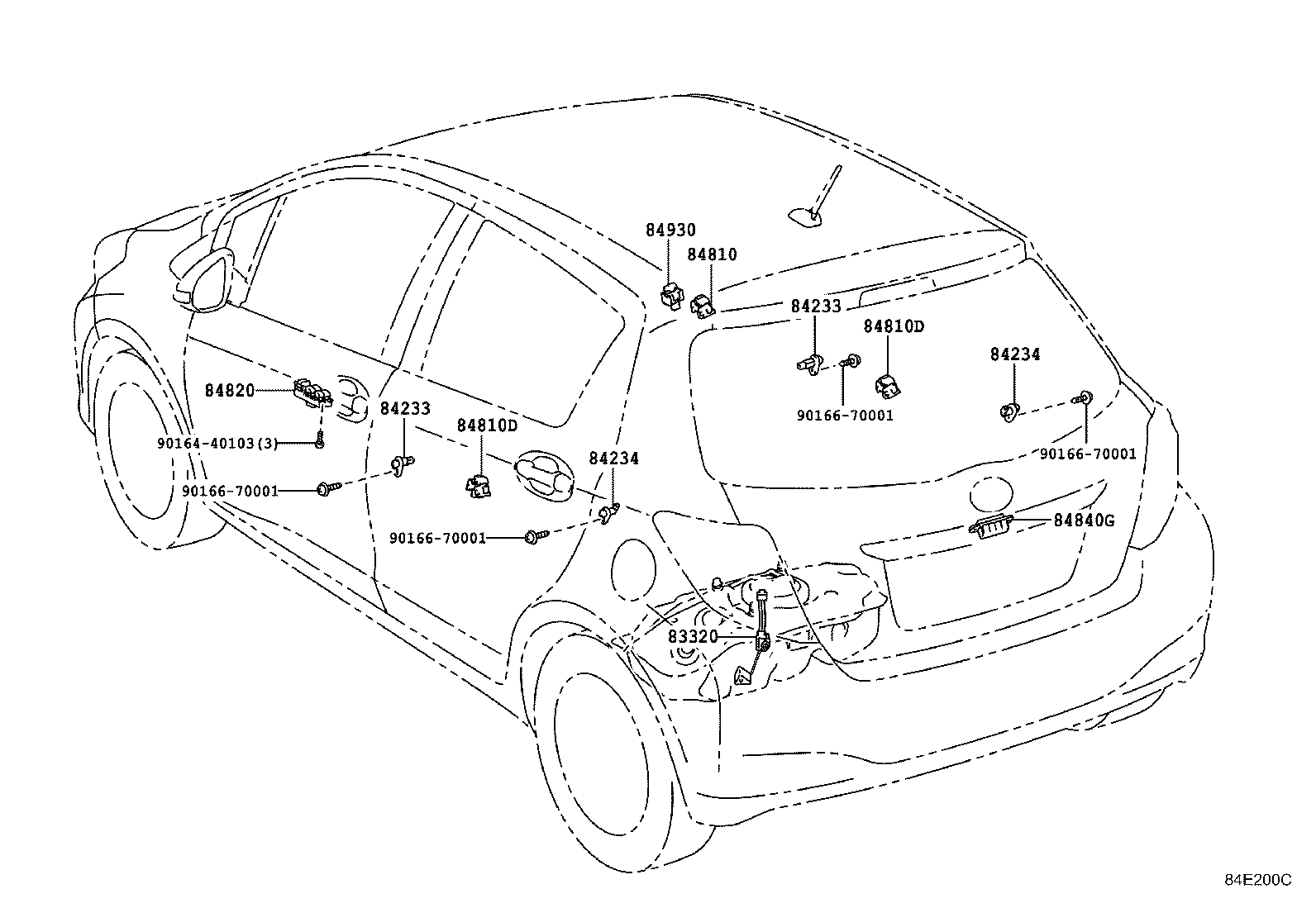

ILLUST NO. 7 OF 7(1305- )
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52260 |
NCP131 |
1 | ||
| 83320-52261 |
NCP131 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D030 |
NCP131 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D030 |
NCP131 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0D040 |
NCP131..5D |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0D040 |
NCP131..5D |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0D030 |
NCP131..5D POWER WINDOW-WITH(FRONT & REAR) |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0D030 |
NCP131..5D POWER WINDOW-WITH(FRONT & REAR) |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0D030 |
NCP131..5D POWER WINDOW-WITH(FRONT & REAR) |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-52470 |
NCP131..5D POWER WINDOW-WITH(FRONT & REAR) |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28030 |
NCP131 |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-12250 |
NCP131..5D POWER WINDOW-WITH(FRONT & REAR) |
1 | ||
| 84930-12250 |
NCP131 |
2 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||
