Toyota Yaris (frp) NCP131 WIRING & CLAMP

NCP131L-CHMRKA (2013)

Toyota Yaris (Frp)

Production May 2013 - Jul 2014

Engine 1NZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 6 OF10(1305- )

Click highlighted areas on diagram

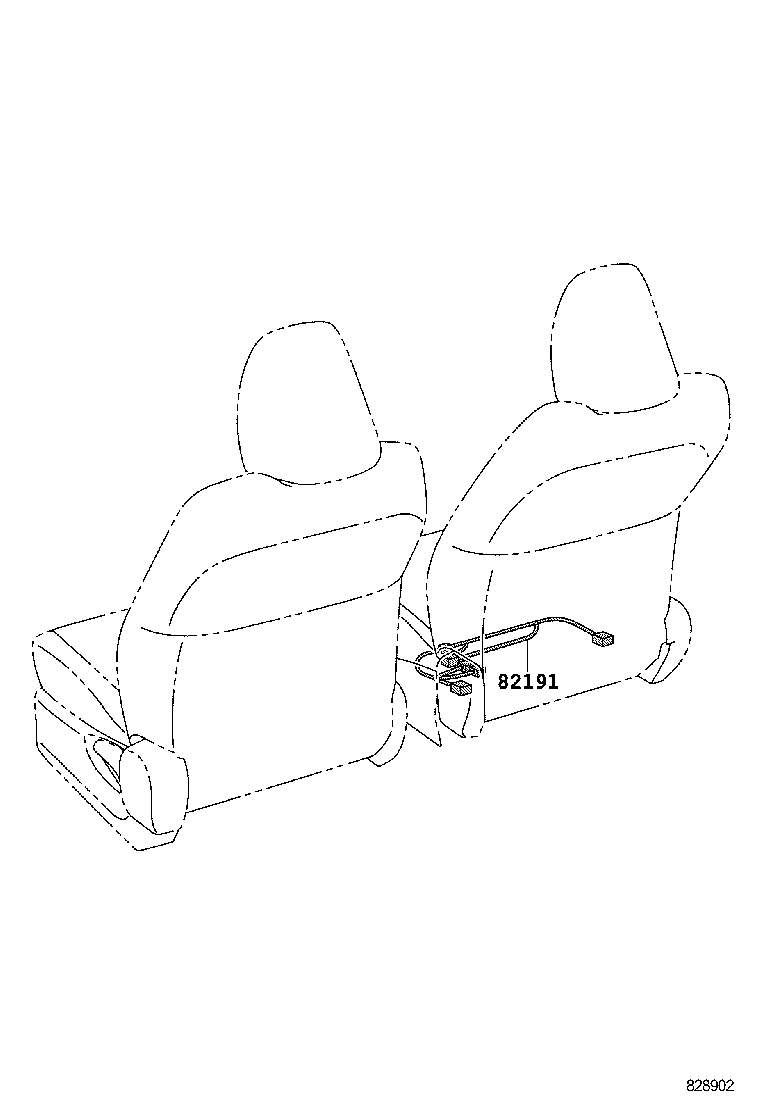

SEAT

Part #	Description	Period	Qty	Price
82191 - WIRE, FRONT SEAT, RH
82191-52010	NCP131	05/2013 - 07/2014	1

Part #

Description

Qty

Price

82191 - WIRE, FRONT SEAT, RH

82191-52010

NCP131

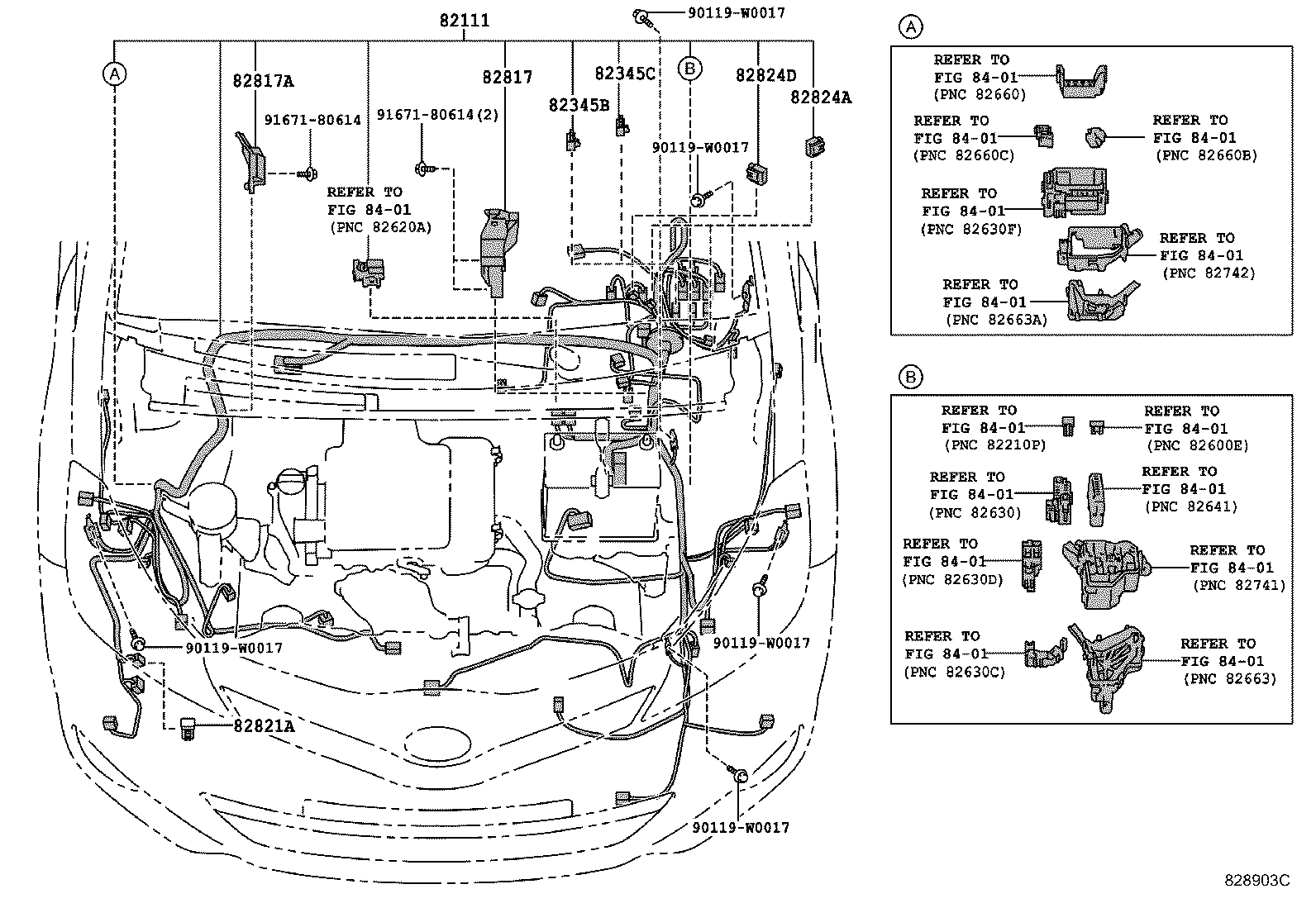

ILLUST NO. 1 OF10(1305- )

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-0UD30	NCP131..5F..USA	05/2013 - 07/2014	1
82111-0UD50	NCP131..5F..USA DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH)	05/2013 - 07/2014	1
82111-0UD70	NCP131..5F..USA PUERTO RICO SPEC	05/2013 - 07/2014	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-0D420	NCP131	05/2013 - 07/2014	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-0D430	NCP131	05/2013 - 07/2014	1
82821A - COVER, CONNECTOR
82821-35050	NCP131..USA COLD AREA SPEC	05/2013 - 07/2014	1
82821-35050	NCP131..USA PUERTO RICO SPEC	05/2013 - 07/2014	1
82821-35050	NCP131..USA	05/2013 - 07/2014	1
Common parts
90119-W0017
91671-80614
Linked diagrams
8401

ILLUST NO. 3 OF10(1305- )

Click highlighted areas on diagram

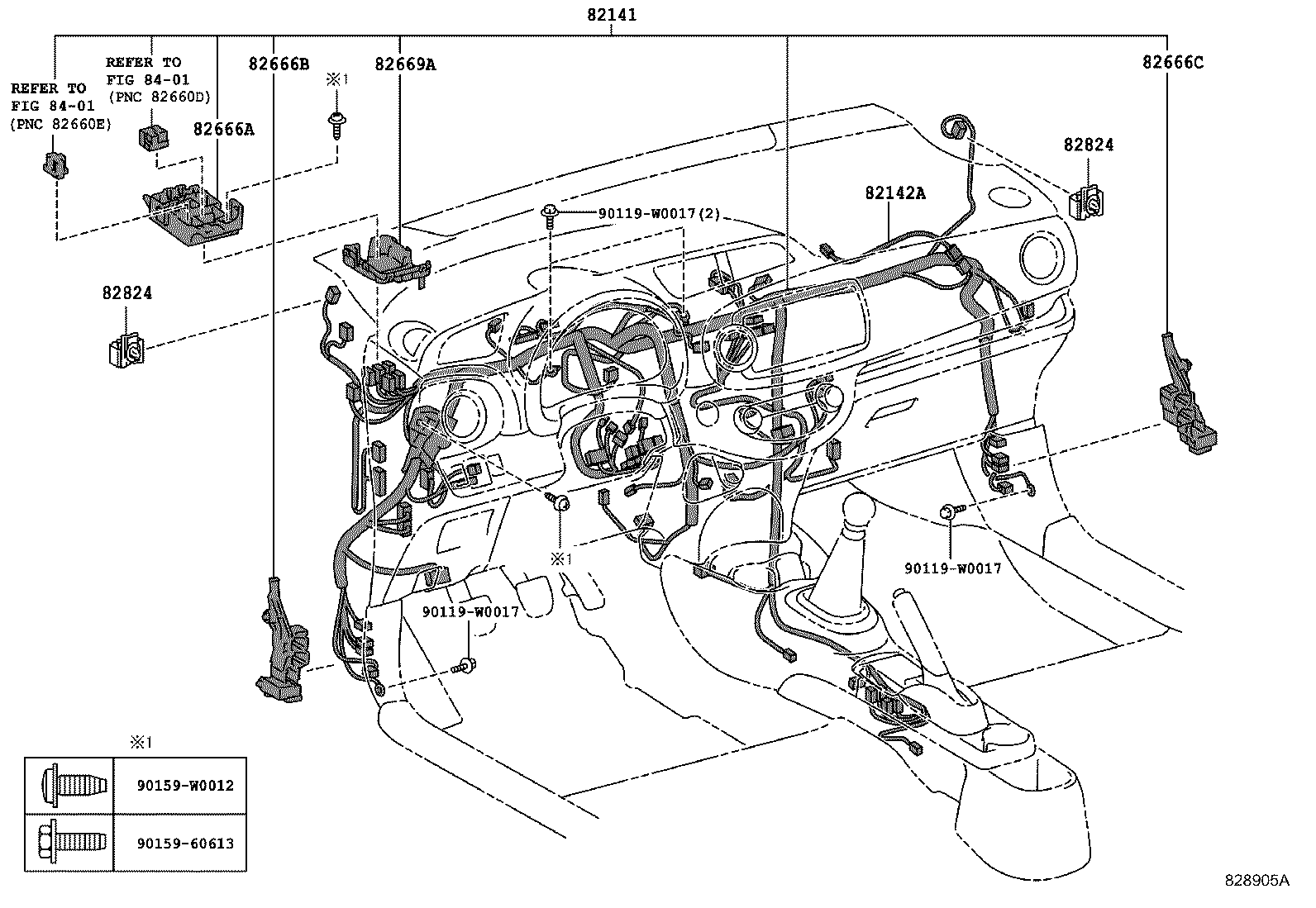

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82145-0DZ00	NCP131..USA PUERTO RICO SPEC	05/2013 - 07/2014	1
82145-0DZ60	NCP131..5D..USA WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT & REAR)&DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH)	05/2013 - 07/2014	1
82145-0DZ50	NCP131..USA DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH)	05/2013 - 07/2014	1
82145-0DZ10	NCP131..USA PUERTO RICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)	05/2013 - 07/2014	1
82145-0DZ30	NCP131..5D..USA WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT & REAR)	05/2013 - 07/2014	1
82145-0DZ20	NCP131..USA	05/2013 - 07/2014	1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82140-0D060	NCP131	05/2013 - 07/2014	1
82666A - HOLDER, CONNECTOR NO.2
82666-0D110	NCP131	05/2013 - 07/2014	1
82666B - HOLDER, CONNECTOR NO.3
82666-0D070	NCP131	05/2013 - 07/2014	1
82666C - HOLDER, CONNECTOR NO.4
82666-0D080	NCP131	05/2013 - 07/2014	1
82669A - COVER, CONNECTOR HOLDER BLOCK, LOWER
82669-0D010	NCP131	05/2013 - 07/2014	1
82824 - CONNECTOR, WIRING HARNESS
82824-52310	NCP131..USA AUDIO-RADIO LESS & 6SPEAKER	05/2013 - 07/2014	2
82824-52310	NCP131..USA	05/2013 - 07/2014	2
82824 - CONNECTOR, WIRING HARNESS
82824-52310	NCP131..USA AUDIO-RADIO LESS & 6SPEAKER	05/2013 - 07/2014	2
82824-52310	NCP131..USA	05/2013 - 07/2014	2
Common parts
90119-W0017
90159-60613
90159-W0012
Linked diagrams
8401

ILLUST NO. 4 OF10(1305- )

Click highlighted areas on diagram

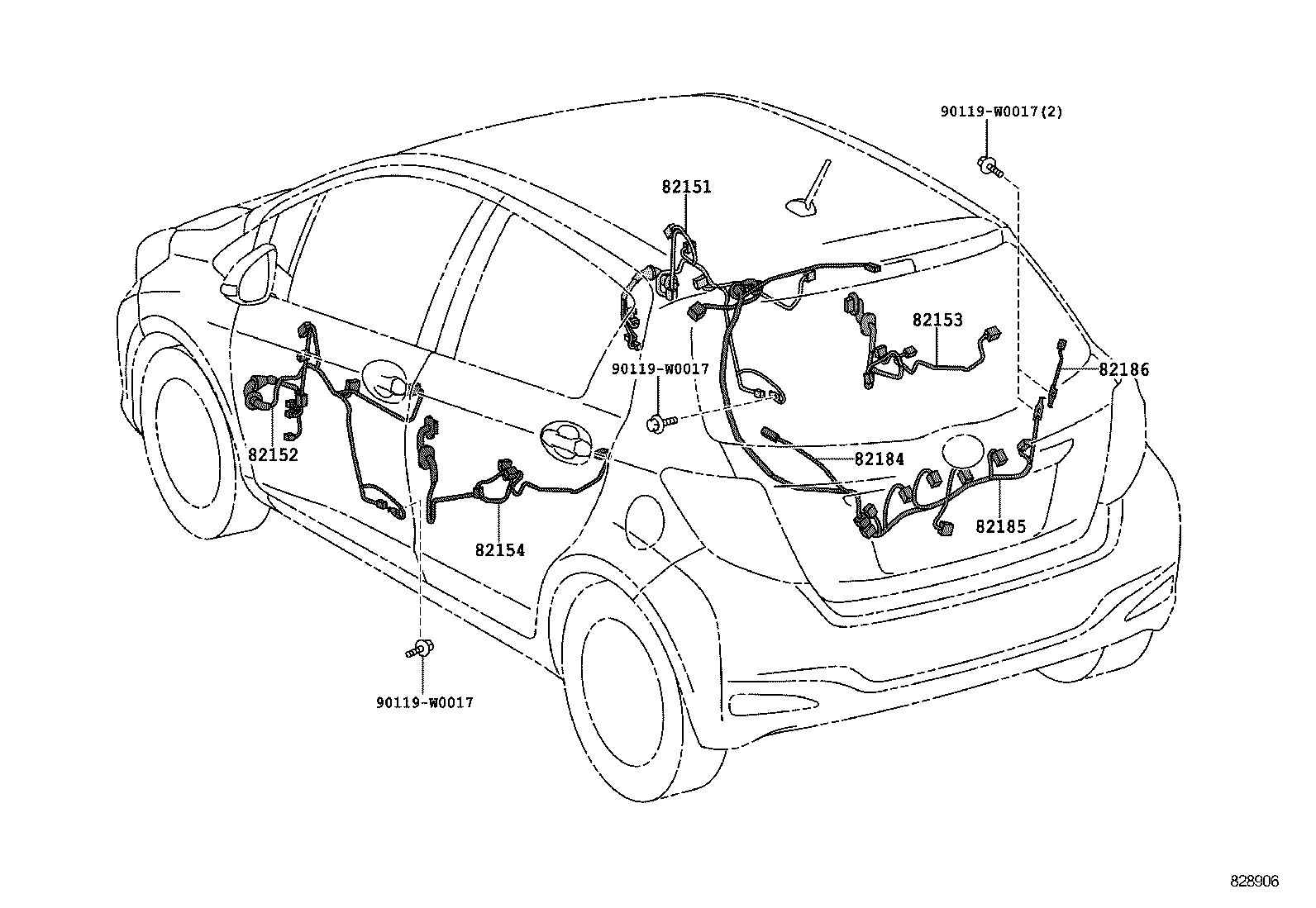

DOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-0DM40	NCP131..5D POWER WINDOW-WITH(FRONT & REAR)	05/2013 - 07/2014	1
82151-0DM20	NCP131..5D	05/2013 - 07/2014	1
82152 - WIRE, FRONT DOOR, LH
82152-0DM40	NCP131..5D POWER WINDOW-WITH(FRONT & REAR)	05/2013 - 07/2014	1
82152-0DM20	NCP131..5D	05/2013 - 07/2014	1
82153 - WIRE, REAR DOOR, NO.1
82153-0D640	NCP131..5D	05/2013 - 07/2014	1
82153-0D650	NCP131..5D POWER WINDOW-WITH(FRONT & REAR)	05/2013 - 07/2014	1
82154 - WIRE, REAR DOOR, NO.2
82154-0D540	NCP131..5D	05/2013 - 07/2014	1
82154-0D550	NCP131..5D POWER WINDOW-WITH(FRONT & REAR)	05/2013 - 07/2014	1
82184 - WIRE, BACK DOOR, NO.1
82184-0D450	NCP131	05/2013 - 07/2014	1
82185 - WIRE, BACK DOOR, NO.2
82185-0D450	NCP131	05/2013 - 07/2014	1
82186 - WIRE, REAR WINDOW, NO.1
82186-0D030	NCP131	05/2013 - 07/2014	1
Common parts
90119-W0017

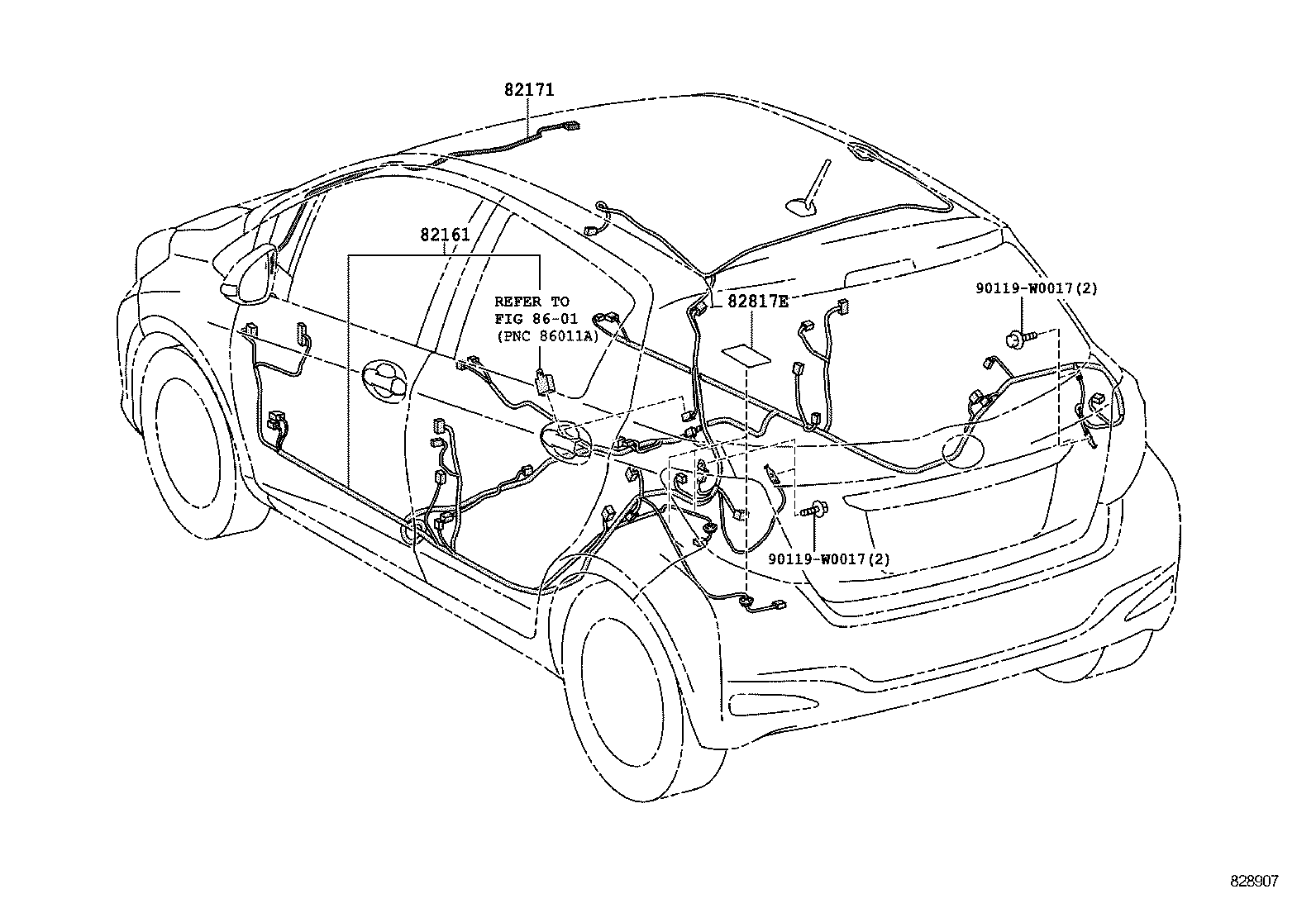

ILLUST NO. 5 OF10(1305- )

Click highlighted areas on diagram

FLOOR & ROOF

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-0DM60	NCP131..5D..USA PUERTO RICO SPEC	05/2013 - 07/2014	1
82161-0DM50	NCP131..5D..USA	05/2013 - 07/2014	1
82171 - WIRE, ROOF, NO.1
82171-0D370	NCP131	05/2013 - 07/2014	1
82171-0D180	NCP131..USA PUERTO RICO SPEC	05/2013 - 07/2014	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-52710	NCP131	05/2013 - 07/2014	3
Common parts
90119-W0017
Linked diagrams
8601

ILLUST NO. 7 OF10(1305- )

Click highlighted areas on diagram

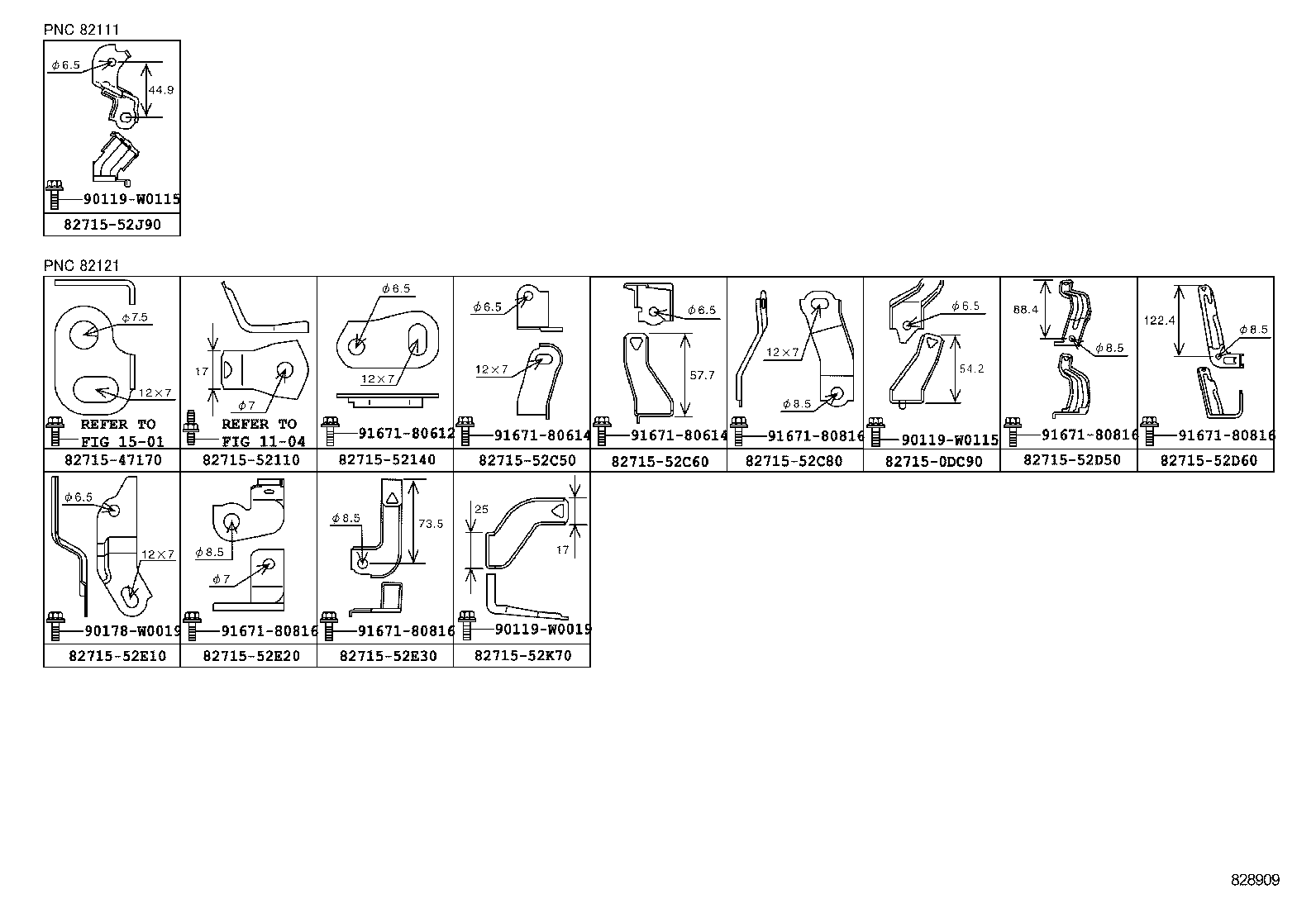

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82715-0DC90
82715-47170
82715-52110
82715-52140
82715-52C50
82715-52C60
82715-52C80
82715-52D50
82715-52D60
82715-52E10
82715-52E20
82715-52E30
82715-52J90
82715-52K70
90119-W0019
90119-W0115
90178-W0019
91671-80612
91671-80614
91671-80816
Linked diagrams
1104
1501

ILLUST NO. 2 OF10(1305- )

Click highlighted areas on diagram

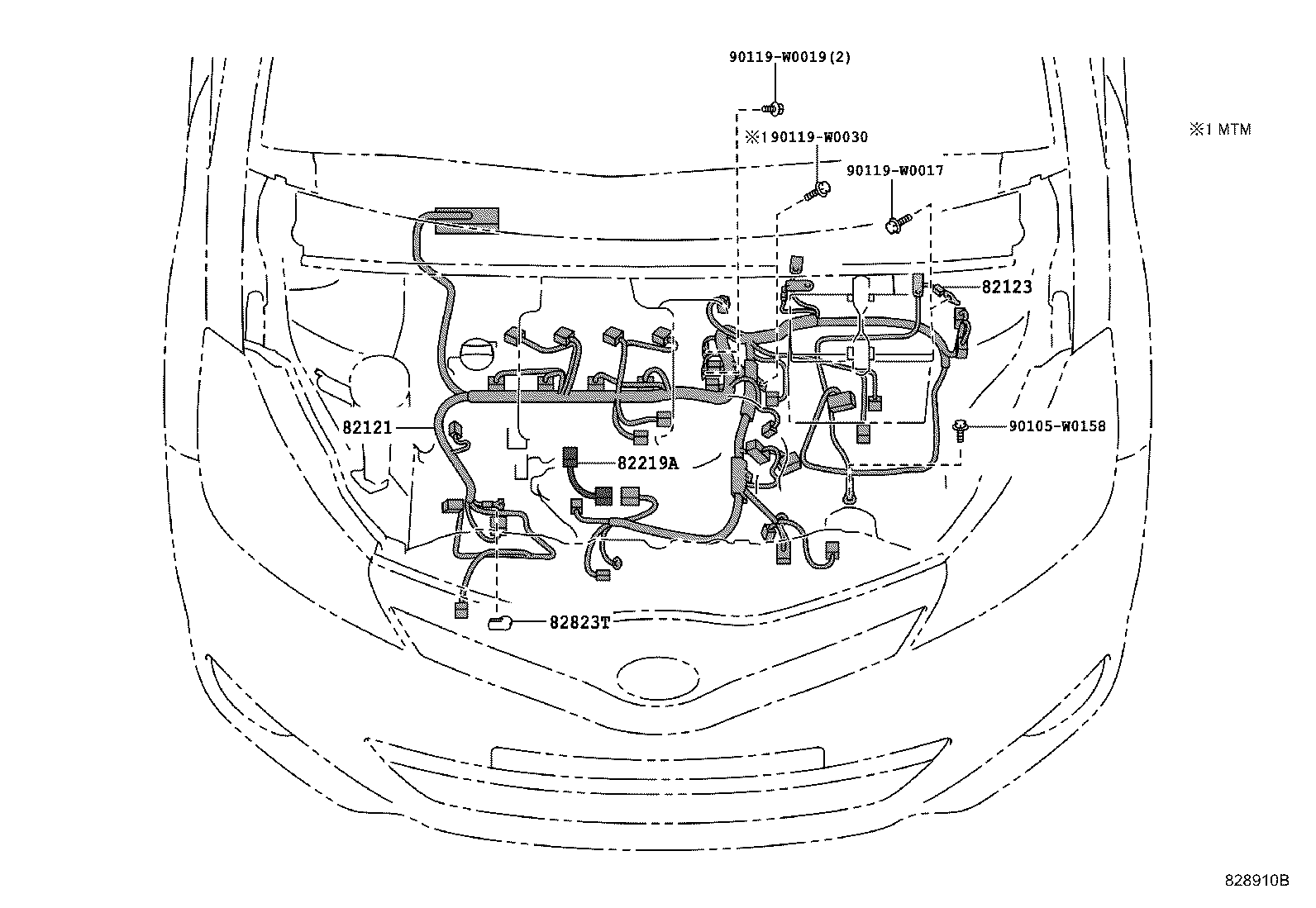

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-0DM70	NCP131..5F	05/2013 - 07/2014	1
82123 - WIRE, ENGINE, NO.3
82123-0D530	NCP131..5F	05/2013 - 07/2014	1
82219A - WIRE, SENSOR
82219-52040	NCP131	05/2013 - 07/2014	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	NCP131	05/2013 - 07/2014	1
Common parts
90105-W0158
90119-W0017
90119-W0019
90119-W0030

ILLUST NO. 8 OF10(1305- )

Click highlighted areas on diagram

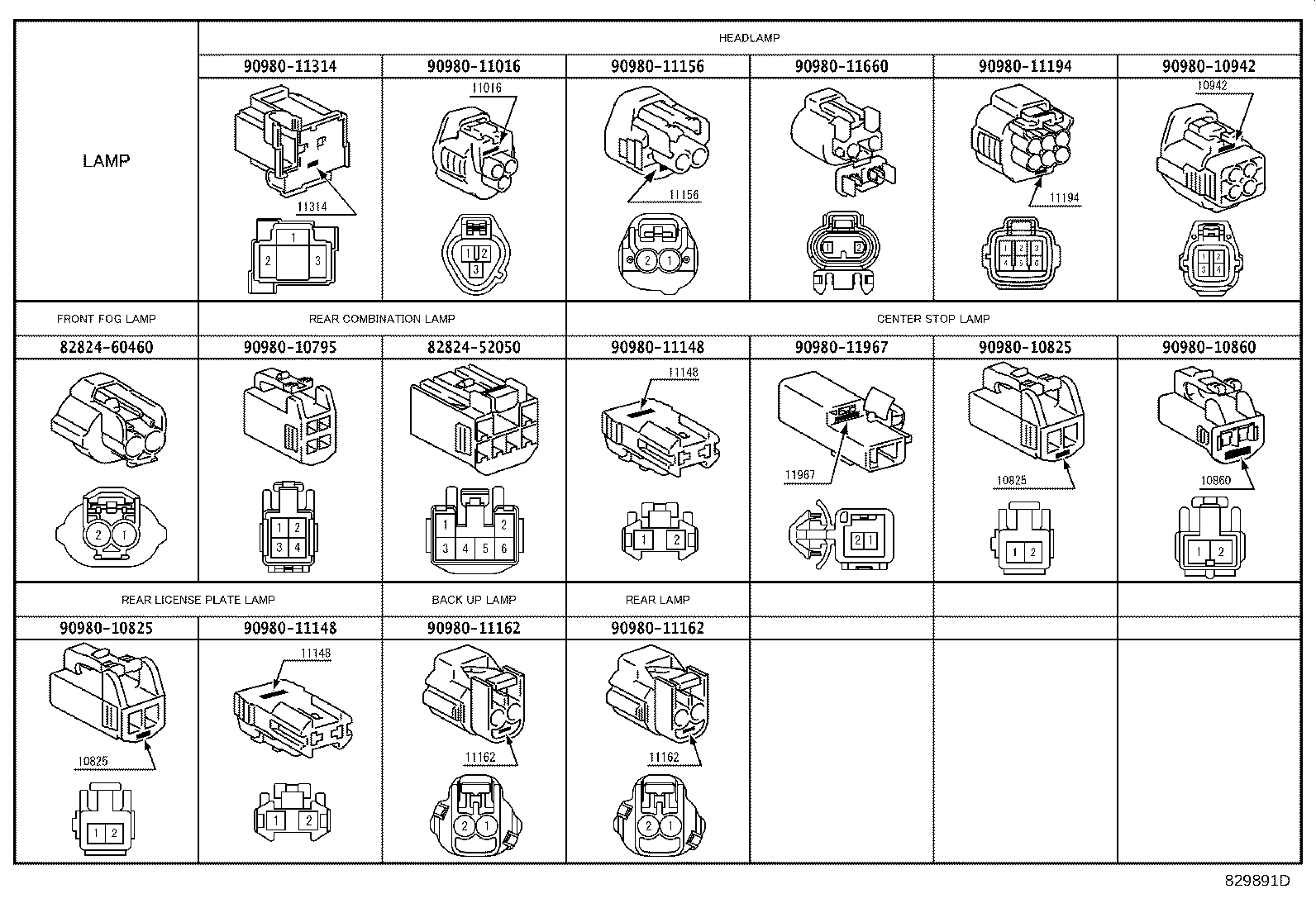

CONNECTOR 1/3

Part #	Description	Period	Qty	Price
Common parts
82824-52050
82824-60460
90980-10795
90980-10825
90980-10860
90980-10942
90980-11016
90980-11148
90980-11156
90980-11162
90980-11194
90980-11314
90980-11660
90980-11967

ILLUST NO. 9 OF10(1305- )

Click highlighted areas on diagram

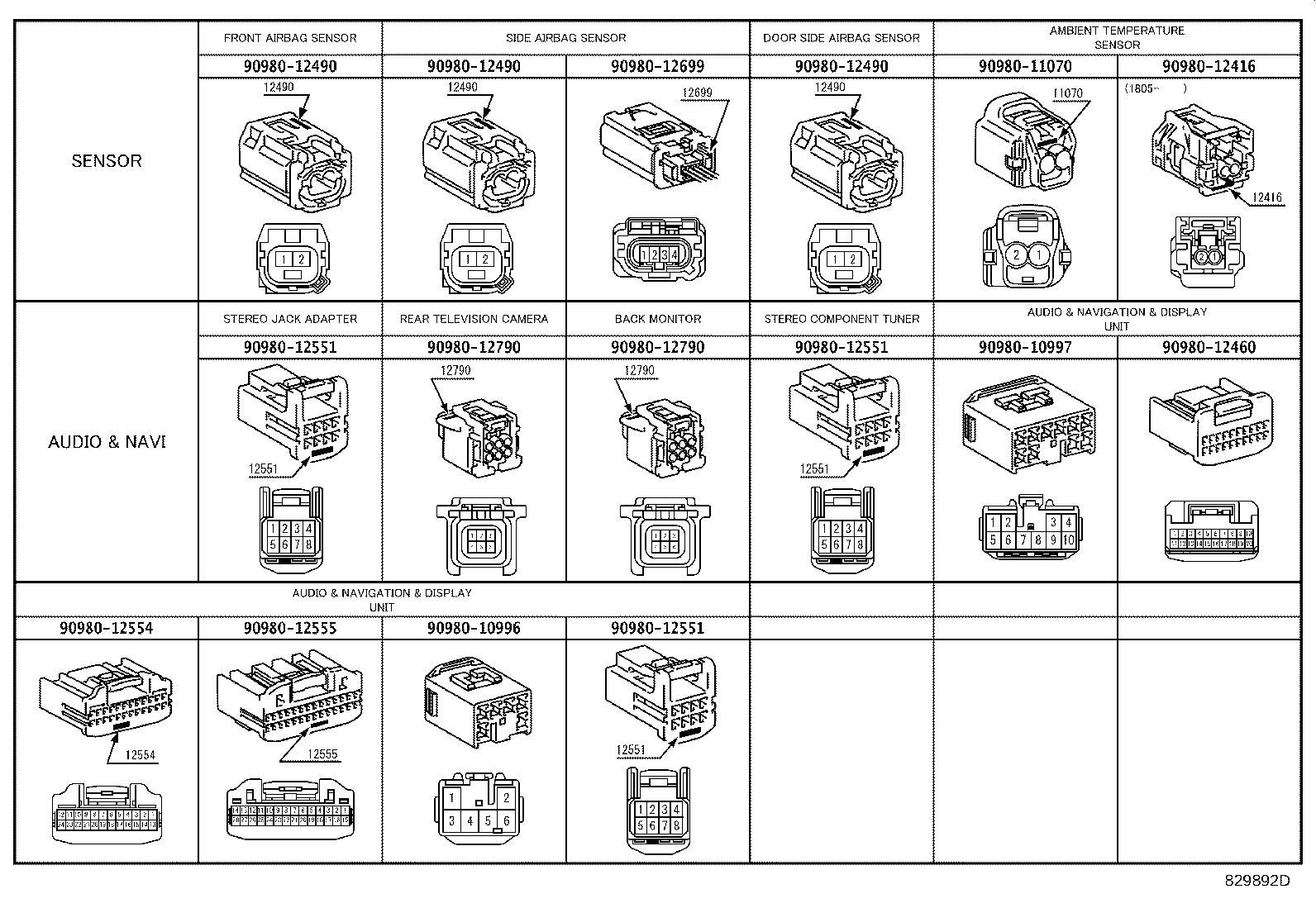

CONNECTOR 2/3

Part #	Description	Period	Qty	Price
Common parts
90980-10996
90980-10997
90980-11070
90980-12416
90980-12460
90980-12490
90980-12551
90980-12554
90980-12555
90980-12699
90980-12790

ILLUST NO.10 OF10(1305- )

Click highlighted areas on diagram

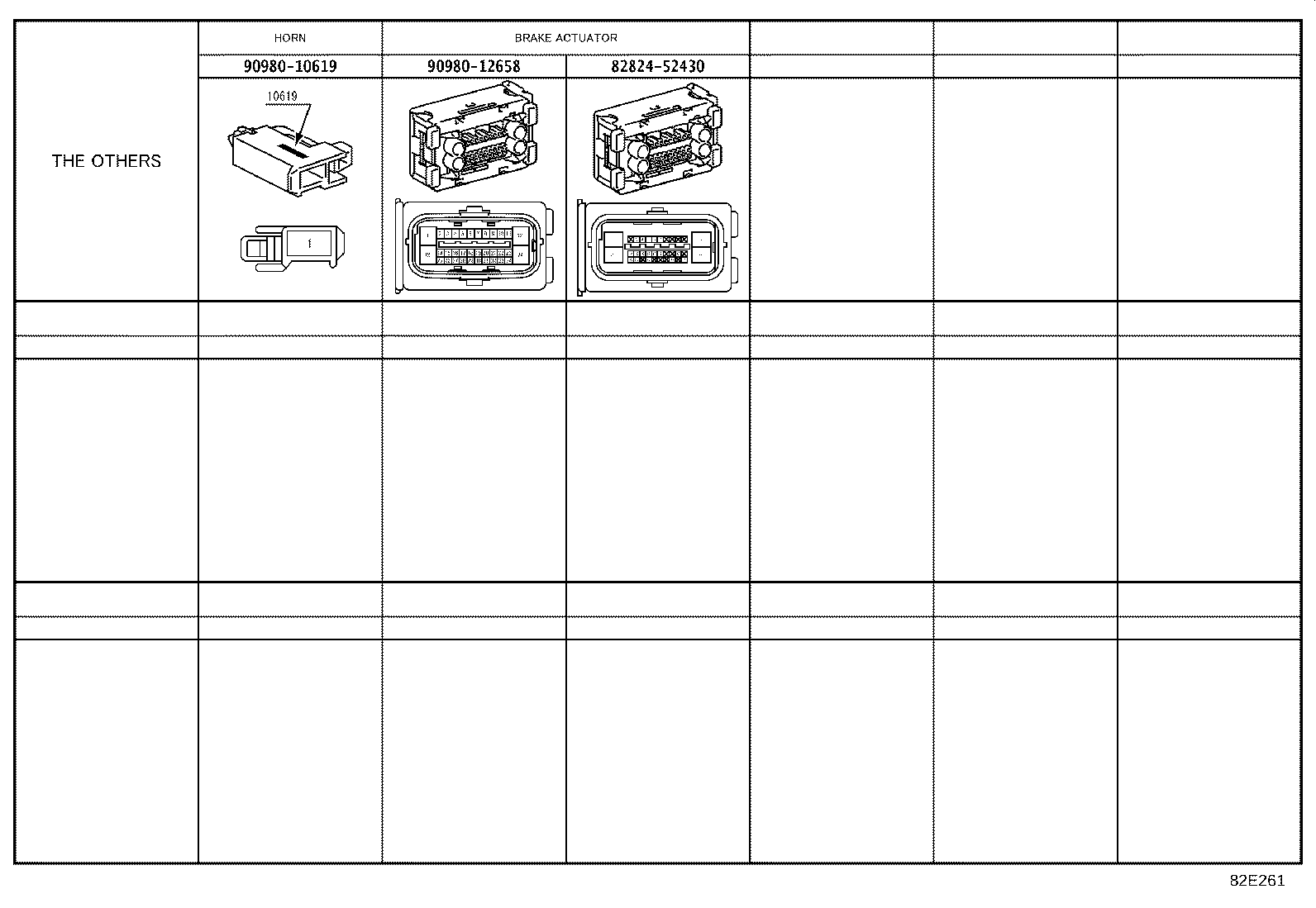

CONNECTOR 3/3

Part #	Description	Period	Qty	Price
Common parts
82824-52430
90980-10619
90980-12658
