NCP131L-CHMRKA (2013)

Toyota Yaris (Frp)

Production May 2013 - Jul 2014
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1305- )

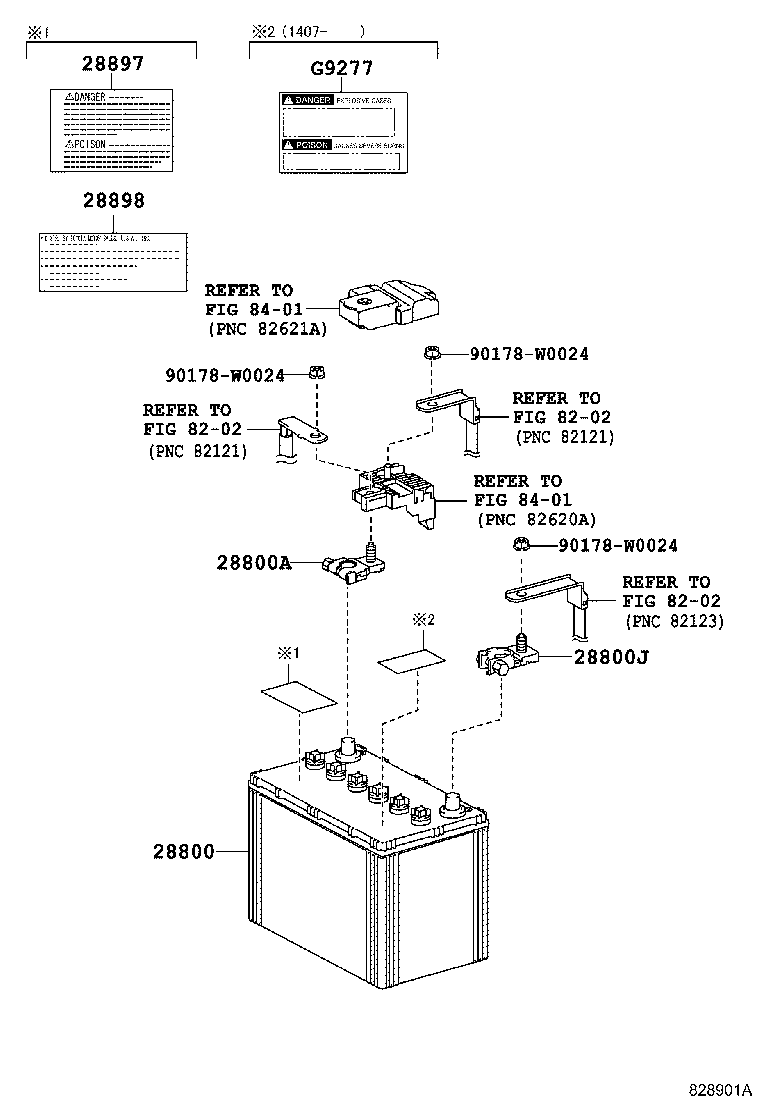

Click highlighted areas on diagram

diagram 28800 28800A 28800J 28897 28898 8202 8202 8202 8401 8401 90178W0024 90178W0024 90178W0024 G9277
Part # Description Qty Price
28800 - BATTERY
28800-43262

1NZFE..NCP131

55D23L,PANASONIC,FURUKAWA

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05061

1NZFE..NCP131

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06059

1NZFE..NCP131

 1
Common parts
90178-W0024
Linked diagrams
8202
8401
