NCP131L-CHMRKA (2013)

Toyota Yaris (Frp)

Production May 2013 - Jul 2014
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1305- )

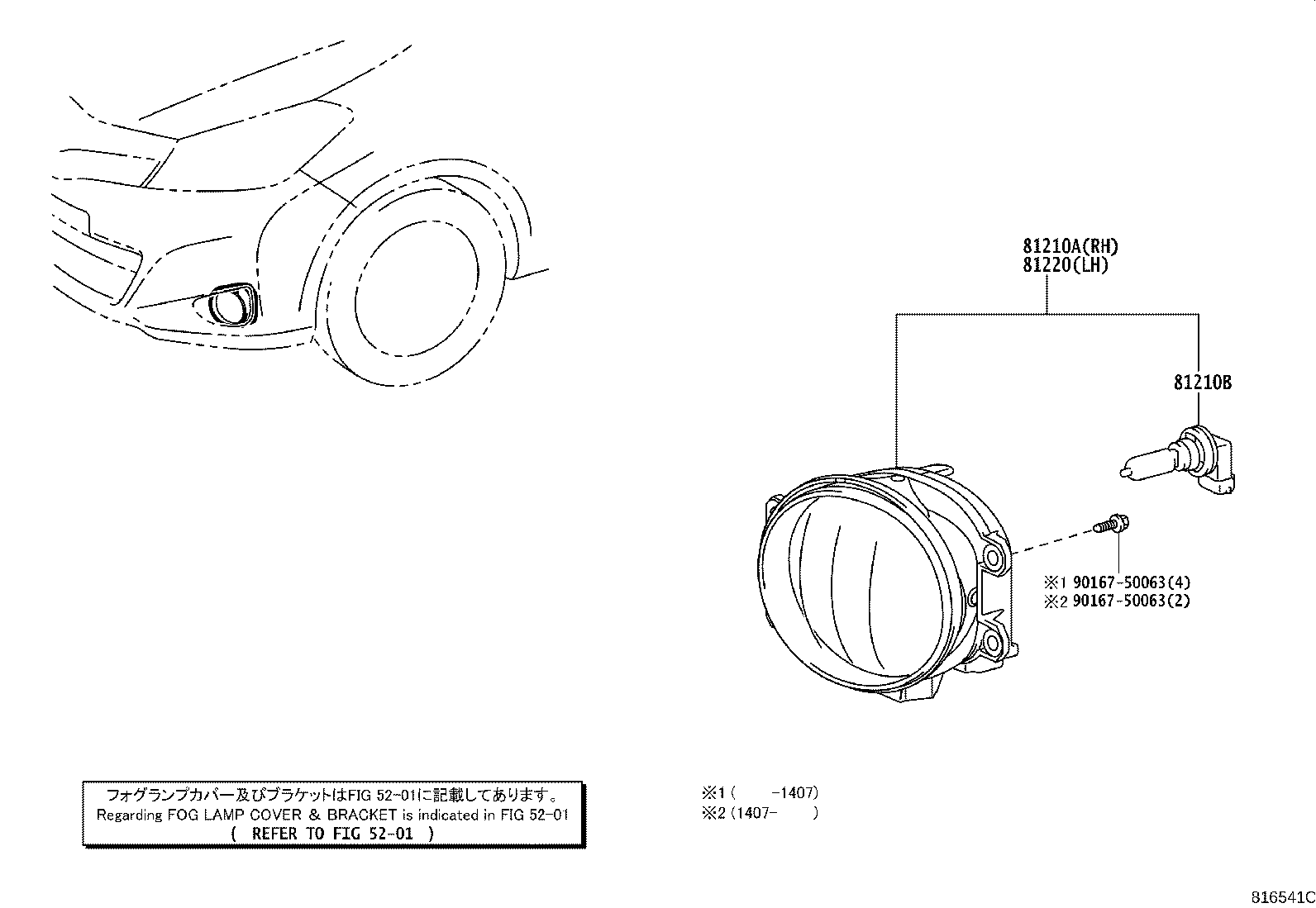

Click highlighted areas on diagram

diagram 5201 81210A 81210B 81220 9016750063 9016750063
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-02110

NCP131

FRONT FOG & DRIVING LAMP-WITH

 1
81210B - BULB, FOG LAMP
90981-WD016

NCP131

12V 19W,FRONT FOG & DRIVING LAMP-WITH

 2
81220 - LAMP ASSY, FOG, LH
81220-02110

NCP131

FRONT FOG & DRIVING LAMP-WITH

 1
Common parts
90167-50063
Linked diagrams
5201
