NCP131L-CHMRKA (2013)

Toyota Yaris (Frp)

Production May 2013 - Jul 2014
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1305- )

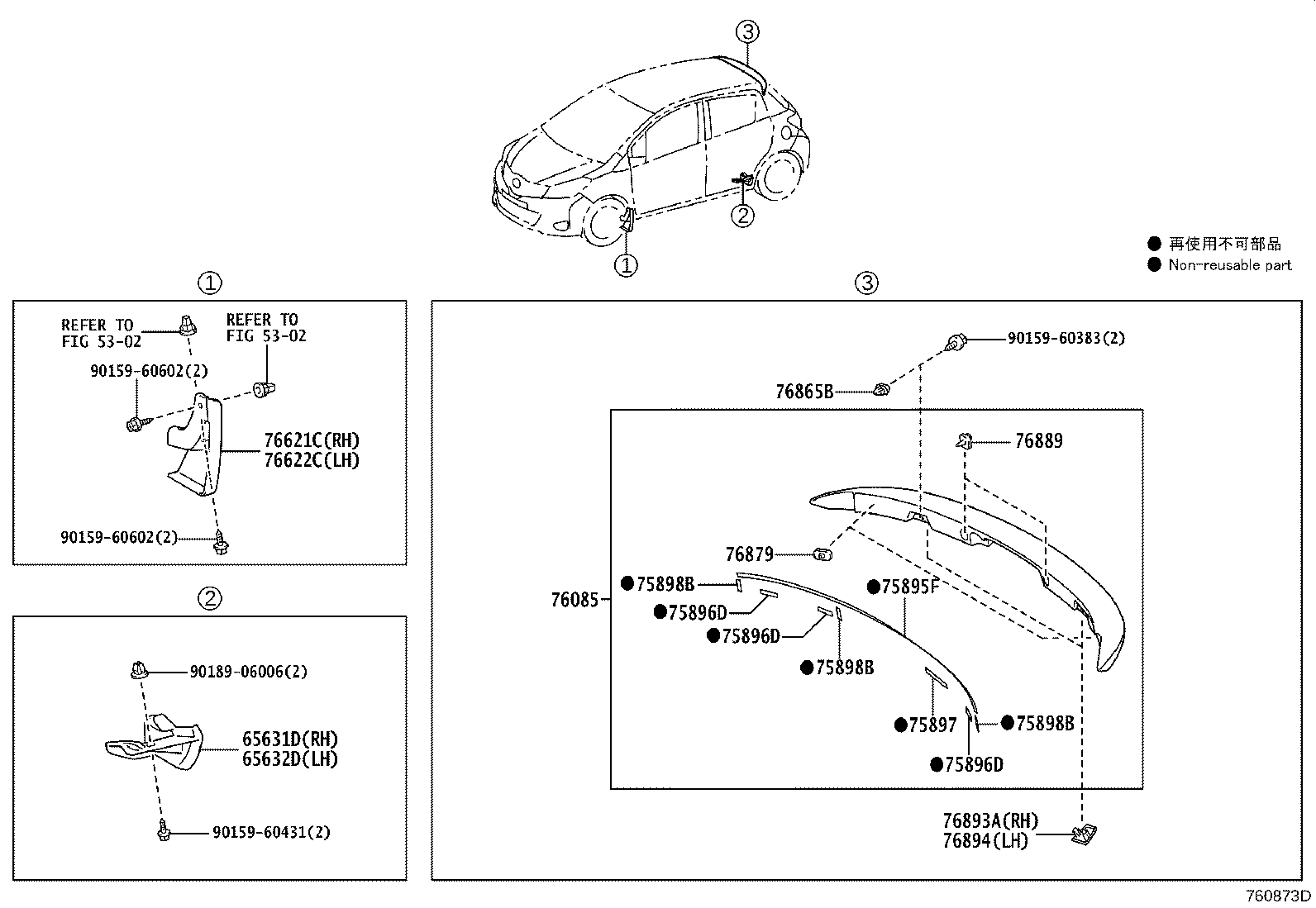

Click highlighted areas on diagram

diagram 5302 5302 65631D 65632D 75895F 75896D 75896D 75896D 75897 75898B 75898B 75898B 76085 76621C 76622C 76865B 76879 76889 76893A 76894 9015960383 9015960431 9015960602 9015960602 9018906006
Part # Description Qty Price
65631D - PLATE, REAR WHEEL HOUSE, FRONT RH
65631-0D050

NCP131

 1
65632D - PLATE, REAR WHEEL HOUSE, FRONT LH
65632-0D050

NCP131

 1
75895F - TAPE, MOULDING, NO.1
75895-0D240

NCP131..USA

REAR SPOILER-WITH

 1
75896D - TAPE, MOULDING, NO.2
75896-0D060

NCP131..USA

REAR SPOILER-WITH

 3
75896D - TAPE, MOULDING, NO.2
75896-0D060

NCP131..USA

REAR SPOILER-WITH

 3
75896D - TAPE, MOULDING, NO.2
75896-0D060

NCP131..USA

REAR SPOILER-WITH

 3
75897 - TAPE, MOULDING, NO.3
75897-0D030

NCP131..USA

REAR SPOILER-WITH

 1
75898B - TAPE, MOULDING, NO.4
75898-0D030

NCP131..USA

REAR SPOILER-WITH

 3
75898B - TAPE, MOULDING, NO.4
75898-0D030

NCP131..USA

REAR SPOILER-WITH

 3
75898B - TAPE, MOULDING, NO.4
75898-0D030

NCP131..USA

REAR SPOILER-WITH

 3
76085 - SPOILER SUB-ASSY, REAR
76085-0D902

NCP131..USA

PAINT REQ.,REAR SPOILER-WITH

 1
76621C - MUDGUAD, FRONT FENDER, RH
76621-52120

NCP131..USA

MUD GUARD-WITH(FRONT ONLY)

 1
76622C - MUDGUARD, FRONT FENDER, LH
76622-52120

NCP131..USA

MUD GUARD-WITH(FRONT ONLY)

 1
76865B - RETAINER, REAR SPOILER
76865-0D030

NCP131..USA

REAR SPOILER-WITH

 2
76879 - CLIP, REAR SPOILER, NO.1
76879-0D080

NCP131..USA

REAR SPOILER-WITH

 2
76889 - CLIP, REAR SPOILER, NO.2
76889-0D040

NCP131..USA

REAR SPOILER-WITH

 2
76893A - COVER, REAR SPOILER, RH
76893-0D903

NCP131..USA

REAR SPOILER-WITH

 1
76894 - COVER, REAR SPOILER, LH
76894-0D903

NCP131..USA

REAR SPOILER-WITH

 1
Common parts
90159-60383
90159-60431
90159-60602
90189-06006
Linked diagrams
5302
