Toyota Yaris (frp) NCP131 REAR MOULDING

NCP131L-CHMRKA (2013)

Toyota Yaris (Frp)

Production May 2013 - Jul 2014

Engine 1NZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(1305-1407)

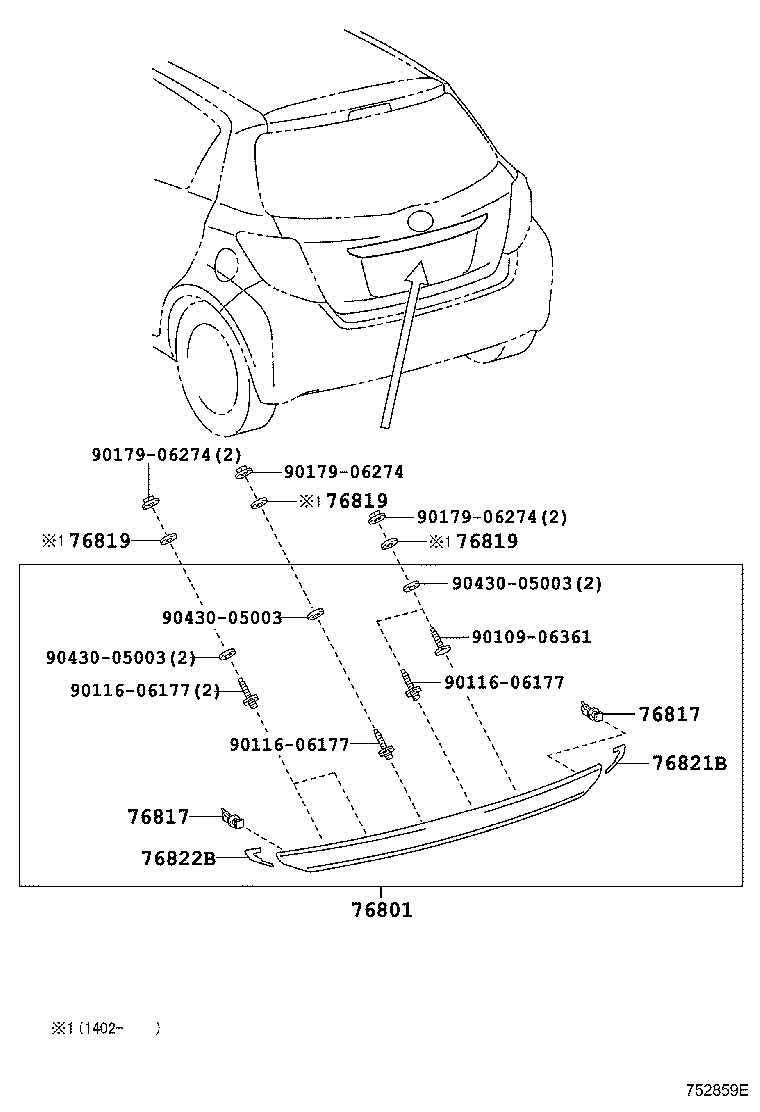

Click highlighted areas on diagram

W(KEY SYLINDER)

Part #	Description	Period	Qty
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801-0D191	NCP131..USA PLATED,PUERTO RICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)	05/2013 - 08/2013	1
76801-0D191	NCP131 PLATED,WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)	05/2013 - 08/2013	1
76801-0D192	NCP131 PLATED,WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)	09/2013 - 07/2014	1
76801-0D192	NCP131..USA PLATED,PUERTO RICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)	09/2013 - 07/2014	1
76801-52370	NCP131 PLATED	05/2013 - 07/2014	1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-50010	NCP131	05/2013 - 07/2014	2
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-50010	NCP131	05/2013 - 07/2014	2
76819 - SEAL, BACK DOOR OUTSIDE GARNISH
76819-0D010	NCP131	02/2014 - 07/2014	5
76819-0D010	NCP131..USA PUERTO RICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)	09/2013 - 02/2014	5
76819-0D010	NCP131 WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)	09/2013 - 02/2014	5
76819 - SEAL, BACK DOOR OUTSIDE GARNISH
76819-0D010	NCP131	02/2014 - 07/2014	5
76819-0D010	NCP131..USA PUERTO RICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)	09/2013 - 02/2014	5
76819-0D010	NCP131 WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)	09/2013 - 02/2014	5
76819 - SEAL, BACK DOOR OUTSIDE GARNISH
76819-0D010	NCP131	02/2014 - 07/2014	5
76819-0D010	NCP131..USA PUERTO RICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)	09/2013 - 02/2014	5
76819-0D010	NCP131 WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)	09/2013 - 02/2014	5
76821B - PROTECTOR, BACK DOOR GARNISH SIDE, RH
76821-52140	NCP131	05/2013 - 07/2014	1
76821-0D030	NCP131..USA PUERTO RICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)	05/2013 - 07/2014	1
76821-0D030	NCP131 WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)	05/2013 - 07/2014	1
76822B - PROTECTOR, BACK DOOR GARNISH SIDE, LH
76822-0D010	NCP131..USA PUERTO RICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)	05/2013 - 07/2014	1
76822-0D010	NCP131 WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)	05/2013 - 07/2014	1
76822-52070	NCP131	05/2013 - 07/2014	1
Common parts
90109-06361
90116-06177
90179-06274
90430-05003

(1305-1407)

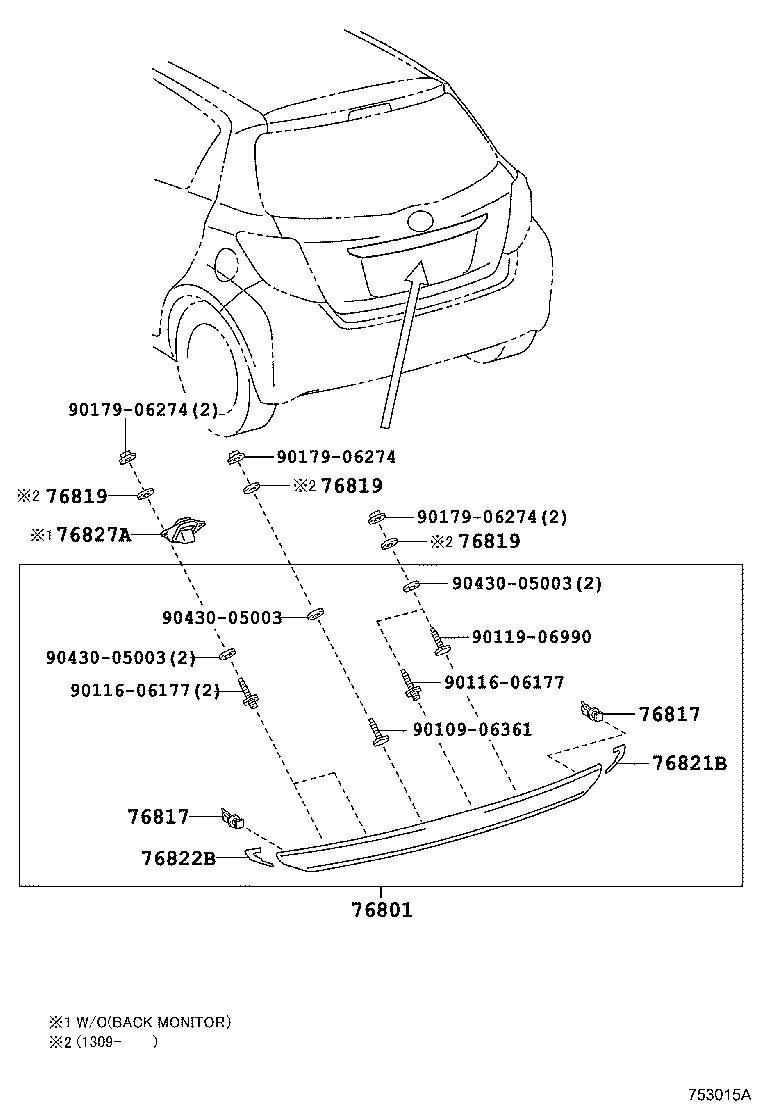

Click highlighted areas on diagram

W(WIRELESS DOOR LOCK)

Part #	Description	Period	Qty
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801-0D191	NCP131..USA PLATED,PUERTO RICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)	05/2013 - 08/2013	1
76801-0D191	NCP131 PLATED,WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)	05/2013 - 08/2013	1
76801-0D192	NCP131 PLATED,WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)	09/2013 - 07/2014	1
76801-0D192	NCP131..USA PLATED,PUERTO RICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)	09/2013 - 07/2014	1
76801-52370	NCP131 PLATED	05/2013 - 07/2014	1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-50010	NCP131	05/2013 - 07/2014	2
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-50010	NCP131	05/2013 - 07/2014	2
76819 - SEAL, BACK DOOR OUTSIDE GARNISH
76819-0D010	NCP131	02/2014 - 07/2014	5
76819-0D010	NCP131..USA PUERTO RICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)	09/2013 - 02/2014	5
76819-0D010	NCP131 WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)	09/2013 - 02/2014	5
76819 - SEAL, BACK DOOR OUTSIDE GARNISH
76819-0D010	NCP131	02/2014 - 07/2014	5
76819-0D010	NCP131..USA PUERTO RICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)	09/2013 - 02/2014	5
76819-0D010	NCP131 WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)	09/2013 - 02/2014	5
76819 - SEAL, BACK DOOR OUTSIDE GARNISH
76819-0D010	NCP131	02/2014 - 07/2014	5
76819-0D010	NCP131..USA PUERTO RICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)	09/2013 - 02/2014	5
76819-0D010	NCP131 WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)	09/2013 - 02/2014	5
76821B - PROTECTOR, BACK DOOR GARNISH SIDE, RH
76821-52140	NCP131	05/2013 - 07/2014	1
76821-0D030	NCP131..USA PUERTO RICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)	05/2013 - 07/2014	1
76821-0D030	NCP131 WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)	05/2013 - 07/2014	1
76822B - PROTECTOR, BACK DOOR GARNISH SIDE, LH
76822-0D010	NCP131..USA PUERTO RICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)	05/2013 - 07/2014	1
76822-0D010	NCP131 WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)	05/2013 - 07/2014	1
76822-52070	NCP131	05/2013 - 07/2014	1
76827A - RETAINER, BACK DOOR GARNISH, NO.2
76827-0D010	NCP131..USA WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)	05/2013 - 07/2014	1
76827-0D010	NCP131 WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)	05/2013 - 07/2014	1
Common parts
90109-06361
90116-06177
90119-06990
90179-06274
90430-05003

NCP131L-CHMRKA (2013)

(1305-1407)

(1305-1407)
