NCP131L-CHMRKA (2013)
Toyota Yaris (Frp)
Production
May 2013
-
Jul 2014
Engine
1NZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

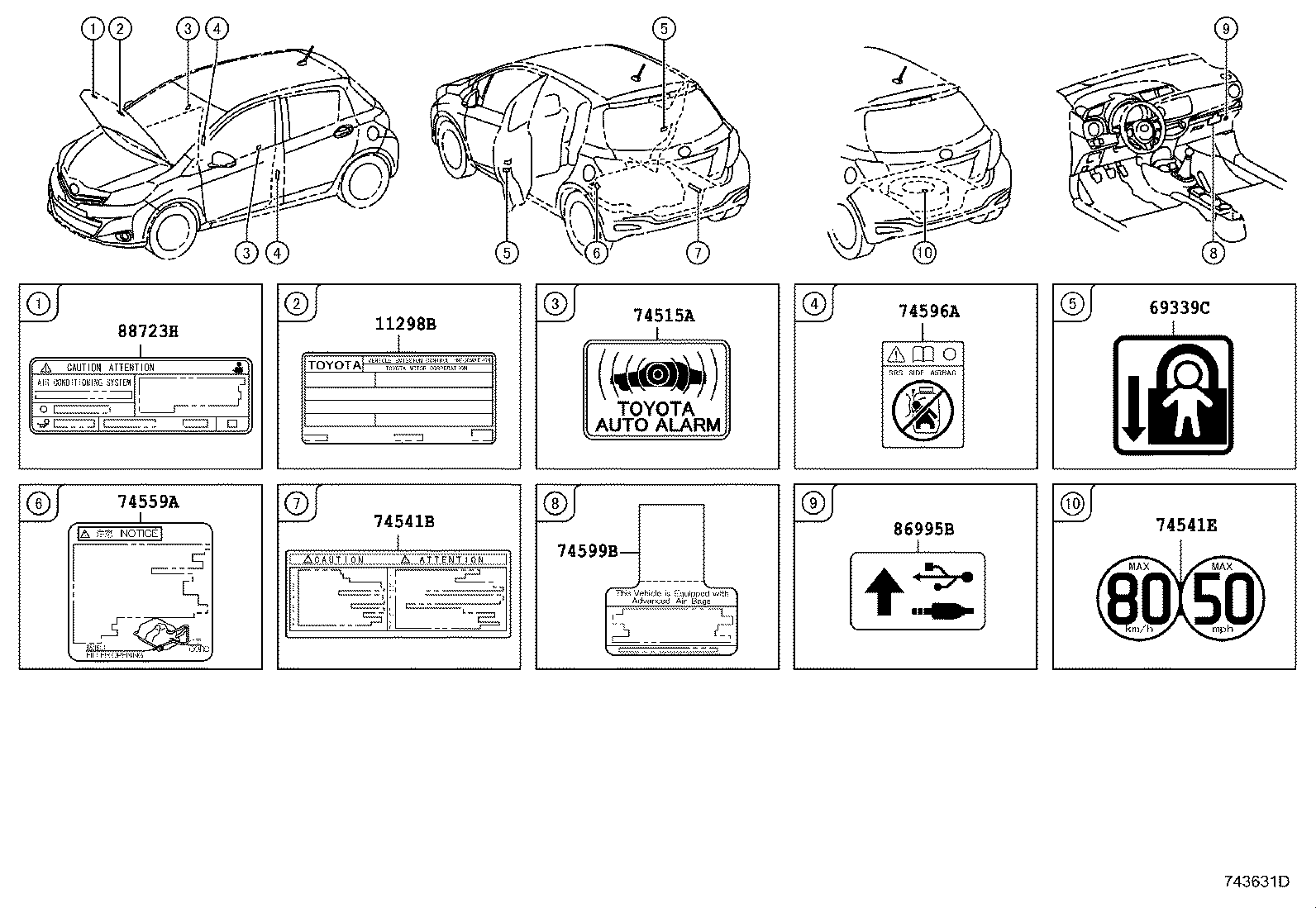

ILLUST NO. 2 OF 2(1305- )
Click highlighted areas on diagram
EXTERIOR & INTERIOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11298B - LABEL, EMISSION CONTROL INFORMATION | ||||
| 11298-21200 |
1NZFE..NCP131 |
1 | ||
| 69339C - LABEL, CHILD PROTECTOR INFORMATION | ||||
| 69339-0D040 |
NCP131..5D |
2 | ||
| 74515A - PLATE, THEFT WARNING | ||||
| 74515-33020 |
NCP131..USA PUERTO RICO SPEC&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER) |
2 | ||
| 74541B - PLATE, COMPACT SPARE TIRE CAUTION | ||||
| 42668-52020 |
NCP131 |
1 | ||
| 74559A - PLATE, FUEL CAUTION | ||||
| 74559-52020 |
NCP131 |
1 | ||
| 74596A - LABEL, SIDE AIR BAG CAUTION | ||||
| 74596-0F010 |
NCP131 |
2 | ||
| 74599B - LABEL, DRIVER & PASSENGER AIR BAG INFORMATION | ||||
| 74599-48020 |
NCP131..USA |
1 | ||
| 86995B - PLATE, CAUTION | ||||
| 86995-52010 |
NCP131 AUDIO JACK-WITH(AUX & USB) |
1 | ||
| 88723H - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-0D200 |
NCP131 |
1 | ||

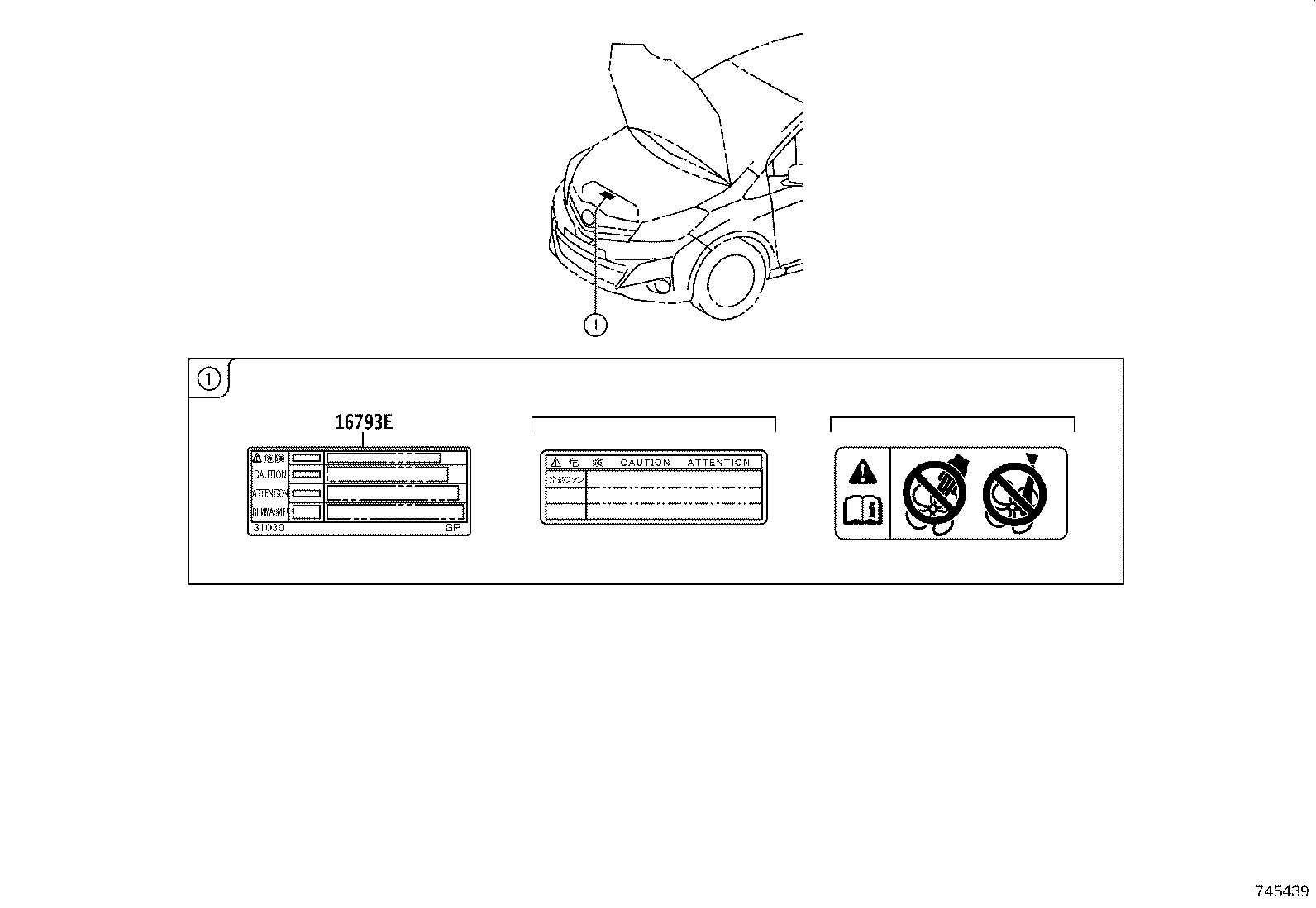

ILLUST NO. 1 OF 2(1305- )
Click highlighted areas on diagram
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16793E - LABEL, COOLING FAN CAUTION | ||||
| 16793-31030 |
1NZFE..NCP131 |
1 | ||
