NCP131L-CHMRKA (2013)
Toyota Yaris (Frp)

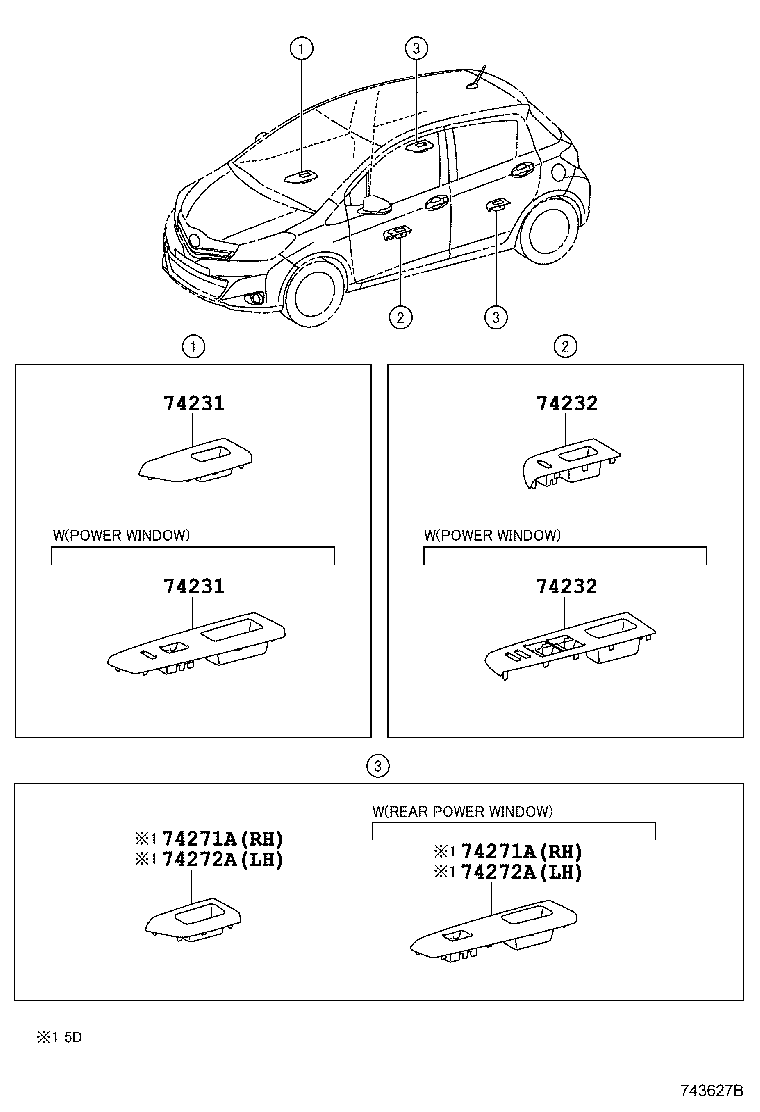

ILLUST NO. 1 OF 2(1305- )
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-52650C0 |
NCP131..5D POWER WINDOW-WITH(FRONT & REAR),BLACK,TRIM1# |
1 | ||
| 74231-0D290C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-52650C0 |
NCP131..5D POWER WINDOW-WITH(FRONT & REAR),BLACK,TRIM1# |
1 | ||
| 74231-0D290C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-0D310C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 74232-0D340C0 |
NCP131..5D POWER WINDOW-WITH(FRONT & REAR),BLACK,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-0D310C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 74232-0D340C0 |
NCP131..5D POWER WINDOW-WITH(FRONT & REAR),BLACK,TRIM1# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-0D120C0 |
NCP131..5D BLACK,TRIM1# |
1 | ||
| 74271-0D110C0 |
NCP131..5D POWER WINDOW-WITH(FRONT & REAR),BLACK,TRIM1# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-0D120C0 |
NCP131..5D BLACK,TRIM1# |
1 | ||
| 74271-0D110C0 |
NCP131..5D POWER WINDOW-WITH(FRONT & REAR),BLACK,TRIM1# |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-0D110C0 |
NCP131..5D POWER WINDOW-WITH(FRONT & REAR),BLACK,TRIM1# |
1 | ||
| 74272-0D120C0 |
NCP131..5D BLACK,TRIM1# |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-0D110C0 |
NCP131..5D POWER WINDOW-WITH(FRONT & REAR),BLACK,TRIM1# |
1 | ||
| 74272-0D120C0 |
NCP131..5D BLACK,TRIM1# |
1 | ||

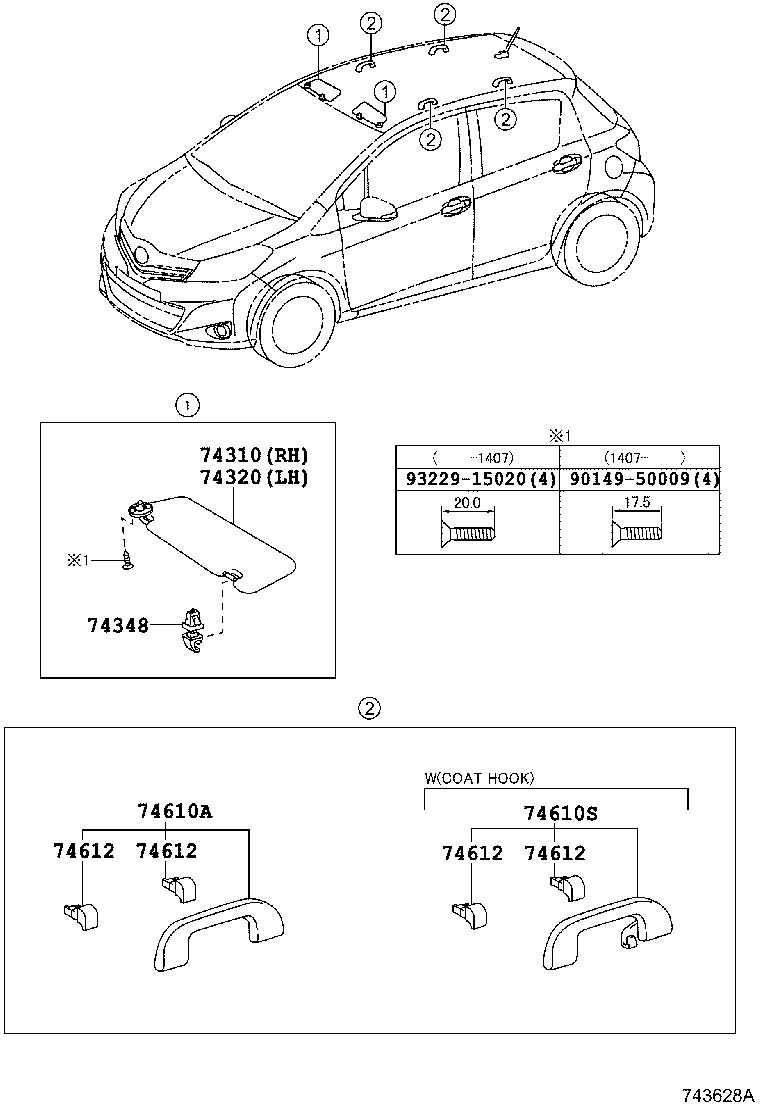

ILLUST NO. 2 OF 2(1305- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-52B71B0 |
NCP131..USA LT.GRAY,TRIM1# |
1 | ||
| 74310-52B81B0 |
NCP131..USA SUN VISOR-WITH(*DRP MIRROR),LT.GRAY,TRIM1# |
1 | ||
| 74310-52B90B0 |
NCP131..USA SUN VISOR-WITH(*DRP MIRROR) & WITH(EXTENSION),LT.GRAY,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-52B61B0 |
NCP131 LT.GRAY,TRIM1# |
1 | ||
| 74320-52B70B0 |
NCP131..USA SUN VISOR-WITH(*DRP MIRROR) & WITH(EXTENSION),LT.GRAY,TRIM1# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-33040B1 |
NCP131 LT.GRAY,TRIM1# |
1 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-05140B0 |
NCP131 LT.GRAY,TRIM1# |
3 | ||
| 74610S - GRIP ASSY, ASSIST | ||||
| 74610-05130B0 |
NCP131 LT.GRAY,TRIM1# |
1 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-0D080B1 |
NCP131 LT.GRAY,TRIM1# |
8 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-0D080B1 |
NCP131 LT.GRAY,TRIM1# |
8 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-0D080B1 |
NCP131 LT.GRAY,TRIM1# |
8 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-0D080B1 |
NCP131 LT.GRAY,TRIM1# |
8 | ||
| Common parts | ||||
| 90149-50009 | ||||
| 93229-15020 | ||||
