NCP131L-CHMRKA (2013)

Toyota Yaris (Frp)

Production May 2013 - Jul 2014
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

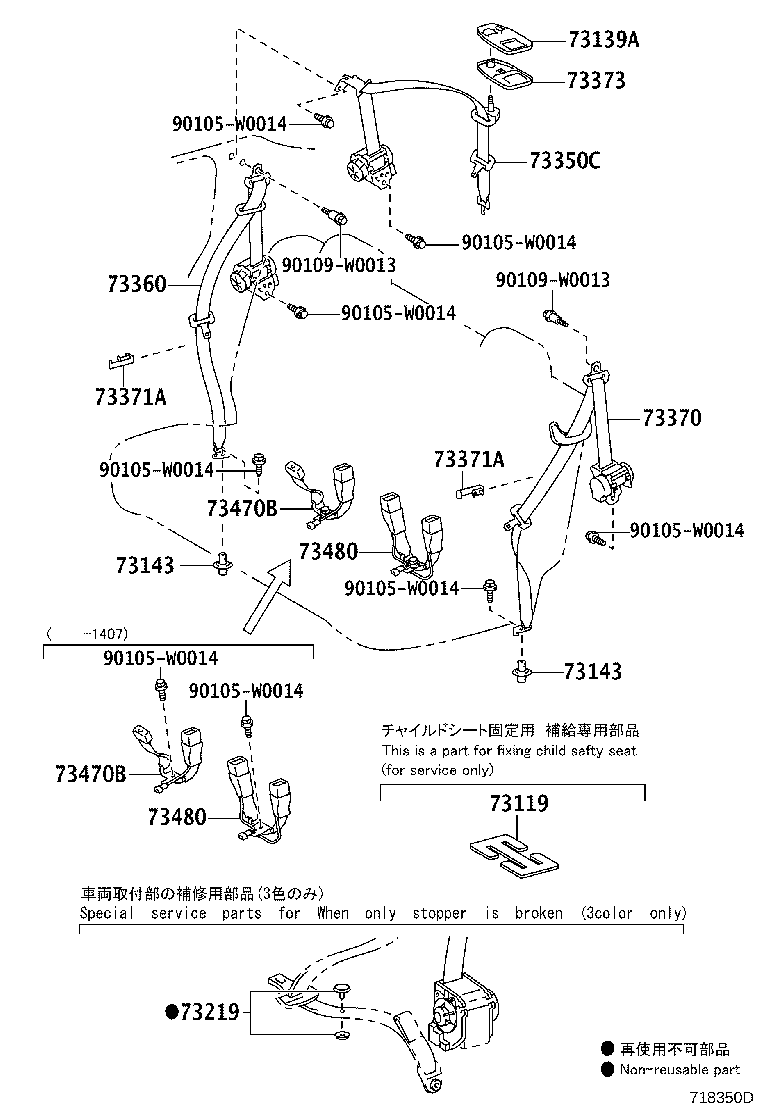

ILLUST NO. 2 OF 2(1305- )

Click highlighted areas on diagram

REAR

diagram 73119 73139A 73143 73143 73219 73350C 73360 73370 73371A 73371A 73373 73470B 73470B 73480 73480 90105W0014 90105W0014 90105W0014 90105W0014 90105W0014 90105W0014 90105W0014 90105W0014 90109W0013 90109W0013
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

NCP131

 1
73139A - COVER, SEAT BELT ANCHOR
73139-0D020B0

NCP131

LT.GRAY,TRIM1#

 1
73143 - SEAL, SEAT BELT HOLE
73143-52010

NCP131

 2
73143 - SEAL, SEAT BELT HOLE
73143-52010

NCP131

 2
73219 - STOPPER, TONGUE PLATE
73219-33020

NCP131

GRAY

 1
73219-33030

NCP131

BEIGE

 1
73219-33010

NCP131

BLACK

 1
73350C - BELT ASSY, REAR SEAT, OUTER CENTER
73310-52080C1

NCP131

BLACK,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-52340C2

NCP131

BLACK,TRIM1#

 1
73360-52340C1

NCP131

BLACK,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-52300C1

NCP131

BLACK,TRIM1#

 1
73370-52300C2

NCP131

BLACK,TRIM1#

 1
73371A - HANGER REAR SEAT SHOULDER BELT
73371-44020C0

NCP131

BLACK,TRIM1#

 2
73371A - HANGER REAR SEAT SHOULDER BELT
73371-44020C0

NCP131

BLACK,TRIM1#

 2
73373 - COVER, REAR SEAT SHOULDER BELT
73137-0D020B0

NCP131

LT.GRAY,TRIM1#

 1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-52430C1

NCP131

BLACK,TRIM1#

 1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-52430C1

NCP131

BLACK,TRIM1#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-52500C0

NCP131

BLACK,TRIM1#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-52500C0

NCP131

BLACK,TRIM1#

 1
Common parts
90105-W0014
90109-W0013

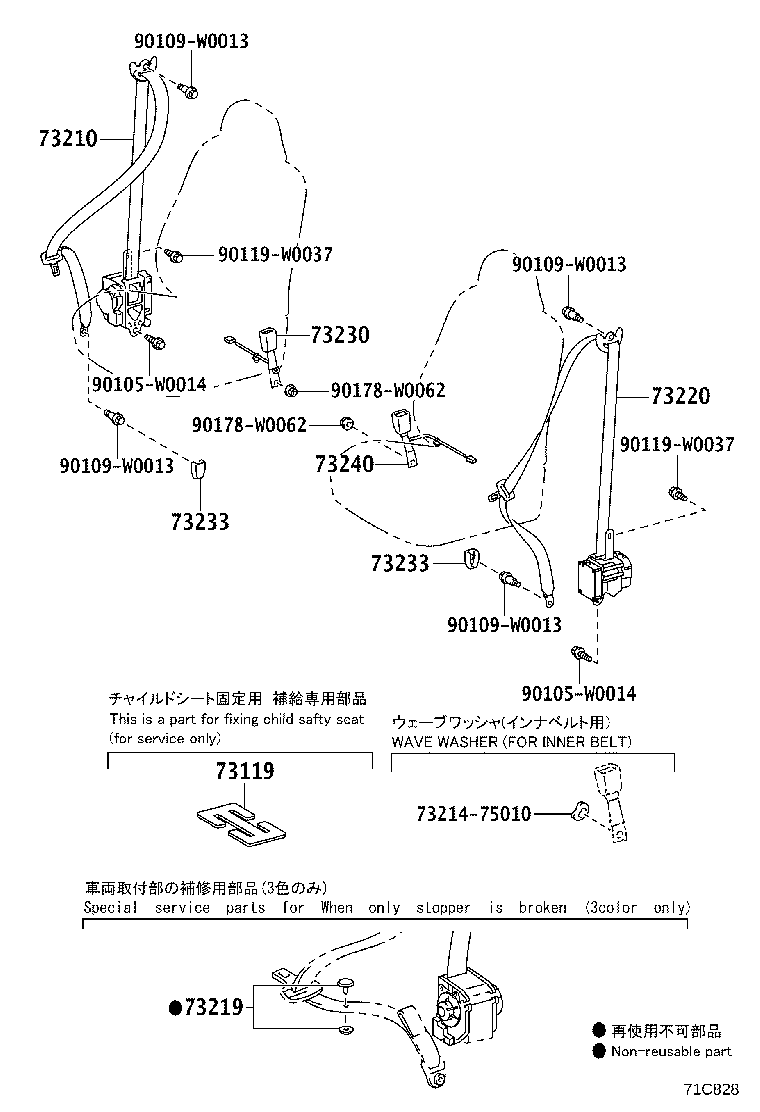

ILLUST NO. 1 OF 2(1305- )

Click highlighted areas on diagram

FRONT

diagram 73119 73210 7321475010 73219 73220 73230 73233 73233 73240 90105W0014 90105W0014 90109W0013 90109W0013 90109W0013 90109W0013 90119W0037 90119W0037 90178W0062 90178W0062
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

NCP131

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-52761C0

NCP131..5D

BLACK,TRIM1#

 1
73219 - STOPPER, TONGUE PLATE
73219-33020

NCP131

GRAY

 1
73219-33030

NCP131

BEIGE

 1
73219-33010

NCP131

BLACK

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-52761C0

NCP131..5D

BLACK,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-52870C0

NCP131

BLACK,TRIM1#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-02040C0

NCP131

BLACK,TRIM1#

 2
73233 - COVER, LAP BELT OUTER ANCHOR
73233-02040C0

NCP131

BLACK,TRIM1#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-52861C0

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

 1
73230-52881C0

NCP131..USA

BLACK,TRIM1#

 1
Common parts
73214-75010
90105-W0014
90109-W0013
90119-W0037
90178-W0062
