NCP131L-CHMRKA (2013)

Toyota Yaris (Frp)

Production May 2013 - Jul 2014
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1305- )

Click highlighted areas on diagram

CLIP

diagram 9046816019 9046818008
Part # Description Qty Price
Common parts
90468-16019
90468-18008

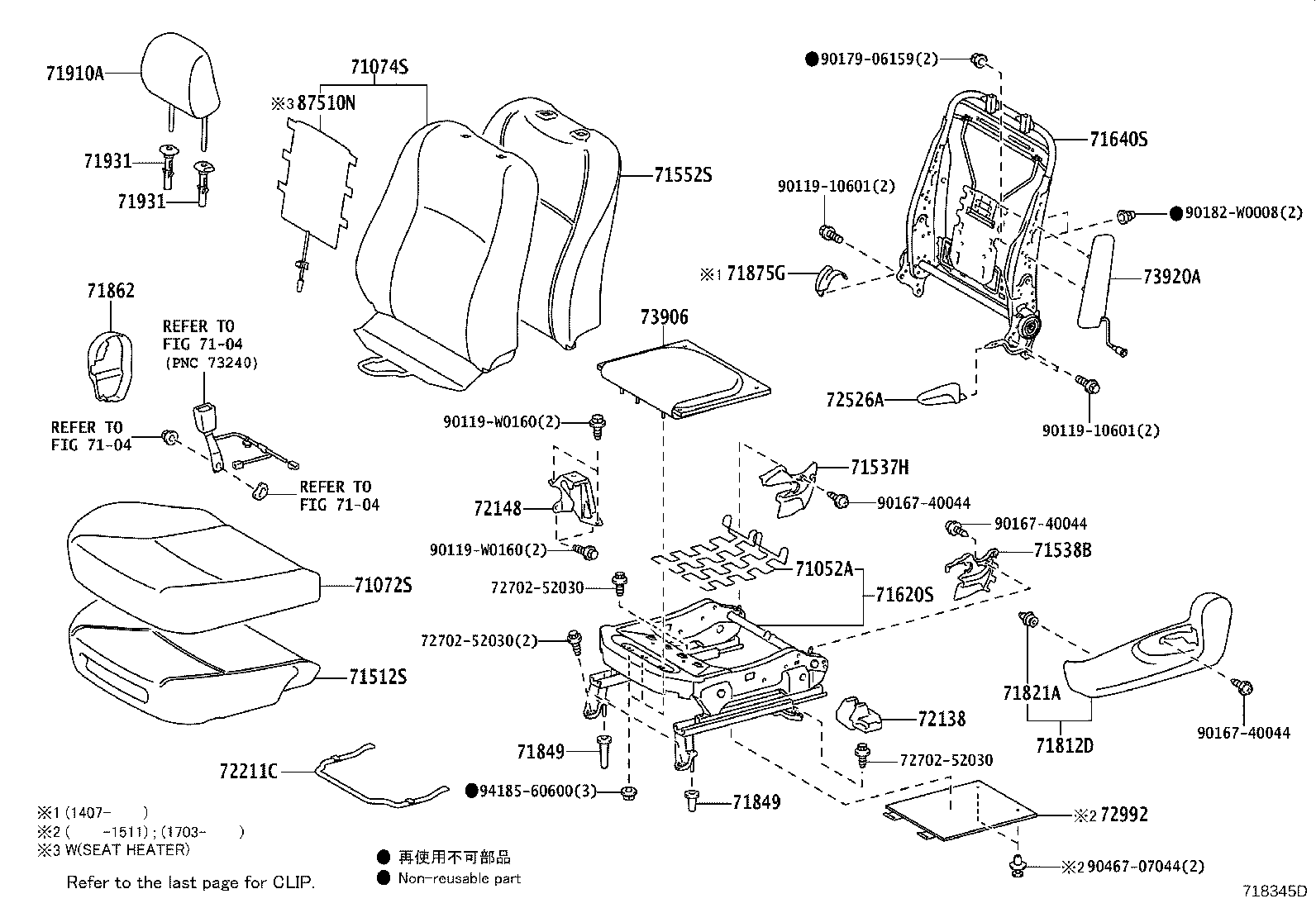

ILLUST NO. 1 OF 2(1305- )USA

Click highlighted areas on diagram

DRIVER SEAT,W/O(VERTICAL ADJUSTER)

diagram 7104 7104 7104 71052A 71072S 71074S 71512S 71537H 71538B 71552S 71620S 71640S 71812D 71821A 71849 71849 71862 71875G 71910A 71931 71931 72138 72148 72211C 72526A 7270252030 7270252030 7270252030 72992 73906 73920A 87510N 9011910601 9011910601 90119W0160 90119W0160 9016740044 9016740044 9016740044 9017906159 90182W0008 9046707044 9418560600
Part # Description Qty Price
71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71051-0D060

NCP131

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0DK90C0

NCP131..USA

BLACK,TRIM1#

 1
71072-0DL00C0

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-0D780C2

NCP131

BLACK,TRIM1#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-0D440

NCP131

 1
71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
71537-0D040C0

NCP131..USA

BLACK,TRIM1#

 1
71537-0D020C0

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

 1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71538-0D030C0

NCP131..USA

BLACK,TRIM1#

 1
71538-0D040C0

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-0D410

NCP131

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-0D350

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING)

 1
71620-0D390

NCP131..USA

 1
71620-0D380

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING)

 1
71620-0D341

NCP131..USA

 1
71620-0D351

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING)

 1
71620-0D340

NCP131..USA

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-0D280C0

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

 1
71640-0D310C0

NCP131..USA

BLACK,TRIM1#

 1
71640-0D290C0

NCP131..USA

BLACK,TRIM1#

 1
71640-0D300C0

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-0D180C0

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

 1
71812-0D200C0

NCP131..USA

BLACK,TRIM1#

 1
71821A - CLIP (FOR FRONT SEAT SIDE SHIELD)
71769-47020

NCP131

 2
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-0D040C0

NCP131

BLACK,TRIM1#,OUTER

 1
71848-0D050C0

NCP131

BLACK,TRIM1#,INNER

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-0D040C0

NCP131

BLACK,TRIM1#,OUTER

 1
71848-0D050C0

NCP131

BLACK,TRIM1#,INNER

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0D140C0

NCP131..USA

BLACK,TRIM1#

 1
71862-0D150C0

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0DD80C0

NCP131

BLACK,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020C0

NCP131

W/O(LOCK),BLACK,TRIM1#

 2
71930-47020C0

NCP131

W(LOCK),BLACK,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020C0

NCP131

W/O(LOCK),BLACK,TRIM1#

 2
71930-47020C0

NCP131

W(LOCK),BLACK,TRIM1#

 2
72138 - COVER, SEAT TRACK, OUTER LH
72138-0D070C0

NCP131

BLACK,TRIM1#

 1
72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH
72148-0D070

NCP131

 1
72211C - HANDLE, SEAT TRACK ADJUSTING
72211-52160

NCP131

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0D190C0

NCP131

BLACK,TRIM1#

 1
72992 - COVER, FRONT SEAT CUSHION, LH
72991-0D160

NCP131

 1
73906 - AIR BAG SUB-ASSY, FRONT SEAT, LH
73905-52020

NCP131

 1
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-52191

NCP131

 1
Common parts
72702-52030
90119-10601
90119-W0160
90167-40044
90179-06159
90182-W0008
90467-07044
94185-60600
Linked diagrams
7104

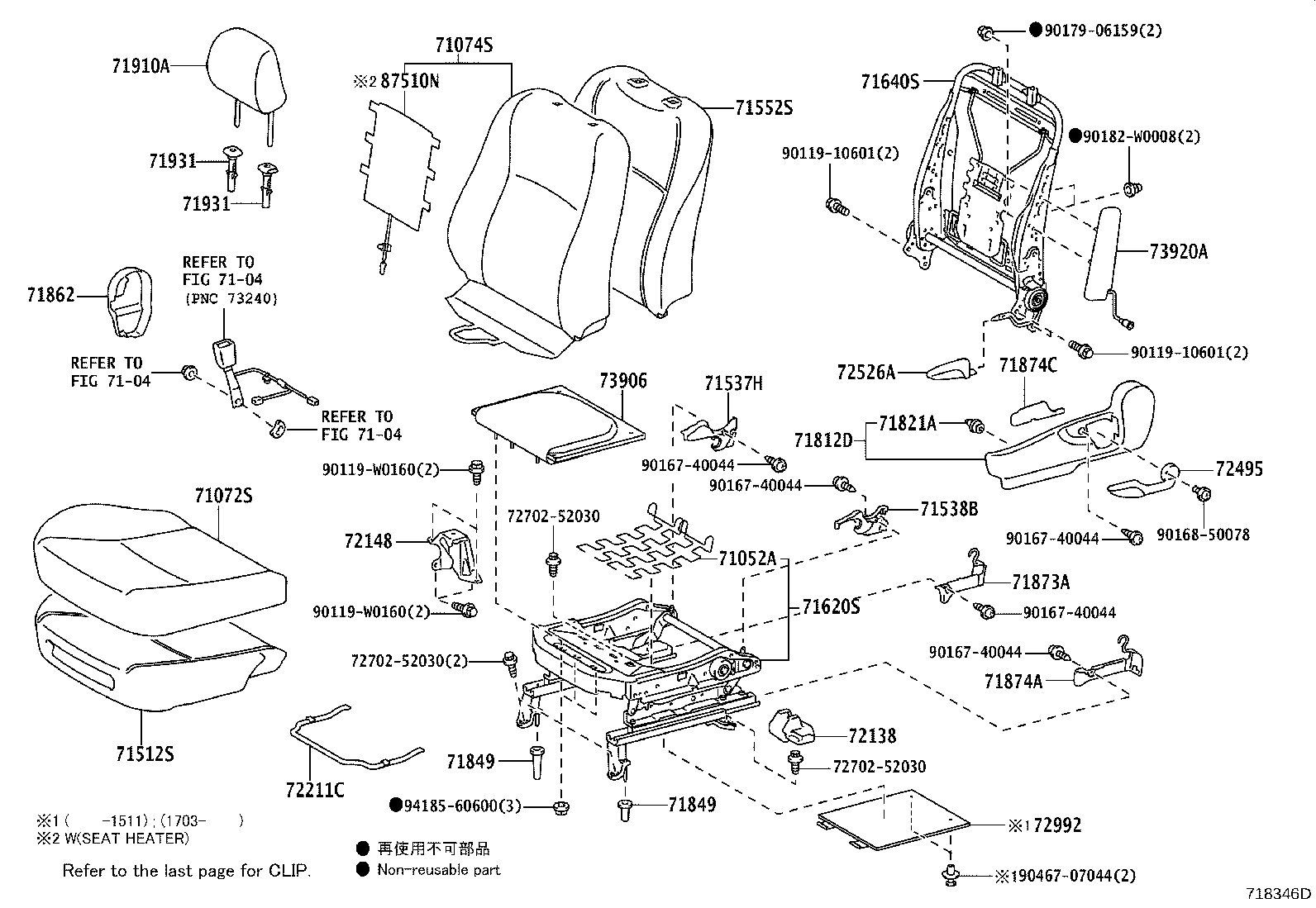

ILLUST NO. 1 OF 2(1305- )

Click highlighted areas on diagram

DRIVER SEAT,W(VERTICAL ADJUSTER)

diagram 7104 7104 7104 71052A 71072S 71074S 71512S 71537H 71538B 71552S 71620S 71640S 71812D 71821A 71849 71849 71862 71873A 71874A 71874C 71910A 71931 71931 72138 72148 72211C 72495 72526A 7270252030 7270252030 7270252030 72992 73906 73920A 87510N 9011910601 9011910601 90119W0160 90119W0160 9016740044 9016740044 9016740044 9016740044 9016740044 9016850078 9017906159 90182W0008 9046707044 9418560600
Part # Description Qty Price
71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71051-0D060

NCP131

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0DK90C0

NCP131..USA

BLACK,TRIM1#

 1
71072-0DL00C0

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-0D780C2

NCP131

BLACK,TRIM1#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-0D440

NCP131

 1
71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
71537-0D040C0

NCP131..USA

BLACK,TRIM1#

 1
71537-0D020C0

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

 1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71538-0D030C0

NCP131..USA

BLACK,TRIM1#

 1
71538-0D040C0

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-0D410

NCP131

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-0D350

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING)

 1
71620-0D390

NCP131..USA

 1
71620-0D380

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING)

 1
71620-0D341

NCP131..USA

 1
71620-0D351

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING)

 1
71620-0D340

NCP131..USA

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-0D280C0

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

 1
71640-0D310C0

NCP131..USA

BLACK,TRIM1#

 1
71640-0D290C0

NCP131..USA

BLACK,TRIM1#

 1
71640-0D300C0

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-0D180C0

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

 1
71812-0D200C0

NCP131..USA

BLACK,TRIM1#

 1
71821A - CLIP (FOR FRONT SEAT SIDE SHIELD)
71769-47020

NCP131

 2
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-0D040C0

NCP131

BLACK,TRIM1#,OUTER

 1
71848-0D050C0

NCP131

BLACK,TRIM1#,INNER

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-0D040C0

NCP131

BLACK,TRIM1#,OUTER

 1
71848-0D050C0

NCP131

BLACK,TRIM1#,INNER

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0D140C0

NCP131..USA

BLACK,TRIM1#

 1
71862-0D150C0

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

 1
71873A - SHIELD, FRONT SEAT CUSHION, LOWER
71873-52270

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING)

 1
71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-52290

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING)

 1
71874C - SHIELD, FRONT SEAT CUSHION, LOWER
71874-52280C0

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0DD80C0

NCP131

BLACK,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020C0

NCP131

W/O(LOCK),BLACK,TRIM1#

 2
71930-47020C0

NCP131

W(LOCK),BLACK,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020C0

NCP131

W/O(LOCK),BLACK,TRIM1#

 2
71930-47020C0

NCP131

W(LOCK),BLACK,TRIM1#

 2
72138 - COVER, SEAT TRACK, OUTER LH
72138-0D070C0

NCP131

BLACK,TRIM1#

 1
72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH
72148-0D070

NCP131

 1
72211C - HANDLE, SEAT TRACK ADJUSTING
72211-52160

NCP131

 1
72495 - HANDLE, VERTICAL ADJUSTING, LH
72495-0D010C0

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0D190C0

NCP131

BLACK,TRIM1#

 1
72992 - COVER, FRONT SEAT CUSHION, LH
72991-0D160

NCP131

 1
73906 - AIR BAG SUB-ASSY, FRONT SEAT, LH
73905-52020

NCP131

 1
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-52191

NCP131

 1
Common parts
72702-52030
90119-10601
90119-W0160
90167-40044
90168-50078
90179-06159
90182-W0008
90467-07044
94185-60600
Linked diagrams
7104

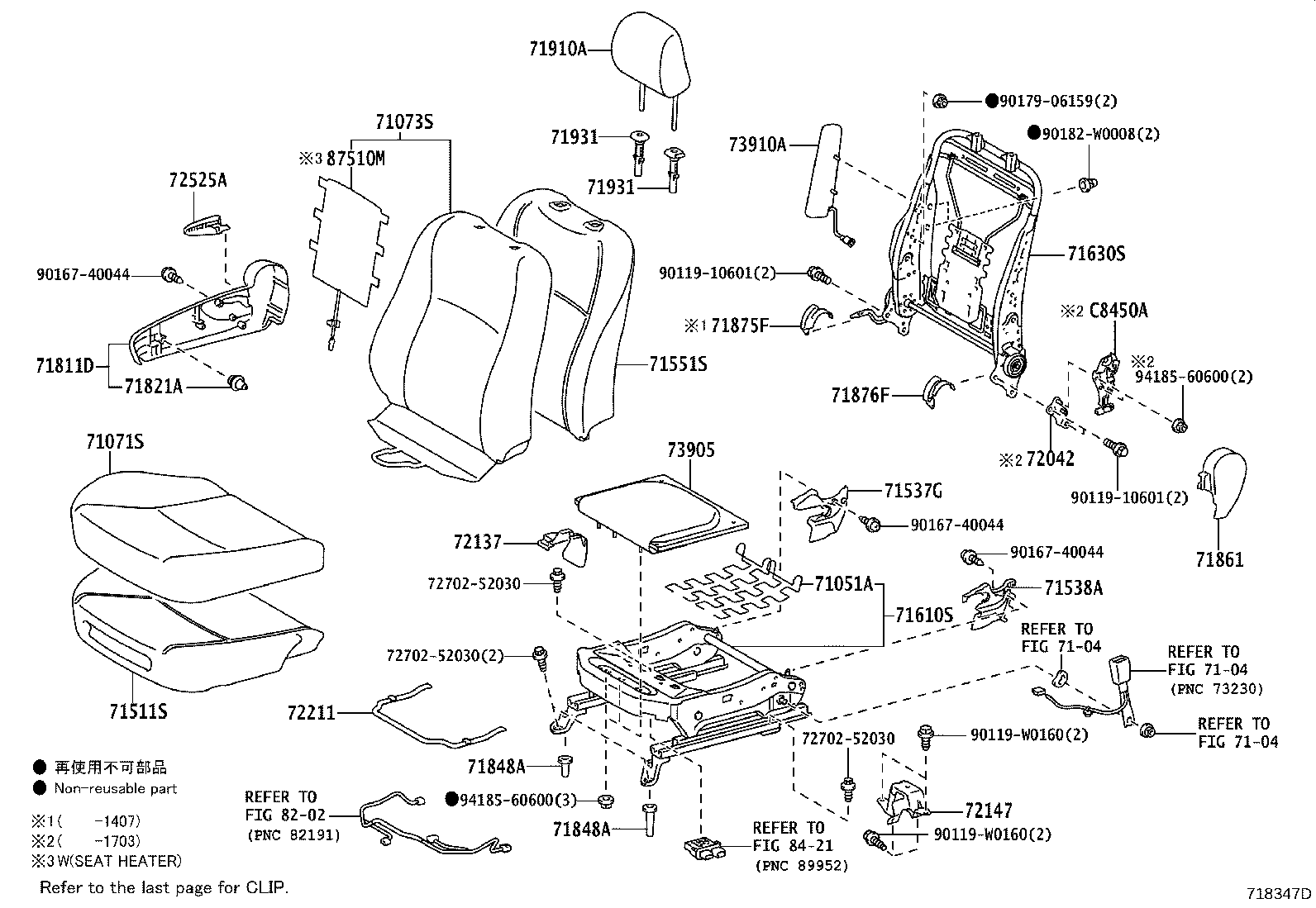

ILLUST NO. 2 OF 2(1305- )5D

Click highlighted areas on diagram

PASSENGER SEAT

diagram 7104 7104 7104 71051A 71071S 71073S 71511S 71537G 71538A 71551S 71610S 71630S 71811D 71821A 71848A 71848A 71861 71875F 71876F 71910A 71931 71931 72042 72137 72147 72211 72525A 7270252030 7270252030 7270252030 73905 73910A 8202 8421 87510M 9011910601 9011910601 90119W0160 90119W0160 9016740044 9016740044 9016740044 9017906159 90182W0008 9418560600 9418560600 C8450A
Part # Description Qty Price
71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71051-0D060

NCP131

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0DK50C0

NCP131

BLACK,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0DE00C1

NCP131..5D

BLACK,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-0D470

NCP131

 1
71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
71537-52110C0

NCP131

BLACK,TRIM1#

 1
71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
71538-52080C0

NCP131

BLACK,TRIM1#

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0D500

NCP131..5D

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-0D360

NCP131..5D

 1
71610-0D361

NCP131..5D

 1
71610-0D390

NCP131..5D

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-0D330C0

NCP131..5D

BLACK,TRIM1#

 1
71630-0D320C0

NCP131..5D

BLACK,TRIM1#

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-52340C0

NCP131

BLACK,TRIM1#

 1
71821A - CLIP (FOR FRONT SEAT SIDE SHIELD)
71769-47020

NCP131

 2
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-0D040C0

NCP131

BLACK,TRIM1#,OUTER

 1
71848-0D050C0

NCP131

BLACK,TRIM1#,INNER

 1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-0D040C0

NCP131

BLACK,TRIM1#,OUTER

 1
71848-0D050C0

NCP131

BLACK,TRIM1#,INNER

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-52300C0

NCP131

BLACK,TRIM1#

 1
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-0D200C0

NCP131

BLACK,TRIM1#

 1
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-0D200C0

NCP131

BLACK,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0DD80C0

NCP131

BLACK,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020C0

NCP131

W/O(LOCK),BLACK,TRIM1#

 2
71930-47020C0

NCP131

W(LOCK),BLACK,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020C0

NCP131

W/O(LOCK),BLACK,TRIM1#

 2
71930-47020C0

NCP131

W(LOCK),BLACK,TRIM1#

 2
72042 - BRACKET SUB-ASSY, VERTICAL ADJUSTER, INNER
72431-52010

NCP131

 1
72137 - COVER, SEAT TRACK, OUTER RH
72137-0D110C0

NCP131

BLACK,TRIM1#

 1
72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH
72147-0D060

NCP131

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-52160

NCP131..5D

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0D180C0

NCP131

BLACK,TRIM1#

 1
73905 - AIR BAG SUB-ASSY, FRONT SEAT, RH
73905-52020

NCP131

 1
73910A - AIR BAG ASSY, FRONT SEAT, RH
73910-52191

NCP131

 1
C8450A - SWITCH ASSY, LIMIT, NO.1
84750-52020

NCP131

 1
Common parts
72702-52030
90119-10601
90119-W0160
90167-40044
90179-06159
90182-W0008
94185-60600
Linked diagrams
7104
8202
8421
