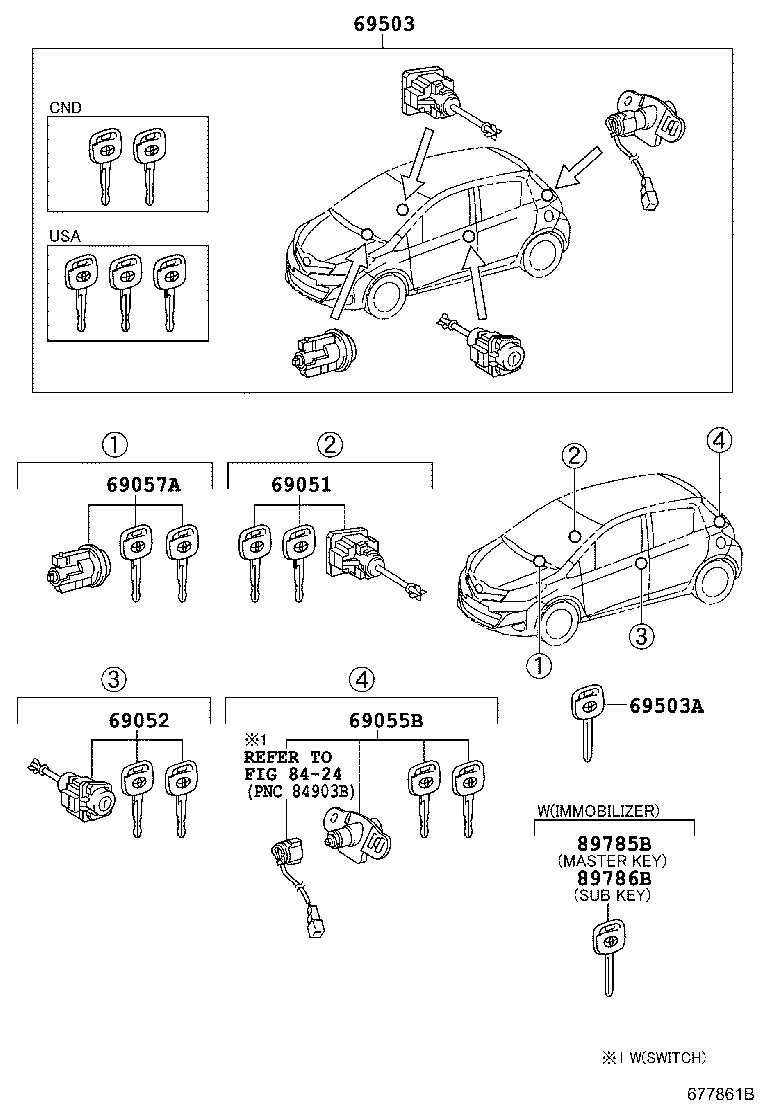

NCP131L-CHMRKA (2013)
Toyota Yaris (Frp)
(1305- )
W/O(WIRELESS DOOR LOCK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-22380 |
NCP131 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-52380 |
NCP131 |
1 | ||
| 69055B - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-52500 |
NCP131 |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-52530 |
NCP131..USA |
1 | ||
| 69057-52850 |
NCP131..USA PUERTO RICO SPEC&ANTI-THEFT SYSTEM-WITH(ALARM)&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER) |
1 | ||
| 69057-35240 |
NCP131..5D..USA ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT & REAR) |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-52L40 |
NCP131..USA |
1 | ||
| 69005-52L60 |
NCP131..USA PUERTO RICO SPEC&ANTI-THEFT SYSTEM-WITH(ALARM)&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER) |
1 | ||
| 69005-52L20 |
NCP131..5D..USA ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT & REAR) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00199 |
NCP131..USA MASTER KEY,W(*68) |
1 | ||
| Linked diagrams | ||||
| 8424 | ||||

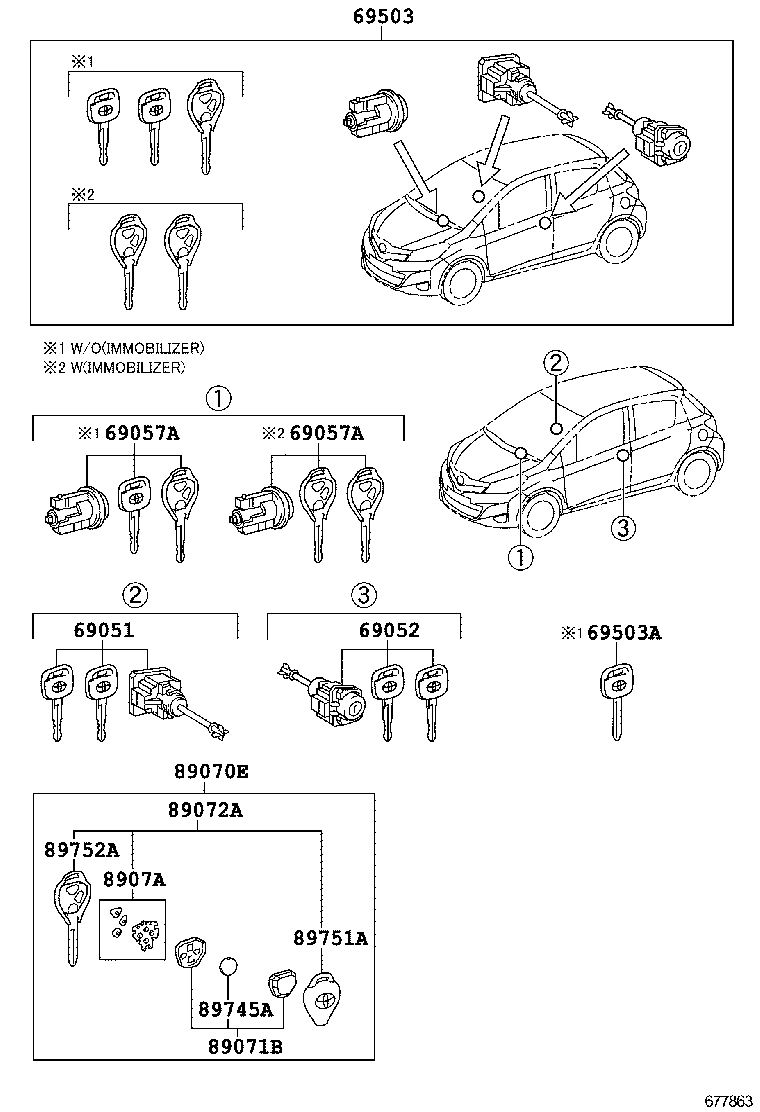

(1305-1407)USA
W(WIRELESS DOOR LOCK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-22380 |
NCP131 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-52380 |
NCP131 |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-52530 |
NCP131..USA |
1 | ||
| 69057-52850 |
NCP131..USA PUERTO RICO SPEC&ANTI-THEFT SYSTEM-WITH(ALARM)&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER) |
1 | ||
| 69057-35240 |
NCP131..5D..USA ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT & REAR) |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-52530 |
NCP131..USA |
1 | ||
| 69057-52850 |
NCP131..USA PUERTO RICO SPEC&ANTI-THEFT SYSTEM-WITH(ALARM)&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER) |
1 | ||
| 69057-35240 |
NCP131..5D..USA ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT & REAR) |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-52L40 |
NCP131..USA |
1 | ||
| 69005-52L60 |
NCP131..USA PUERTO RICO SPEC&ANTI-THEFT SYSTEM-WITH(ALARM)&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER) |
1 | ||
| 69005-52L20 |
NCP131..5D..USA ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT & REAR) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00199 |
NCP131..USA MASTER KEY,W(*68) |
1 | ||
| 89070E - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-35170 |
NCP131..5D..USA ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT & REAR) |
1 | ||
| 89070-52A10 |
NCP131..USA PUERTO RICO SPEC&ANTI-THEFT SYSTEM-WITH(ALARM)&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER) |
1 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-35080 |
NCP131..5D..USA ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT & REAR) |
2 | ||
| 89071-35080 |
NCP131..USA PUERTO RICO SPEC&ANTI-THEFT SYSTEM-WITH(ALARM)&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER) |
1 | ||
| 89072A - HOUSING SET, DOOR CONTROL TRANSMITTER | ||||
| 89072-52680 |
NCP131..USA PUERTO RICO SPEC&ANTI-THEFT SYSTEM-WITH(ALARM)&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER) |
1 | ||
| 89072-35060 |
NCP131..5D..USA ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT & REAR) |
1 | ||
| 8907A - SWITCH SET, TRANSMITTER | ||||
| 8907A-12010 |
NCP131..5D..USA ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT & REAR) |
2 | ||
| 8907A-12010 |
NCP131..USA PUERTO RICO SPEC&ANTI-THEFT SYSTEM-WITH(ALARM)&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER) |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-48030 |
NCP131..USA CR2016,PUERTO RICO SPEC&ANTI-THEFT SYSTEM-WITH(ALARM)&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER) |
1 | ||
| 89745-48030 |
NCP131..5D..USA CR2016,ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT & REAR) |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-35060 |
NCP131..5D..USA ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT & REAR) |
2 | ||
| 89751-35060 |
NCP131..USA PUERTO RICO SPEC&ANTI-THEFT SYSTEM-WITH(ALARM)&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER) |
1 | ||
| 89752A - CASE, TRANSMITTER HOUSING | ||||
| 89752-71080 |
NCP131..USA PUERTO RICO SPEC&ANTI-THEFT SYSTEM-WITH(ALARM)&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER) |
1 | ||
| 89752-68060 |
NCP131..5D..USA ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT & REAR) |
1 | ||
